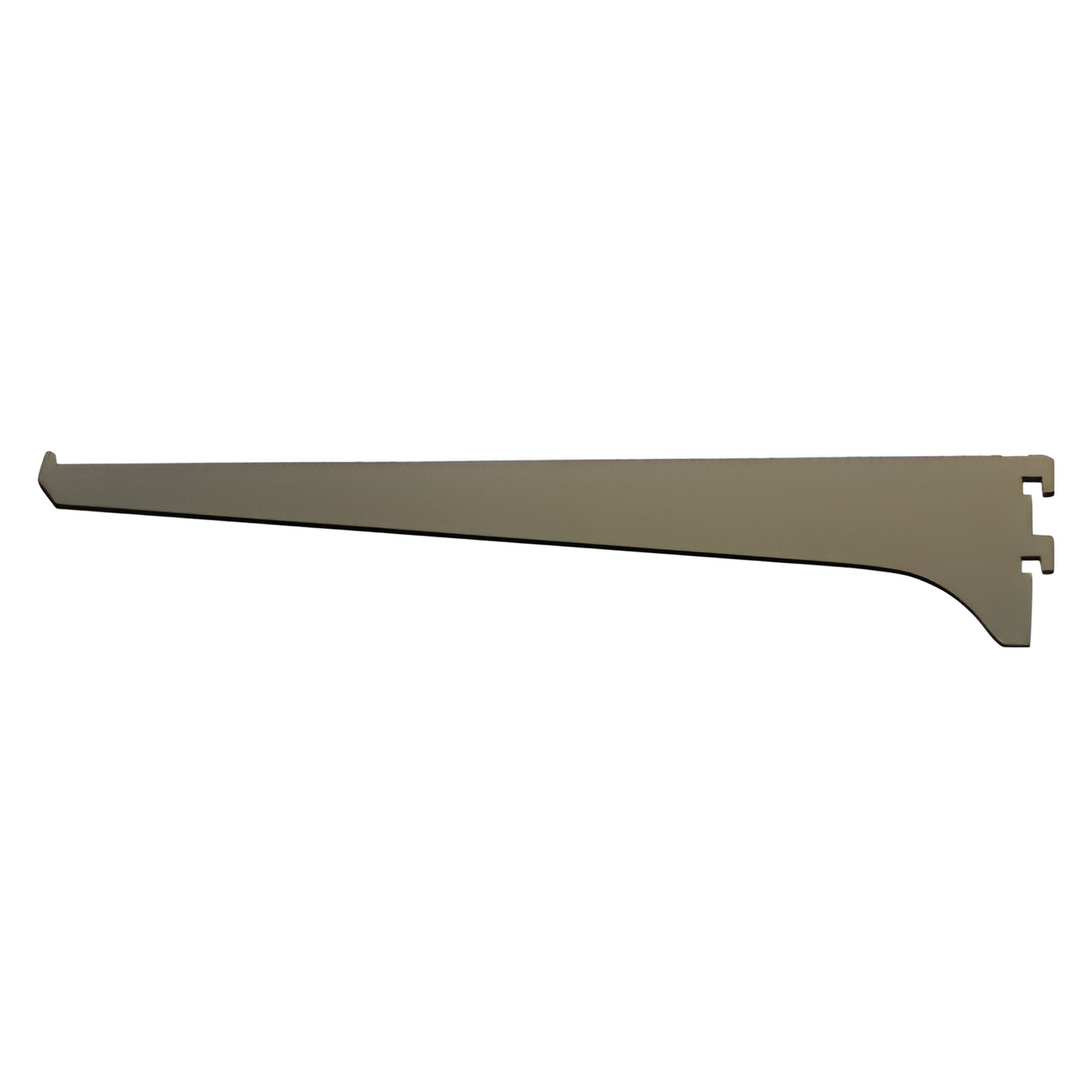

CRL 12-inch Aluminum Mounting Bracket - Duranodic Bronze

• Available in several finishes
• Available in five finishes and five lengths: 4", 6", 8", 10", and 12" (102, 152, 203, 254, and 305 mm)
• Fits CRL Series 22 and Series 322 aluminum standards

CRL Aluminum Brackets (SKU 122DU12) are precision shelf brackets designed to slip into the hidden slots of Series 22 and Series 322 aluminum standards. These hidden-slot, no-back-flange aluminum brackets install by sliding into the standard and securing with a light tap, creating a clean, low-profile support ideal for adjustable shelving and display systems. Available in multiple finishes and five lengths to match your design and load requirements.

Aluminum bracket weight capacities (based on two CRL standards mounted 16" / 406 mm apart with screws into wall studs):
4" (102 mm) — 75 lbs (34 kg)
6" (152 mm) — 65 lbs (29 kg)
8" (203 mm) — 55 lbs (25 kg)
10" (254 mm) — 45 lbs (20 kg)
12" (305 mm) — 35 lbs (16 kg)

Compatibility note / Product warning:
These aluminum brackets are specifically made for CRL Series 22 and 322 aluminum standards and are not interchangeable with steel standards or bracket systems from other manufacturers. Use only with compatible CRL aluminum standards to ensure safe installation and rated load capacity.


Contact CRL Customer Service to confirm finish availability or get installation guidance.
