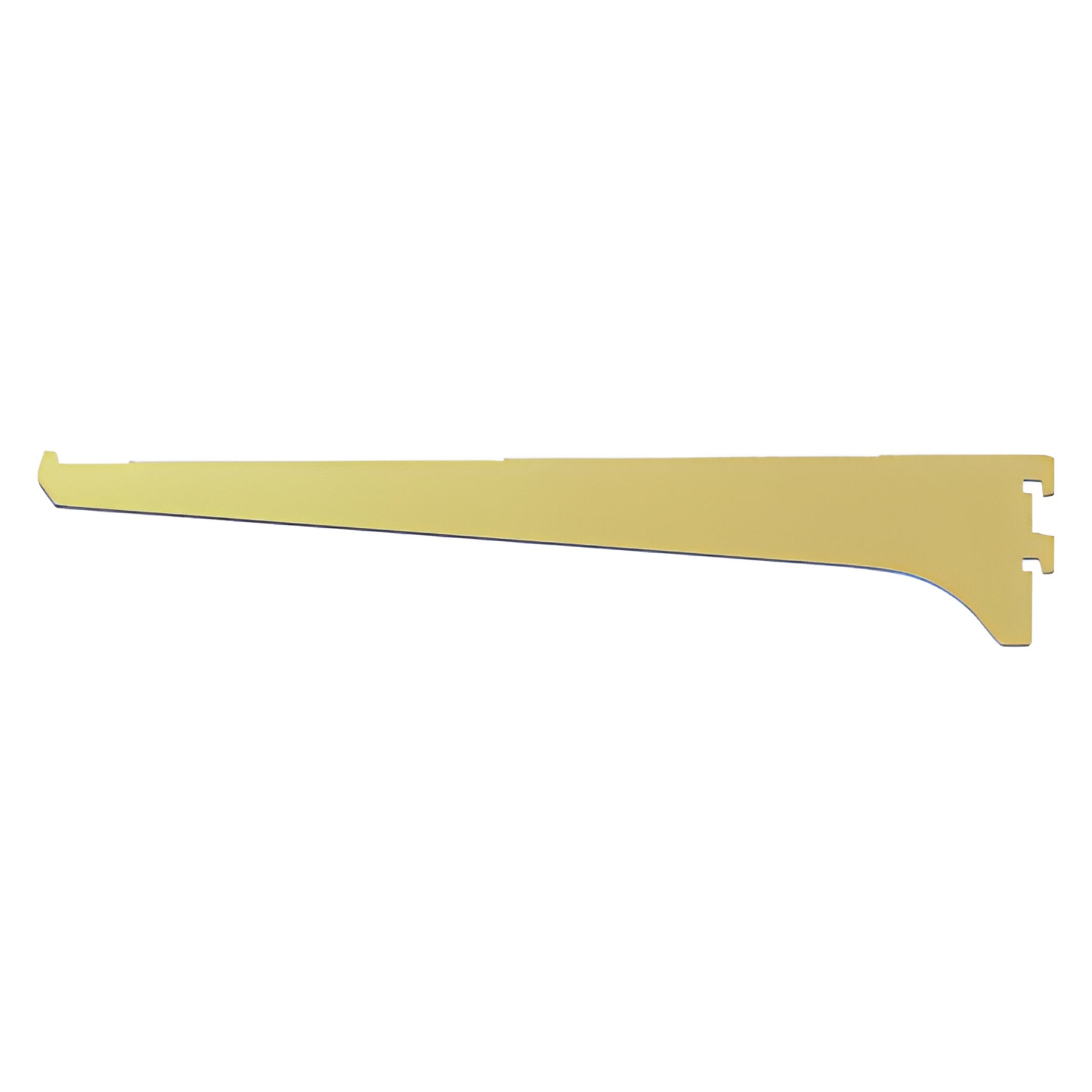

CRL Gold Anodized 12" Aluminum Bracket

• SKU: 122GA12 — CRL Aluminum Shelf Bracket (hidden-slot design)
• Available in five finishes and five lengths: 4", 6", 8", 10", and 12" (102, 152, 203, 254, and 305 mm)
• Compatible only with CRL Series 22 and Series 322 aluminum standards

CRL Aluminum Brackets feature a hidden-slot, no-back-flange design that slips into Series 22 and 322 aluminum standards and is secured by tapping the bracket into place. These concealed aluminum shelf brackets are ideal for a clean, modern floating-shelf look and are sold in multiple finishes and sizes.


Aluminum Bracket Weight Capacities (based on two Series 22/322 standards mounted 16" (406 mm) apart with screws into wall studs):

4" (102 mm) = 75 lbs (34 kg)
6" (152 mm) = 65 lbs (29 kg)
8" (203 mm) = 55 lbs (25 kg)
10" (254 mm) = 45 lbs (20 kg)
12" (305 mm) = 35 lbs (16 kg)


Important Compatibility & Installation Notes:

These aluminum brackets are not interchangeable with steel standards or bracket systems from other manufacturers. Deduct 1/16" from the depth of glass shelves when using aluminum brackets to ensure proper fit.

Order SKU 122GA12 now to get concealed aluminum shelf brackets in your chosen finish and length.
