CRL Duranodic Bronze Anodized Aluminum Exterior Glazed Vision Window

• Narrow inset frame vision window—ideal above built-in exchange/transaction drawers in walk-up installations
• Drawings and specifications available online

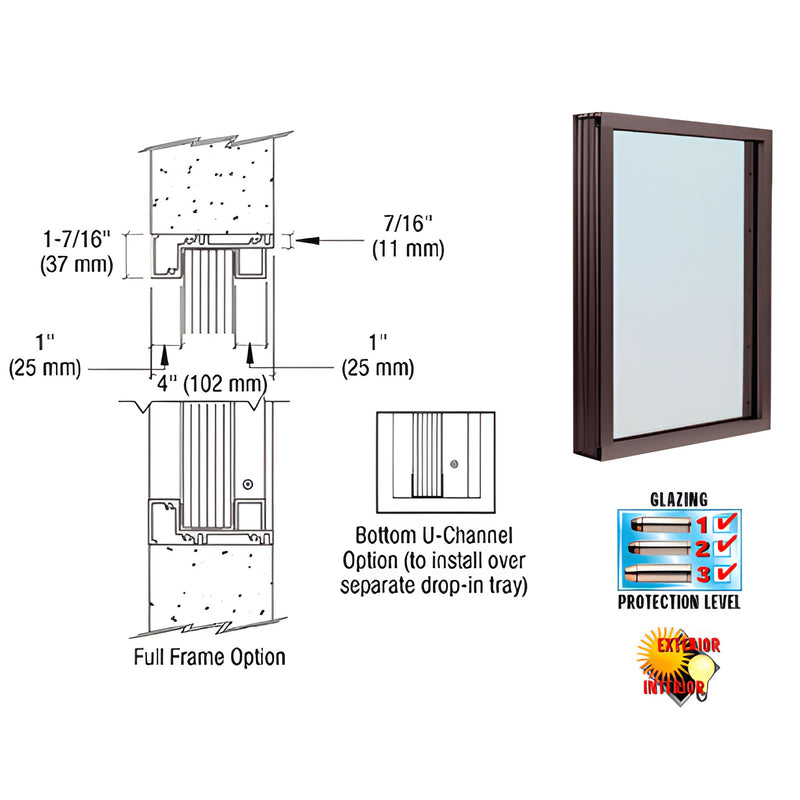

CRL Narrow Inset Frame Vision Windows (SKU: N1VEDU) are engineered for walls 4" (102 mm) or thicker. The four-sided uniform frame permanently seals selected glazing for a weathertight installation, providing a clean, low-profile sightline for walk-up service applications. Common uses: sidelites in multi-lite exchange windows, above built-in transaction drawers or package receivers, and retrofit installations that require a narrow inset frame. Installer affixes the frame to the wall opening and seals glazing with included glazing tape. Optional U-channel under glazing available to enable access to Drop-In Deal Trays—useful for service counters and secure exchange windows.

Key differentiators:

• Designed specifically for built-in exchange/transaction drawer openings and walk-up service counters
• Weathertight, sealed glazing for durability and reduced maintenance
• Multiple glazing security levels and material options to match application needs

SPECIFICATIONS:
Materials (glazing options): 1/4" (6 mm) Glass; 1-3/16" (30 mm) Level 1 Glass; 1-1/4" (32 mm) Level 1 Acrylic; 3/4" (19 mm) Level 1 Lexgard®; 1-3/8" (35 mm) Level 2 Glass; 1-3/8" (35 mm) Level 2 Acrylic with abrasion-resistant coating; 1" (25 mm) Level 2 Lexgard®; 1-11/16" (43 mm) Level 3 Glass; 1-3/16" (30 mm) Level 3 Glass-Clad Polycarbonate; 1-1/4" (32 mm) Level 3 Lexgard®.
Finishes: Frame finishes: Satin Anodized, Duranodic Bronze, RAL powder paint colors, or custom KYNAR® paint colors.
Instructions included.

Need assistance selecting glazing or finish for your walk-up transaction window? Contact CRL or view online drawings and specifications to get started.
