CRL Duranodic Bronze Sliding Door Track D603/D601 w/ Nylon Wheels

• D2301 Series
• With D650 Nylon Wheels
• Ideal for commercial or residential sliding glass door applications
• Designed for quick and easy installation
• Available in up to six stock finishes, including new brushed nickel
• 12' (3.66 m) length

CRL's 12' (3.66 m) Deluxe Rolling Track Assemblies (SKU D2301DU) are a popular, user-friendly rolling track system for sliding glass doors. Choose from three upper track extrusion options to match your design. Built for frequent use, these rolling track assemblies offer smooth operation and long-term reliability. Multiple finish options are available, and the assembly is compatible with CRL Ratchet and Plunger type locks for added door security. For dry glazing with 1/4" (6 mm) glass, use Cat. No. GC728C vinyl (sold separately).

NOTE: Maximum suggested panel size is 36" W x 48" H (914 mm x 1.22 m).

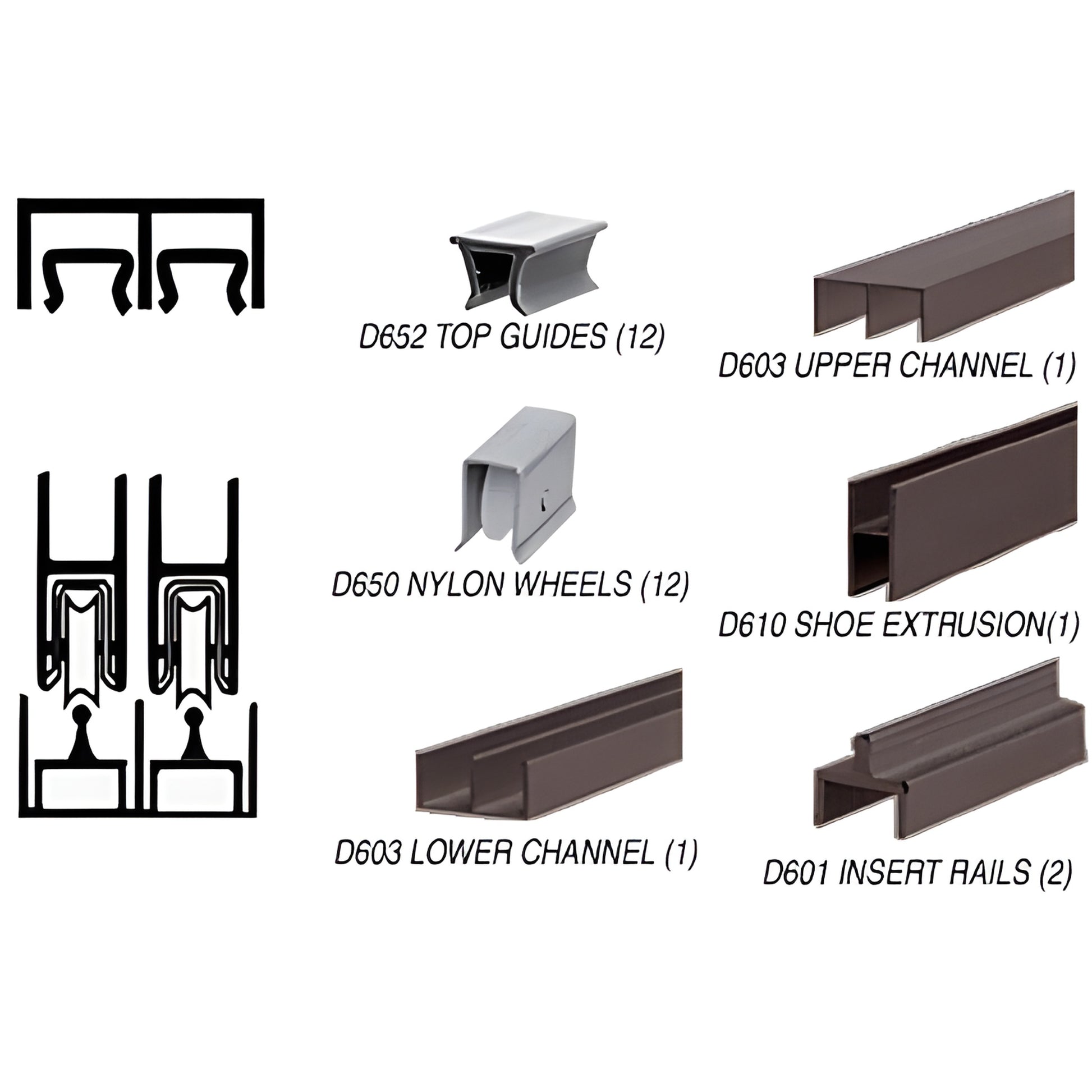

Components for D2301DU

D601 (x2)
D603 (x2)
D610 (x1)
D650 (x12)
D652 (x12)
D9650 (x1)


Product Warning:

Stock lengths must ship common carrier unless specifically cut for UPS shipment.

If you need a very tight fit, calculate your own final dimensions. The dimensions shown are guideline dimensions satisfactory to most installers.

Rolling Track Glass Height Guidelines:
D2200 Series: Glass Height = Opening Minus 1-5/16"
D2203 Series: Glass Height = Opening Minus 1-1/8"
D2204 Series: Glass Height = Opening Minus 1-1/8"
D2300 Series: Glass Height = Opening Minus 1-3/8"
D2301 Series: Glass Height = Opening Minus 1-3/8"
D2303 Series: Glass Height = Opening Minus 1-3/8"
D2305 Series: Glass Height = Opening Minus 1-3/8"
D2306 Series: Glass Height = Opening Minus 1-5/8"
D2307 Series: Glass Height = Opening Minus 1-5/8"

For a dependable 12' deluxe rolling track assembly for sliding glass doors (D2301DU) with nylon wheels and multiple finish options, order now or contact
