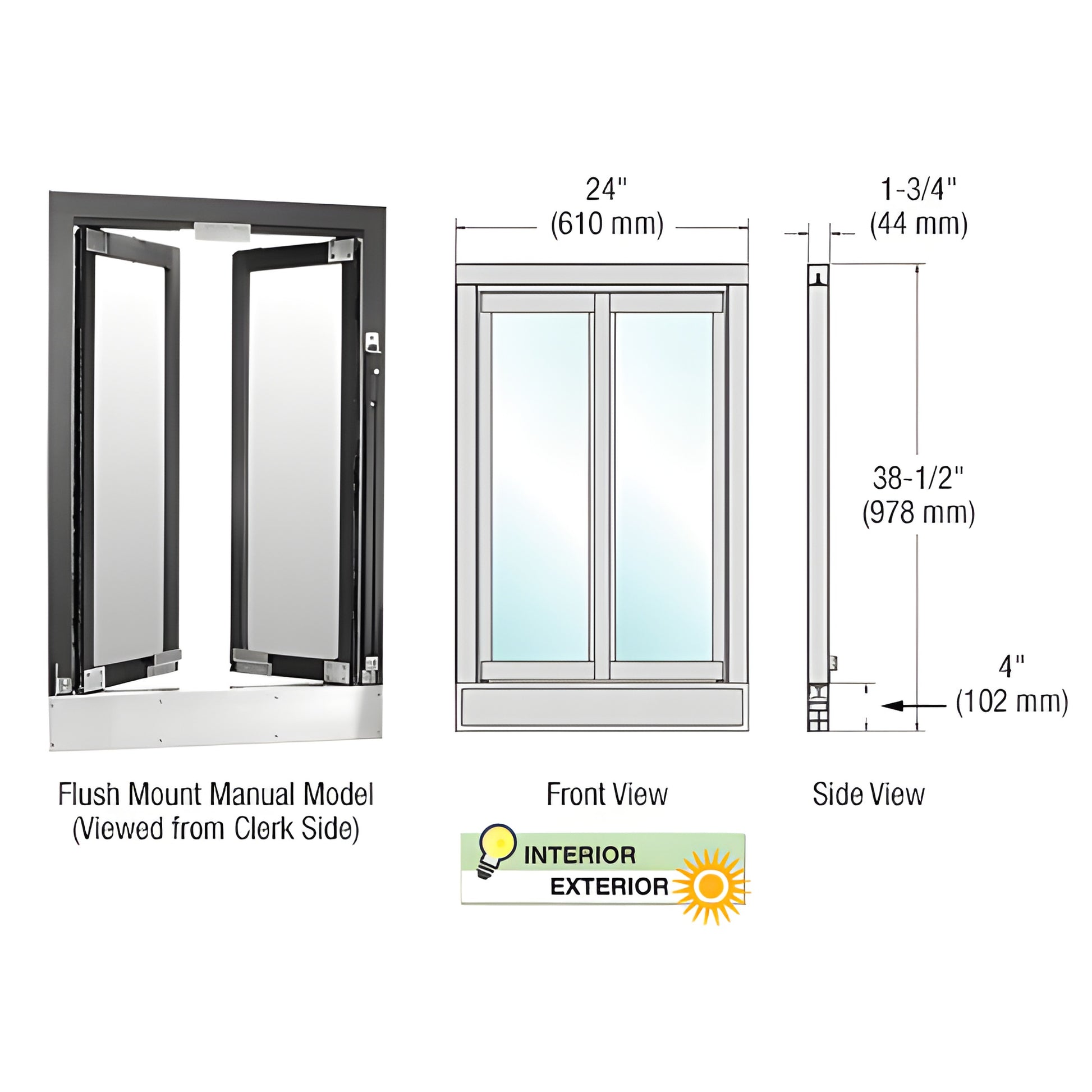

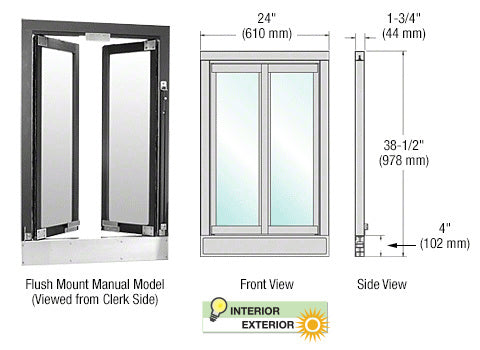

CRL Duranodic Bronze Bi-Fold Service Window - Manual Flush Mount

• Select manual or semi-automatic bi-fold operation
• Available in stock sizes or custom sizes and finishes (special order)
• Drawings, specifications, and SKU BFW1DU available on request

CRL Bi-Fold Service Windows (SKU BFW1DU) deliver a durable, secure service window solution for concession stands, ticket counters, retail counters, and other customer-facing openings. Key differentiators include simultaneous two-panel outward opening, integrated burglar bar for added security, and choice of Projected or Flush Mount installations in multiple configurations.

MANUAL - Either panel can be actuated manually; both panels move simultaneously for fast, reliable operation.

SEMI-AUTOMATIC - Push the hip-activated slide bar to open; step away and the panels automatically close for hands-free convenience. Custom sizes and paint finishes available by special order. For drawings, specification sheets, or to request a quote, contact the CRL Technical Sales Department.

NOTE: Manual models can be ordered with a pivot mechanism at the header to provide a clear counter opening (counter by others).

SPECIFICATIONS:
Materials: Aluminum extrusions, pile weatherstrip, glazing vinyl; stainless steel shelf or stainless steel sill
Glazing: 1/4" (6 mm) clear tempered glass
Stock Finishes: Satin anodized or bronze anodized
Bi-Fold Configuration: Manual (semi-automatic option available)
To Determine Rough Opening: Add 1/2" (12 mm) to Width, 1/4" (6 mm) to Height

Need CAD drawings, a custom finish, or a quote for SKU BFW1DU? Contact CRL Sales to get started.
