CRL Duranodic Bronze Sliding Door Track D603/D602 w/ Ball Bearings

• D2203 Series
• Includes D649 Ball Bearing Wheels
• Excellent choice for display cases and retail cabinets
• Two styles of upper channel available
• Available in up to six finishes
• 12' (3.66 m) length

CRL's 12' (3.66 m) Low Profile Rolling Track Assemblies (SKU: D2203DUBB) are packaged with the extrusions, wheels, and guides needed to complete custom projects. Designed for 1/4" (6 mm) tempered glass doors, this low profile rolling track is ideal for display cases, trophy cases, china cabinets, and retail showcases. Choose Nylon or Steel ball bearing D649 wheels for years of smooth, reliable service. System versatility allows design flexibility; optional locking hardware is available. For dry glazing with 1/4" (6 mm) glass use Cat. No. GC728C vinyl (sold separately).

NOTE: Maximum suggested panel size: 36" W x 48" H (914 mm x 1.22 m).

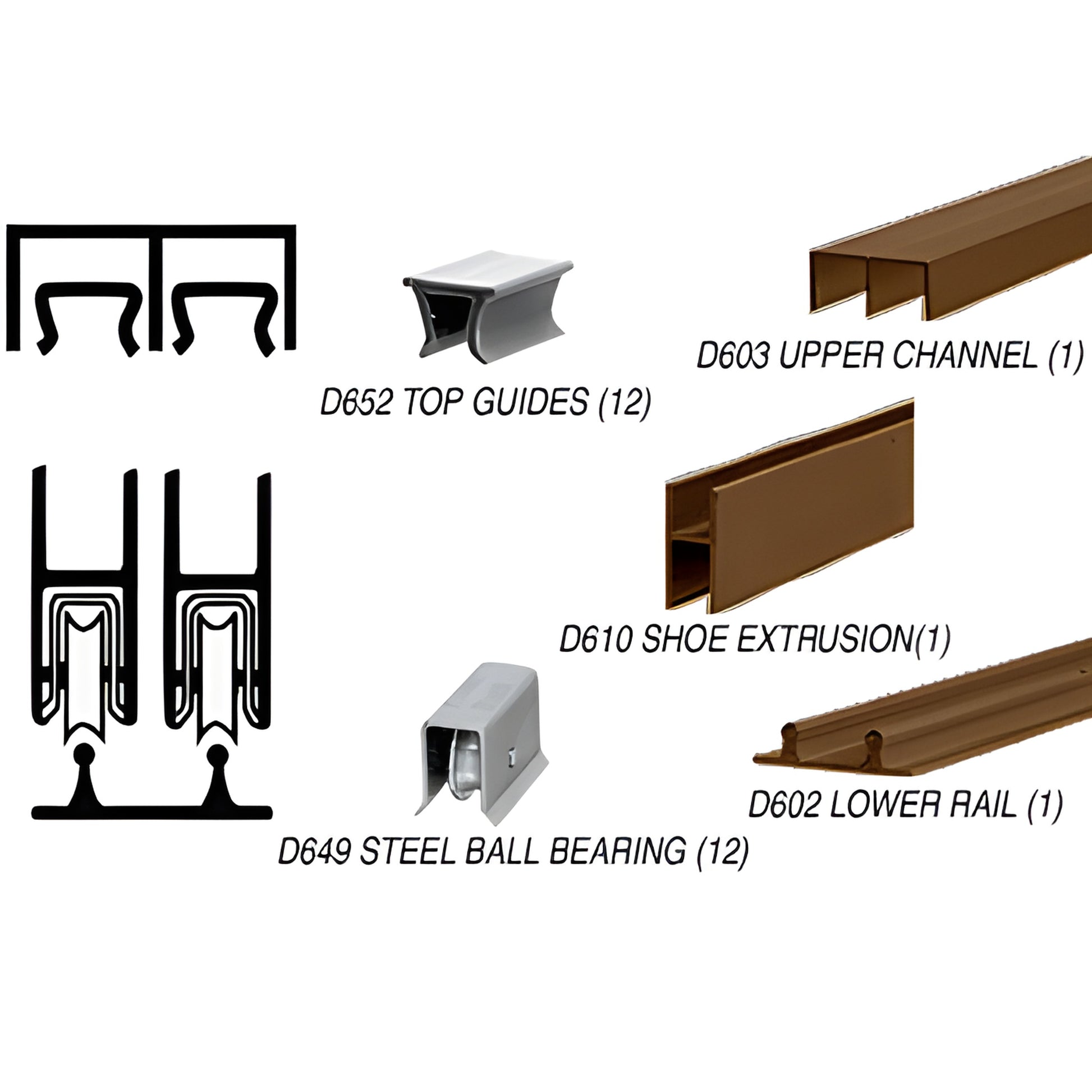

Components for D2203ABB

• D602 (x1)
• D603 (x1)
• D649 (x12)
• D610 (x1)
• D652 (x12)
• D9650 (x1)

Product Warning:

Stock lengths must ship common carrier unless specifically cut for UPS shipment. If you need a very tight fit, calculate your own dimensions; shown dimensions are guideline dimensions satisfactory to most installers.

Glass height guidance by series:

• D2203 Series = Opening Minus 1-1/8"
• D2204 Series = Opening Minus 1-1/8"
• D2300 Series = Opening Minus 1-3/8"
• D2301 Series = Opening Minus 1-3/8"
• D2303 Series = Opening Minus 1-3/8"
• D2305 Series = Opening Minus 1-3/8"
• D2306 Series = Opening Minus 1-5/8"
• D2307 Series = Opening Minus 1-5/8"

For smooth glass sliding functionality in display cases and retail cabinets, choose the D2203 low profile rolling track assembly. Contact us to order or request a custom cut.
