CRL Flat Black Replacement Sliding Track D603/D601 with Nylon Wheels

• D2301 Series
• With D650 Nylon Wheels for smooth, quiet operation
• Ideal for commercial and residential sliding door applications
• Designed for quick, easy installation
• Available in up to six stock finishes, including new Brushed Nickel
• 12' (3.66 m) length — long-span rolling track for larger openings

CRL's 12' (3.66 m) Deluxe Rolling Track Assemblies (SKU: D2301BL) offer three upper track extrusion options so you can match profile and finish to your design. Built for frequent use, this commercial sliding door track assembly combines durable construction with D650 nylon wheels for years of reliable, low-noise operation. Multiple finish choices and available CRL ratchet and plunger locks make this one of our most popular, user-friendly rolling track systems. For dry glazing with 1/4" (6 mm) glass use Cat. No. GC728C vinyl (sold separately).

NOTE: Maximum suggested panel size is 36" W x 48" H (914 mm x 1.22 m).

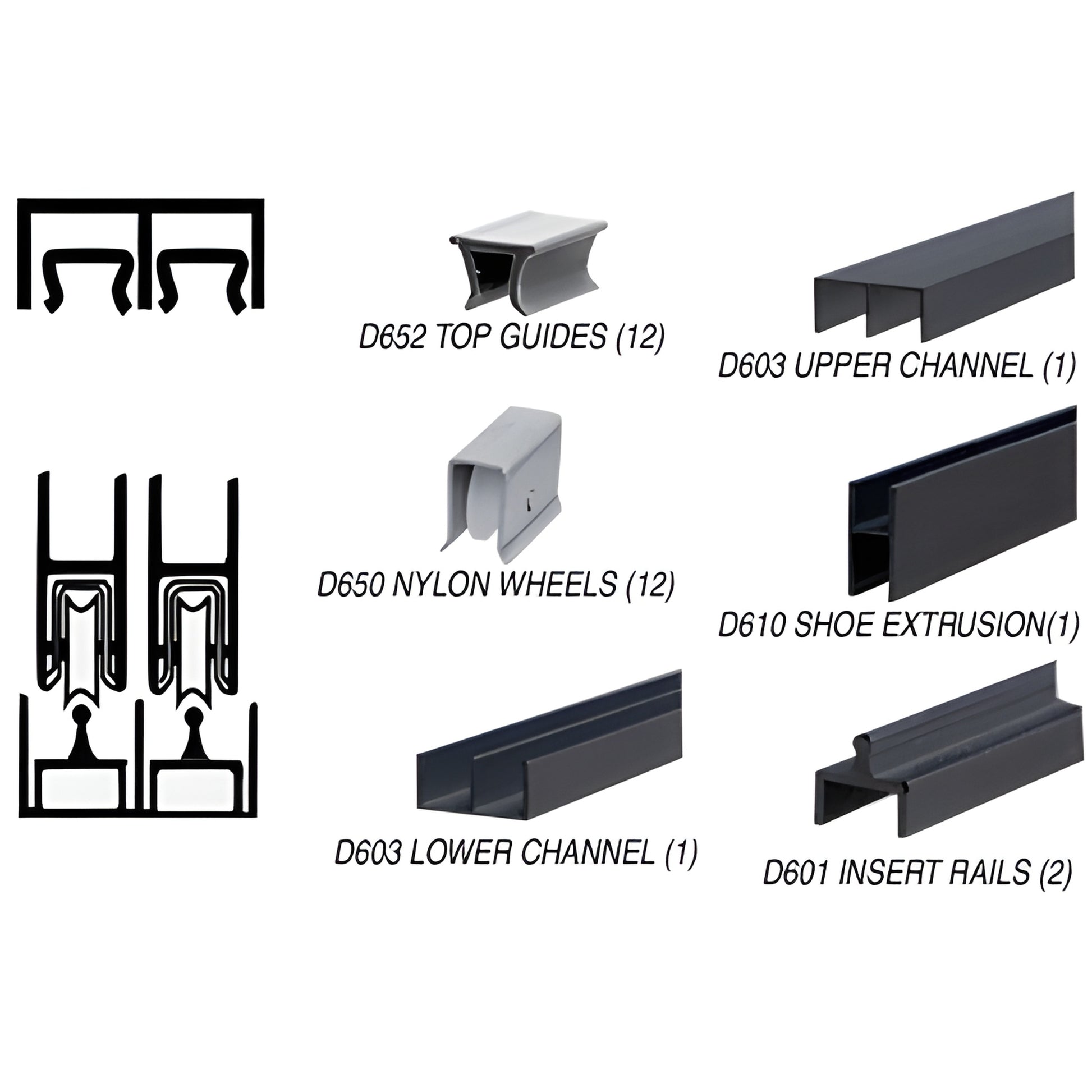

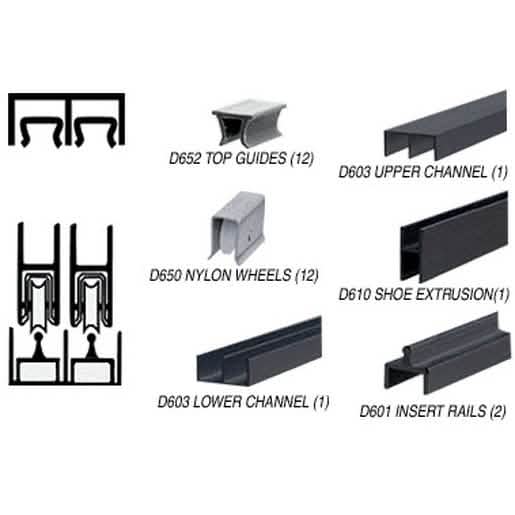

Components for D2301BL

• D601 (x2)
• D603 (x2)
• D610 (x1)
• D650 (x12)
• D652 (x12)
• D9650 (x1)

Product Warning:

• Stock lengths must ship common carrier unless specifically cut for UPS shipment.
• If you need a very tight fit, calculate your own dimensions. Shown dimensions are guidelines satisfactory to most installers.

Glass height guidelines (Rolling Track Assemblies)

• D2200 Series: Glass Height = Opening minus 1-5/16"
• D2203 Series: Glass Height = Opening minus 1-1/8"
• D2204 Series: Glass Height = Opening minus 1-1/8"
• D2300 Series: Glass Height = Opening minus 1-3/8"
• D2301 Series: Glass Height = Opening minus 1-3/8"
• D2303 Series: Glass Height = Opening minus 1-3/8"
• D2305 Series: Glass Height = Opening minus 1-3/8"
• D2306 Series: Glass Height = Opening minus 1-5/8"
• D2307 Series: Glass Height = Opening minus 1-5/8"
