CRL Flat Black Deluxe Sliding Door Track D609/D603 - Ball Bearings

• D2300 Series
• With D649 Ball Bearing Wheels
• Ideal for Commercial or Residential Applications
• Designed for Quick and Easy Installation
• Available in Up to Six Stock Finishes, Including New Brushed Nickel
• 12' (3.66 m) Length

CRL's 12' (3.66 m) Deluxe Rolling Track Assembly (SKU: D2300BLBB) is a heavy-duty sliding glass door track ideal for commercial and residential applications. Featuring D649 ball bearing wheels for smooth, low-friction operation and multiple finish options including Brushed Nickel, this 12-foot rolling track assembly is designed for frequent use and years of reliable service. The system supports dry glazing with 1/4" (6 mm) glass using Cat. No. GC728C vinyl (sold separately). CRL also offers ratchet and plunger type locks to secure sliding doors.

Maximum suggested panel size: 36" W x 48" H (914 mm x 1.22 m).

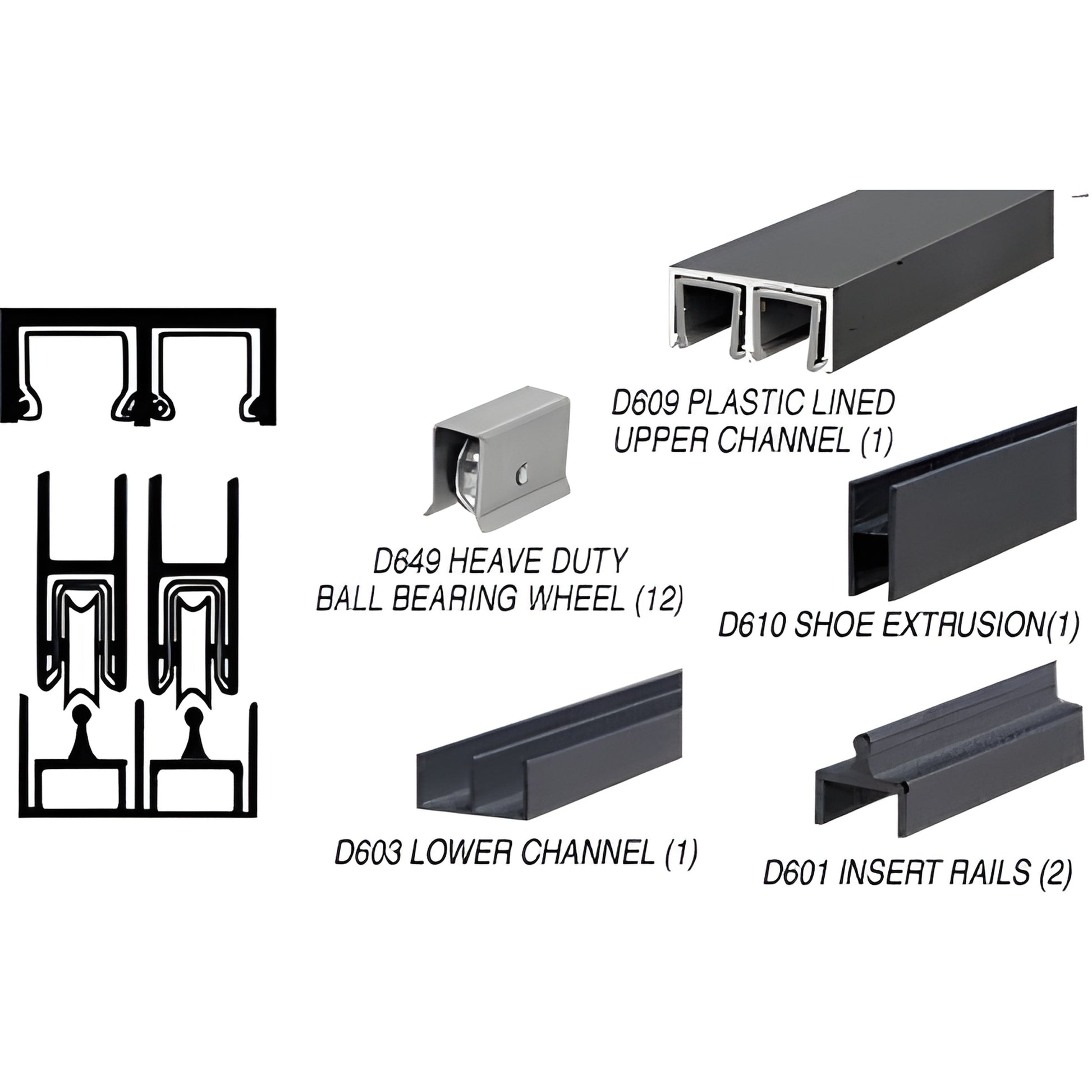

Components for D2300BLBB
D601 (x2)
D603 (x1)
D609 (x1)
D610 (x1)
D649 (x12)
D9650 (x1)

Installation & sizing notes
Stock lengths must ship common carrier unless specifically cut for UPS shipment. If you need a very tight fit, measure and calculate your own dimensions; the dimensions shown are guideline dimensions suitable for most installers.

Glass height reference for rolling track assemblies (Opening minus):
D2200 Series: Opening Minus 1-5/16"
D2203 Series: Opening Minus 1-1/8"
D2204 Series: Opening Minus 1-1/8"
D2300 Series: Opening Minus 1-3/8"
D2301 Series: Opening Minus 1-3/8"
D2303 Series: Opening Minus 1-3/8"
D2305 Series: Opening Minus 1-3/8"
D2306 Series: Opening Minus 1-5/8"
D2307 Series: Opening Minus 1-5/8"
