CRL Flat Black D609/D602 Upper & Lower Track w/ Steel Ball Bearings

• D2204 Series
• Includes D649 Ball Bearing Wheels
• An excellent choice for display cases, trophy cases, and retail cabinets
• Choose from two styles of upper channel
• Available in up to six finishes
• 12' (3.66 m) length

CRL 12' (3.66 m) Low Profile Rolling Track Assemblies — SKU D2204BLBB

Complete rolling track assemblies packaged with extrusions, wheels, and guides for custom sliding-door projects. Designed for 1/4" (6 mm) tempered glass doors, this low profile sliding track is ideal for display case sliding doors, china cabinets, trophy cases, and retail store showcases. Select Nylon or Steel Ball Bearing wheel assemblies (D649) for years of smooth, reliable operation. Compatible with optional locking hardware. For dry glazing with 1/4" (6 mm) glass use Cat. No. GC728C vinyl (sold separately).

NOTE: Maximum suggested panel size is 36" W x 48" H (914 mm x 1.22 m).

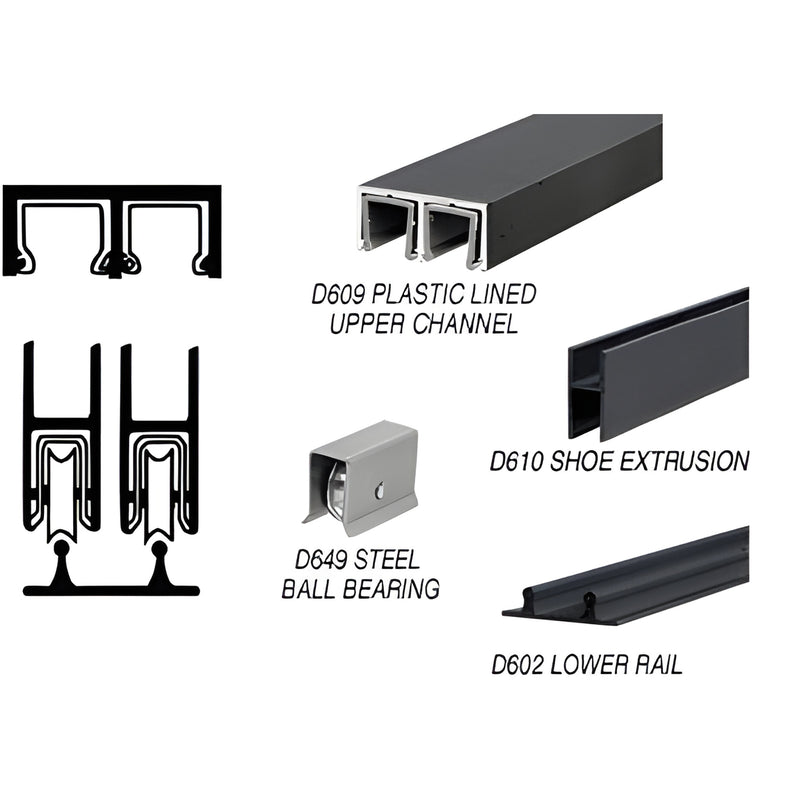

Components for D2204BLBB
D602 (x1)
D609 (x1)
D610 (x1)
D649 (x12)
D9650 (x1)

Product Warning:
Stock lengths must ship via common carrier unless specifically cut for UPS shipment.

Ready to specify a low profile rolling track assembly for 1/4" tempered glass? Order SKU D2204BLBB or contact CRL Customer Service for exact shipping weight and finish availability.
