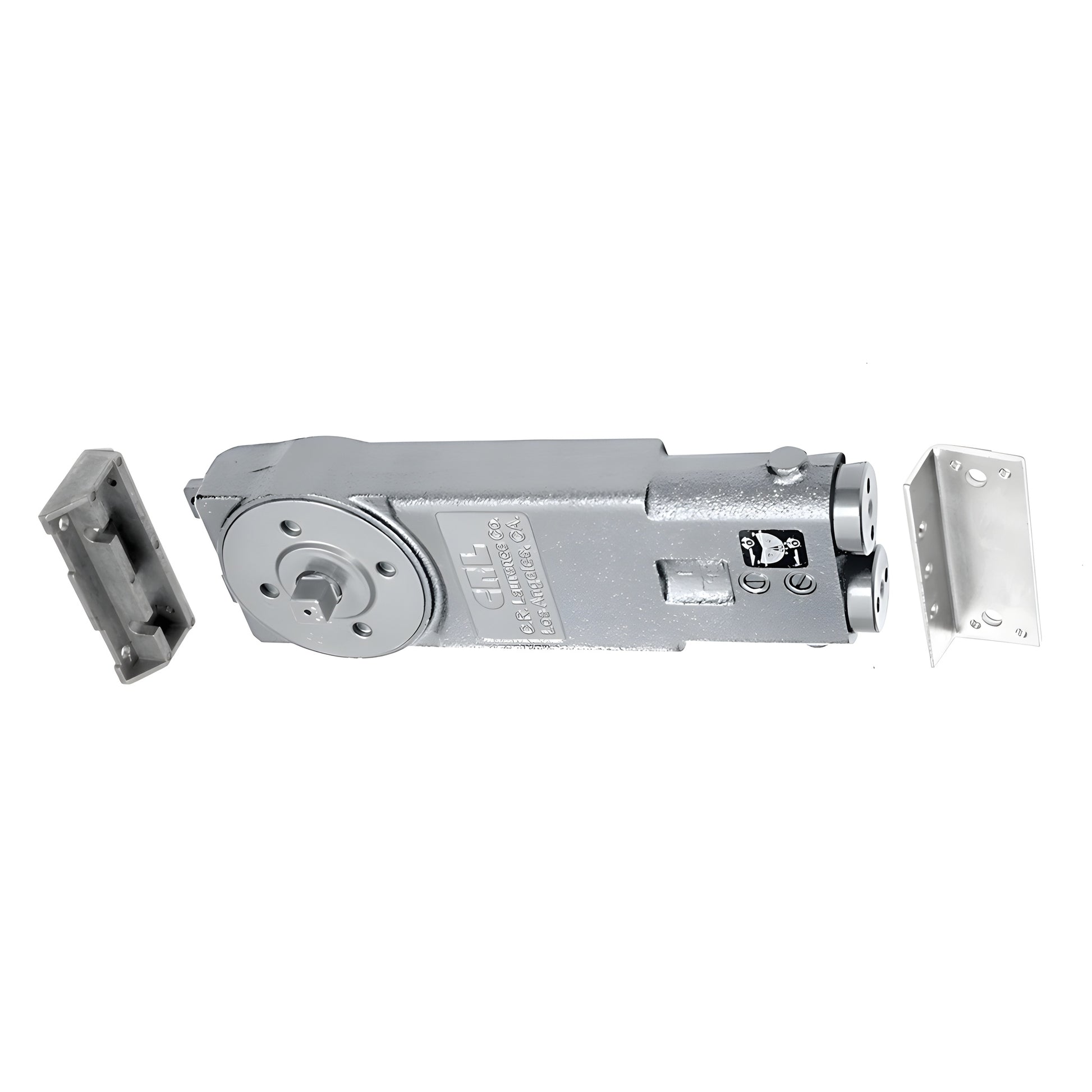

CRL Heavy-Duty 90° No Hold-Open Concealed Overhead Door Closer Body
CRL Heavy-Duty 90° No Hold-Open Concealed Overhead Door Closer Body
Regular price
$143.42 CAD
Regular price
Sale price
$143.42 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CRL7262
Shipping Weight: 11.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 11.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Body Height
1-11/16
Body Length
11-5/8
Body Width
3-11/16
Case Quantity
6
Closer Type
Overhead Concealed
Door Height
96
Handing
Double Acting
Includes
CRL8010FS
Maximum Door Weight
200
No Hold Open
90°
Recommended Door Type
Aluminum, Hollow Metal
Spindle
1/2
Spring Size
8.5
UL Listed
Yes
Overview
- Interchangeable with all Jackson®-style overhead concealed door closers
- 20 models available
- Conveniently packaged with templates and instructions
- 5-year limited warranty
- UL listed
Buying our door closer bodies with mounting clips lets you replace a worn closer affordably or build a custom Jackson®-style overhead concealed door closer package by adding only the accessory parts you need (pivots, arms, etc.). Each closer body ships with mounting clips, templates, and installation instructions.

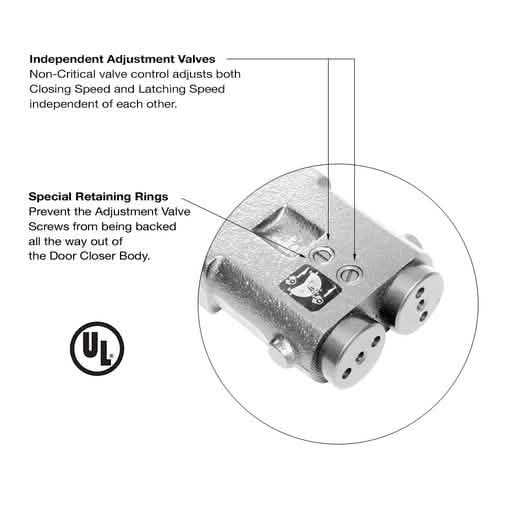

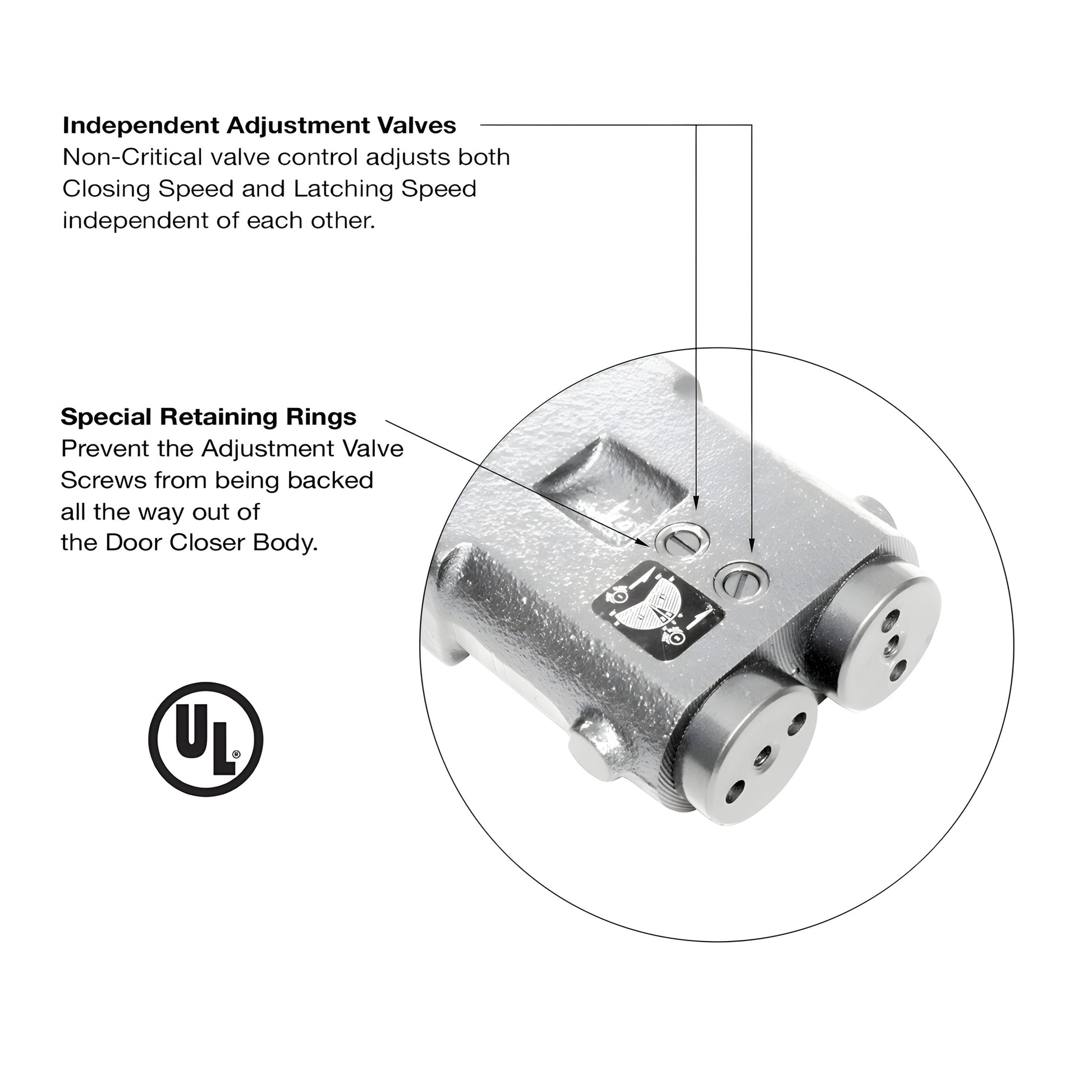

Independent adjustment valves
Non-critical valve control adjusts both closing speed and latching speed independently for precise door control.
Special retaining rings
Prevent the adjustment valve screws from being backed all the way out of the door closer body.
Note: An auxiliary floor or overhead door stop is recommended to prevent damage from over-extension of maximum allowable door swing.
Weight and size limitations:
Door weight: 220 lbs (91 kg)
Exterior door width: 42" (1.07 m)
Interior door width: 48" (1.22 m)
All doors height: 96" (2.44 m)
Product warning:
Closer is not to be used for doors weighing in excess of 220 lbs (100 kg).
SKU: CRL7262
Find the exact Jackson®-style overhead concealed door closer body you need—order CRL7262 today.
