CRL Heavy-Duty Smoke Baffle Base Shoe for 3/4" Glass - 10' Length

• For Fabricating Almost Invisible Smoke Curtains From 3/4" (19 mm) Tempered Glass
• Glass is Mechanically Secured with Fasteners and Grommets
• Custom Drilling, Mitering, and Cutting Services Available

CRL Heavy-Duty Smoke Baffle Base Shoe is designed to provide an almost invisible 3/4" (19 mm) tempered glass smoke curtain. Many of today’s fire codes require large offices or retail areas to be broken down into smaller, more manageable areas that can be monitored by smoke detectors. This is the specific application for smoke baffles or curtains. Smoke curtains work to retain smoke in an area of a specified square footage. Some sprinkler systems are activated by a smoke alarm, so sectioning off areas through the use of smoke curtains can prevent unnecessary sprinkler activation.

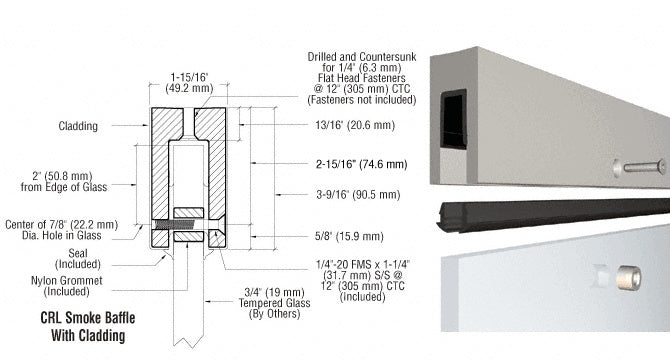

Extruded aluminum Heavy-Duty Smoke Baffle Base Shoe simply attaches to the ceiling structure so the glass can hang straight down. The glass is secured with screws going through nylon grommets (both included), that fit into 3/4" (19 mm) holes drilled in the glass on 12" (305 mm) centers. A glass fabrication template is included. Cladding in six architectural finishes is available.

NOTE: Check your local building codes for regulations pertaining to ceiling area square footage and required depth specifications for smoke baffles or glass curtains.

Shipping Notice: Due to the difficulty in packaging and handling 240" (6.10 m) stock lengths, it is suggested that you Will Call these at any of our regional distribution centers. If requiring shipment, all packaging and handling concerns must be agreed to by CRL and the customer prior to shipping. All shipping arrangements will be documented on your quotation for your signed approval.
