Product Details
- UL Listed ANSI 250.13 Severe Windstorm Rating
- Florida Building Code Approved (FL # 14307)
- UL1034 Burglary-Resistant Listed and Suitable for Outdoor Use
- UL294 (6th Edition) Listed
- ANSI/BHMA A156.31 Grade 1
- RoHS Compliant
- Dual Voltage 12V DC (.45 Amps) or 24V DC (.26 Amps) Continuous Duty

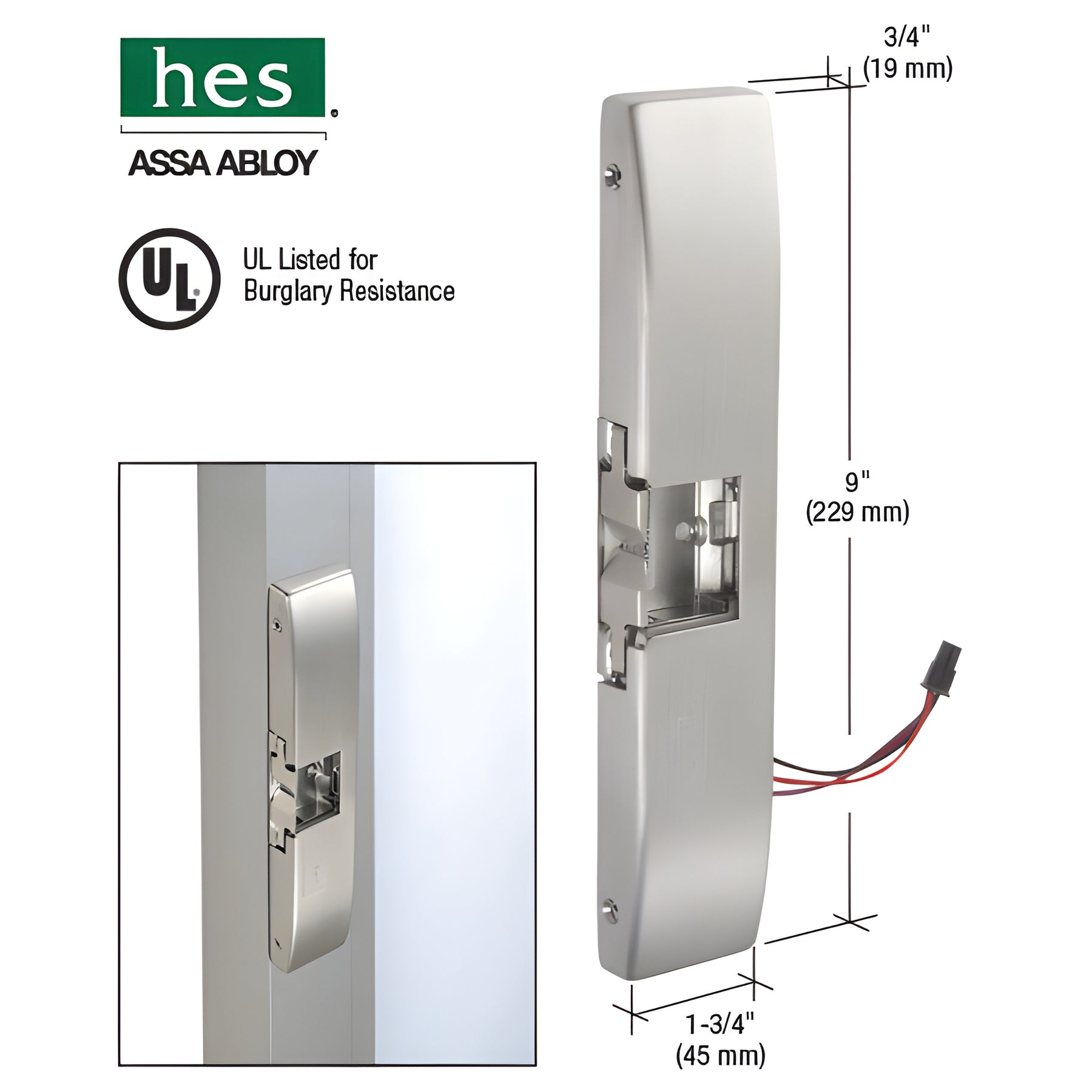

The HES® 9600 Series Surface Mount Electric Strike is windstorm rated and designed to accomodate RIM exit devices with a 3/4" (19 mm) throw latch. All components are completely encased within a 3/4" (19 mm) thich stainless steel housing, so no cutting on the frame is required for installation. Simply place the Electric Strike on the surface of the frame, align it with the exit latchbolt and install. It is field selectable for fail secure and fail safe operation, and for 12 or 24V DC.
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
