CRL Arlene Horizontal Sliding Pass-Thru Door w/ D7 Header (No Screen)
Item# D1022A
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Configuration
XOX
Finish/Color
Satin Anodized
Maximum Height
50 in. (1270 mm)
Maximum Width
108 in. (2743.2 mm)
Model
Arlene
Overhead Track
D7
Panel Designation
O = Fixed, X = Sliding
Panel Quantity
3
Usage
Interior
- Custom sized; ships knocked-down for easier freight
- Available in Satin Anodized or Dark Bronze finish
- Three panels: one fixed center panel with two sliding panels for an unobstructed counter
- Two overhead track options: D7 or D1670 (matches 1-3/4" x 3" storefront tube)

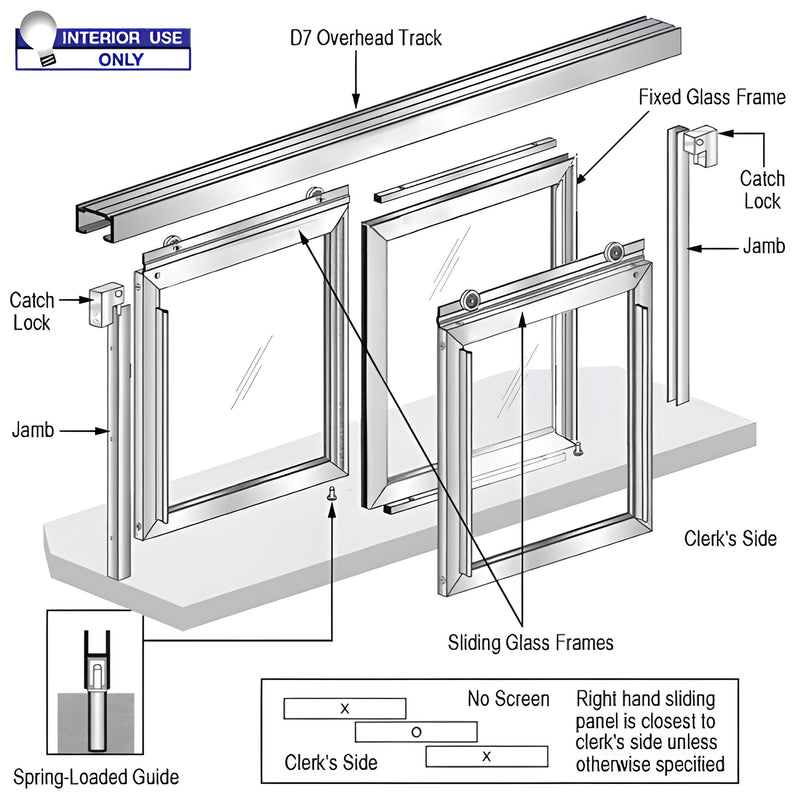

CRL Arlene Pass-Thru Window (SKU: D1022A) is a popular horizontal sliding pass-thru window designed for receptionist counters, office pass-throughs, and interior service openings. The three equal panels provide a clear counter surface while two rolling panels run smoothly on an overhead track—ideal for high-traffic transaction areas.
Different models use either the standard D7 overhead track or the D1670 overhead track that matches 1-3/4" x 3" (44.5 mm x 76.2 mm) storefront tube. Suggested glass cutting formulas for CRL glazing vinyl are provided in the installation guide; recommended glass sizes are available from CRL engineering on confirmed orders.
Note: These horizontal sliding pass-thru assemblies are recommended for interior applications only. Each assembly is sold without glass and includes glazing vinyl for 3/16" (5 mm) or 1/4" (6 mm) glazing. Assemblies are ordered by frame size—see the installation guide for recommended deductions. Frame members are color-coded to simplify assembly and glazing.
Weight: Varies per custom size
Product Warning:
Maximum frame size: 108" (2743 mm) W x 50" (1270 mm) H with three equal panels
Most shipping weights are approximate and have not been verified. If you require exact weight to determine shipping costs before ordering, contact CRL Customer Service. Product images are actual or close representations; colors may vary by monitor.
Order the CRL Arlene Pass-Thru Window (SKU: D1022A) for a durable, low-profile interior pass-through solution—contact CRL to confirm glass sizes and lead times.
