CRL Barbara Horizontal Sliding Pass-Thru w/ D1670 Header
Item# D1030A
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Configuration
OXO
Finish/Color
Satin Anodized
Maximum Height
50 in. (1270 mm)
Maximum Width
108 in. (2743.2 mm)
Model
Barbara
Overhead Track
D1670
Panel Designation
O = Fixed, X = Sliding
Panel Quantity
3
Usage
Interior
- Custom sized; ships knocked-down for easy freight handling
- Finish options: Satin Anodized or Dark Bronze

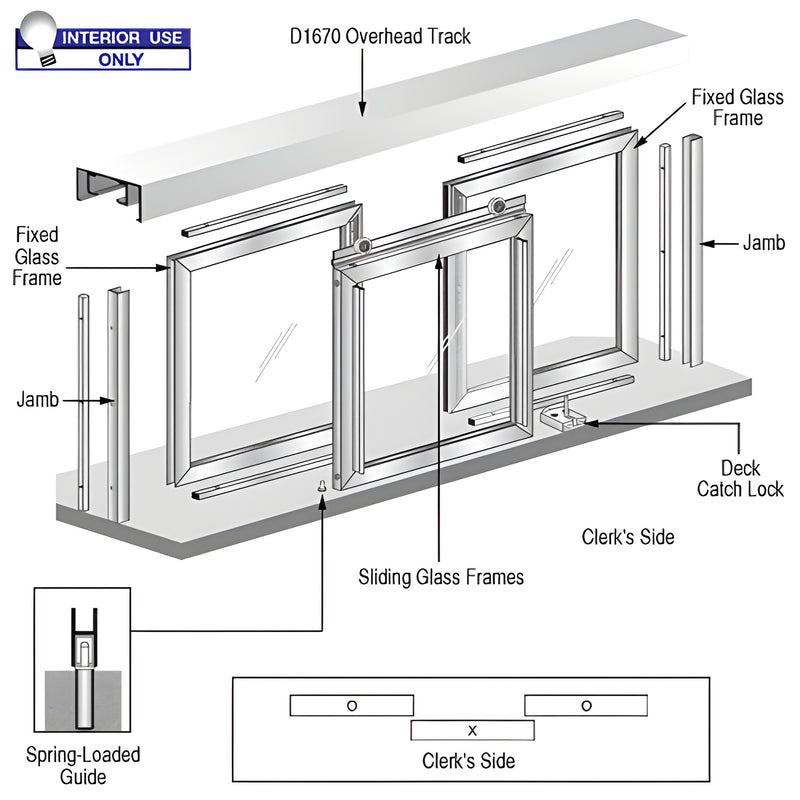

- Three panels: two fixed end panels and one central sliding panel for unobstructed counter access
- Two overhead track options: D7 standard or D1670 (matches 1-3/4" x 3" storefront tube)
The CRL Barbara Model Pass-Thru Window (SKU: D1030A) is a popular horizontal sliding pass-thru window designed for interior receptionist windows, office pass-throughs, and service counters. Its three equal panels (two fixed, one center slider) provide an unobstructed counter surface and smooth rolling operation on an overhead track—ideal for high-traffic reception and transaction areas.
Different models are available with two header/track choices: the standard D7 overhead track or the D1670 overhead track that matches 1-3/4" x 3" (44.5 x 76.2 mm) storefront tube. Suggested glass cutting formulas for CRL glazing vinyl are available in the installation guide; CRL engineering provides recommended glass sizes on confirmed orders.
Key details:
- Interior application only
- Sold without glass; includes glazing vinyl for 3/16" (5 mm) and 1/4" (6 mm) glazing
- Ordered by frame size—see installation guide for recommended deductions
- Color-coded frame members for simplified assembly and glazing
- Weight: varies by custom size
Product Warning:
Maximum frame size: 108" (2743 mm) W x 50" (1270 mm) H with three equal panels
Most shipping weights are approximate and have not been verified. If exact weight is required to determine shipping costs before ordering, please contact CRL Customer Service. Product images are representative; actual colors may vary by monitor.
Choose the CRL Barbara Model Pass-Thru Window (D1030A) for a durable, easy-to-install interior pass-through solution—contact sales to request the installation guide and get a custom quote.
