CRL Daisy Horizontal Sliding Glass Pass-Thru, D6 Header (No Jambs)
Item# D1043DU
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Configuration
XX
Finish/Color
Duranodic Bronze Anodized
Maximum Height
50 in. (1270 mm)
Maximum Width
72 in. (1828.8 mm)
Model
Daisy
Overhead Track
D6
Panel Designation
XX Type X = Sliding
Panel Quantity
2
Usage
Interior
- Custom sized; ships knocked-down
- Satin Anodized or Duranodic Bronze Anodized finish
- Two sliding glass panels (both panels slide)
- Two overhead track options: D6 (transaction) or D4 (back-loading display)
- Order with or without jambs

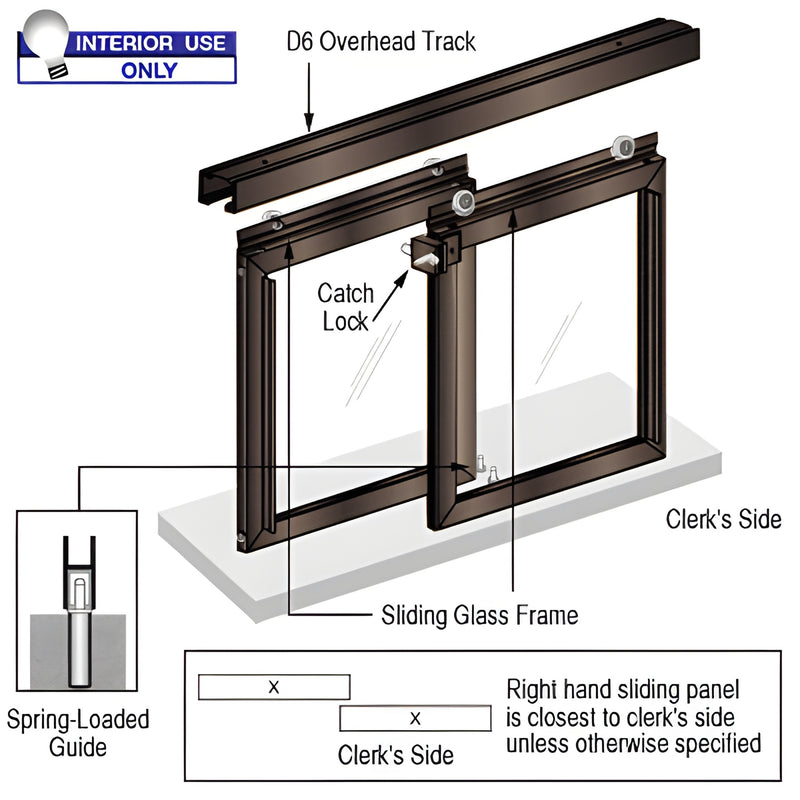

The CRL Daisy Pass-Thru Window (SKU: D1043DU) is a popular horizontal sliding pass-thru window designed for receptionist counters, office pass-throughs, and transaction openings. Two equal sliding panels deliver an unobstructed counter surface, smooth overhead rolling track operation, and easy access for customer service and secure transactions.
Differentiators: Custom-sized frames, choice of satin anodized or Duranodic bronze anodized finishes, two header options (D6 for transactions, D4 for display/back-loading), and color-coded frame members for easier assembly and glazing.
Screens are not available. Each assembly ships without glass and includes glazing vinyl for 3/16" (5 mm) and 1/4" (6 mm) glazing. Assemblies are ordered by frame size—see the installation guide for recommended deductions and the suggested glass cutting formula. CRL engineering provides recommended glass sizes for confirmed orders.
NOTE: For interior use only. Weight varies by custom size.
Product Warning:
Maximum frame size: 72" (1829 mm) W x 50" (1270 mm) H
Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, request this prior to submitting your order by contacting CRL Customer Service. Product images are representative; colors may vary by monitor and video card settings.
Order the CRL Daisy Pass-Thru Window (SKU: D1043DU) today — contact CRL Customer Service to confirm custom sizes, finish options, and glass recommendations.
