CRL
CRL
CRL Fawn Horizontal Sliding Pass-Thru w/ D1670 Header No Screens
Item# D1028A
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Configuration
XOX
Finish/Color
Satin Anodized
Maximum Height
50 in. (1270 mm)
Maximum Width
144 in. (3657.6 mm)
Model
Fawn
Overhead Track
D1670
Panel Designation
O = Fixed, X = Sliding
Panel Quantity
3
Usage
Interior
- Custom sized, ships knocked-down for easy on-site assembly
- Satin anodized or dark bronze finish

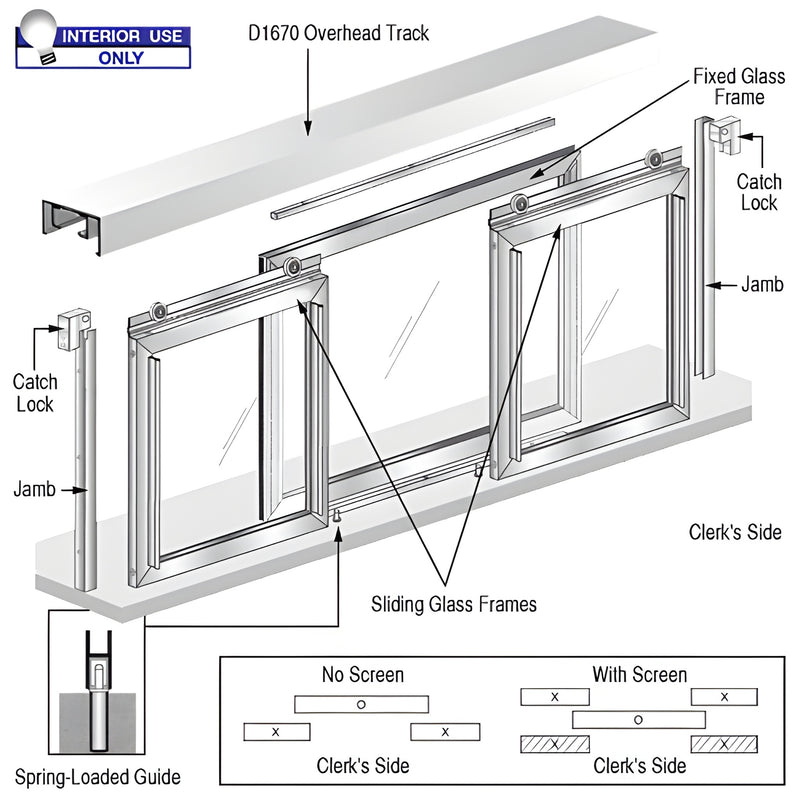

- Three panels: one fixed center panel and two sliding end panels
- Order with or without screen
CRL Horizontal Sliding Fawn Model Pass-Thru Assembly with D7 Header — SKU: D1028A
The CRL Fawn Model horizontal sliding pass-thru window is a popular reception and office pass-through solution. Its three-panel design (one large fixed center panel plus two smaller sliding ends) provides an unobstructed counter surface and a smooth rolling overhead track ideal for receptionist windows, service counters, and interior pass-thru applications.
Available options and features:
- D7 overhead track standard; optional D1670 overhead track matches 1-3/4" x 3" (44.5 x 76.2 mm) storefront tube
- Finish choices: satin anodized or dark bronze
- Available with or without screen
Ordering & installation notes: Assemblies are ordered by frame size and ship without glass. Each assembly includes glazing vinyl for 3/16" (5 mm) or 1/4" (6 mm) glazing. Suggested glass cutting formula and recommended glass sizes are provided in the installation guide and by CRL engineering for confirmed orders. Frame members are color-coded to simplify assembly and glazing.
Important: For interior use only. Maximum frame size 144" (3658 mm) W x 50" (1270 mm) H. Weight varies by custom size.
Most shipping weights are approximate and have not been verified. If you need an exact weight to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images are of the actual product or a close representation; colors can vary depending on your monitor.
Choose the CRL Fawn horizontal sliding pass-thru window for a durable, low-profile receptionist or office pass-through—contact us to request a quote or confirm custom dimensions.
