CRL Fawn Horizontal Sliding Pass-Thru Door w/ D1670 Header, No Screens

• Custom sized, ships knocked-down for easy jobsite handling
• Satin Anodized or Duranodic Bronze Anodized finish options

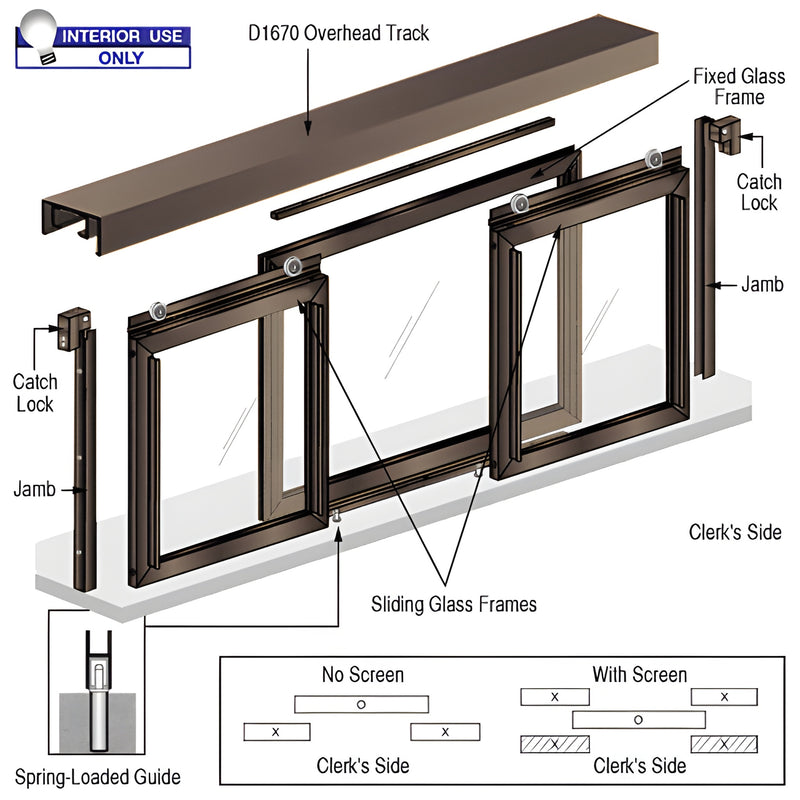

• Three panels: one fixed center panel with two sliding end panels for unobstructed counter access
• Available with or without screen

The CRL Fawn Model Pass-Thru Window (SKU: D1028DU) is a best-selling horizontal sliding pass-thru window designed for receptionist counters, office pass-throughs, and interior service openings. Its three-panel configuration provides an unobstructed counter surface and smooth rolling operation on an overhead track.

Different header options are available: the standard D7 overhead track or the D1670 overhead track that matches 1-3/4" x 3" (44.5 x 76.2 mm) storefront tube. Models can be ordered with or without a screen to suit service applications.

Suggested glass cutting formulas for use with CRL glazing vinyl appear in the installation guide. Recommended glass sizes are provided by CRL engineering for confirmed orders. Each assembly is supplied without glass and includes glazing vinyl for 3/16" (5 mm) or 1/4" (6 mm) glazing. Frame members are color-coded to simplify assembly and glazing. All assemblies are ordered by frame size—see the installation guide for recommended deductions.

NOTE: These horizontal sliding pass-thru assemblies are recommended for interior use only.

Weight: Varies per custom size

Product Warning:

Maximum frame size 144" (3658 mm) W x 50" (1270 mm) H


Order the CRL Fawn Pass-Thru Window (D1028DU) with your preferred finish and header option today.
