CRL Horizontal Sliding Pass-Thru Window Fawn D7 Header No Screens

• Custom sized; ships knocked-down for easy jobsite handling
• Satin Anodized or Duranodic Bronze Anodized finish options
• Three panels: one large fixed center with two sliding end panels for an unobstructed counter
• Order with or without screen; recommended for interior use

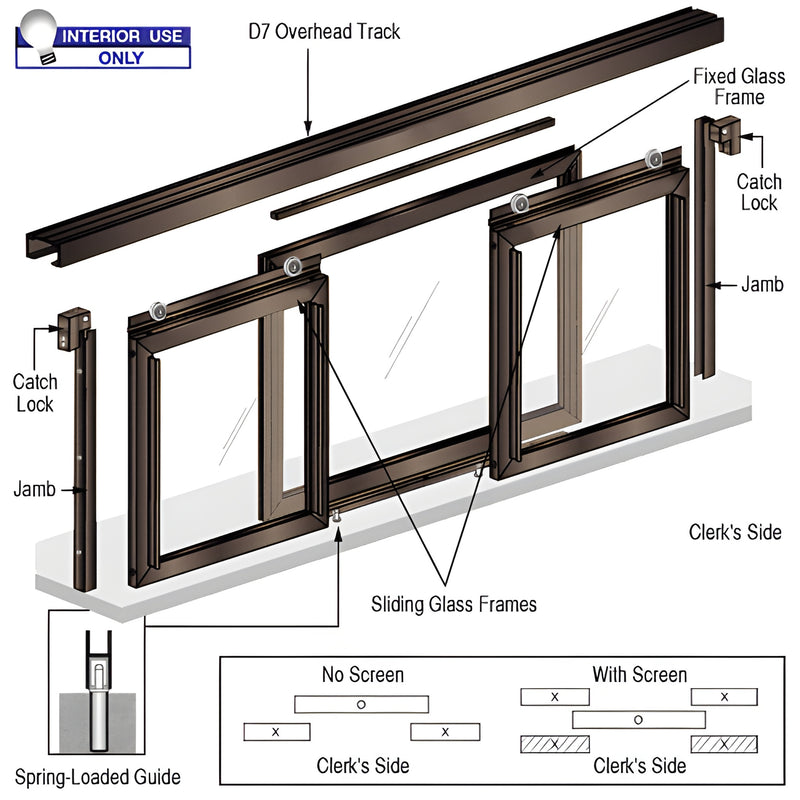

The CRL Fawn Model Pass-Thru Window (SKU: D1027DU) is a top-selling horizontal sliding pass-thru window ideal for receptionist windows, office pass-throughs, and service counters. Its three-panel configuration (one fixed panel and two rolling sliding ends) provides an unobstructed counter surface and smooth overhead-track operation.


Available header options include the standard D7 Overhead Track or the D1670 Overhead Track (matches 1-3/4" x 3" / 44.5 x 76.2 mm storefront tube). Units are available with or without insect screen to suit your application.

Suggested glass cutting formulas for CRL glazing vinyl are provided in the installation guide; recommended glass sizes are supplied by CRL engineering for confirmed orders. Each assembly is sold without glass and includes glazing vinyl for 3/16" (5 mm) and 1/4" (6 mm) glazing. Frames are color coded to simplify assembly and glazing. All assemblies are ordered by frame size—see the installation guide for recommended deductions.

NOTE: These horizontal sliding pass-thru assemblies are intended for interior applications only.

Weight: Varies by custom size


Product Warning:

Maximum frame size: 144" (3658 mm) W x 50" (1270 mm) H


Contact CRL Customer Service to confirm specifications, request confirmed glass sizes, or place an order for SKU D1027DU.
