CRL Horizontal Sliding Pass-Thru Door Fawn w/ D7 Header & Screens

• Custom sized; ships knocked-down
• Satin anodized or dark bronze finish
• Three panels: one fixed, two sliding
• Available with or without screen

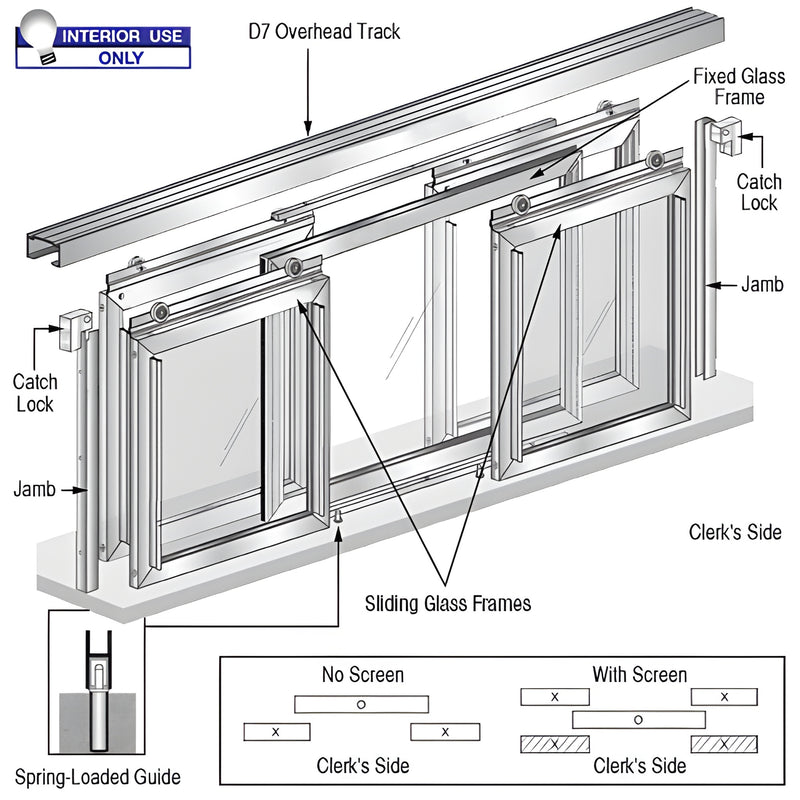

The CRL Fawn Model Pass-Thru Window (SKU: D1025A) is a popular horizontal sliding pass-thru window ideal for receptionist counters, office pass-throughs, and service counters. Its three-panel design (one large fixed center panel with two sliding end panels) provides an unobstructed counter surface and smooth rolling operation on an overhead track.

Different models offer two header options: the standard D7 overhead track or the D1670 overhead track that matches 1-3/4" x 3" (44.5 x 76.2 mm) storefront tube. Select models are available with an insect screen.

Suggested glass cutting formulas for use with CRL glazing vinyl are provided in the installation guide. CRL engineering supplies recommended glass sizes for confirmed orders.

NOTE: These horizontal sliding pass-thru assemblies are recommended for interior use only. Each assembly is sold without glass and includes glazing vinyl for 3/16" (5 mm) or 1/4" (6 mm) glazing. Assemblies are ordered by frame size—see the installation guide for recommended deductions. Frame members are color-coded to facilitate assembly and glazing.

Weight: Varies by custom size

Product Warning:

Maximum frame size 144" (3658 mm) W x 50" (1270 mm) H

To request a quote, confirm glass sizes, or order the CRL Fawn Model Pass-Thru Window (D1025A), contact CRL Customer Service or review the installation guide for ordering details.
