CRL Florence Sliding Pass-Thru Window w/ D1670 Header, No Screen

• Custom sized; ships knocked-down for easy transport
• Satin Anodized or Duranodic Bronze anodized finish
• Two panels: one fixed, one horizontal sliding for unobstructed counter access
• Order with or without screen; optional D7 or D1670 overhead track

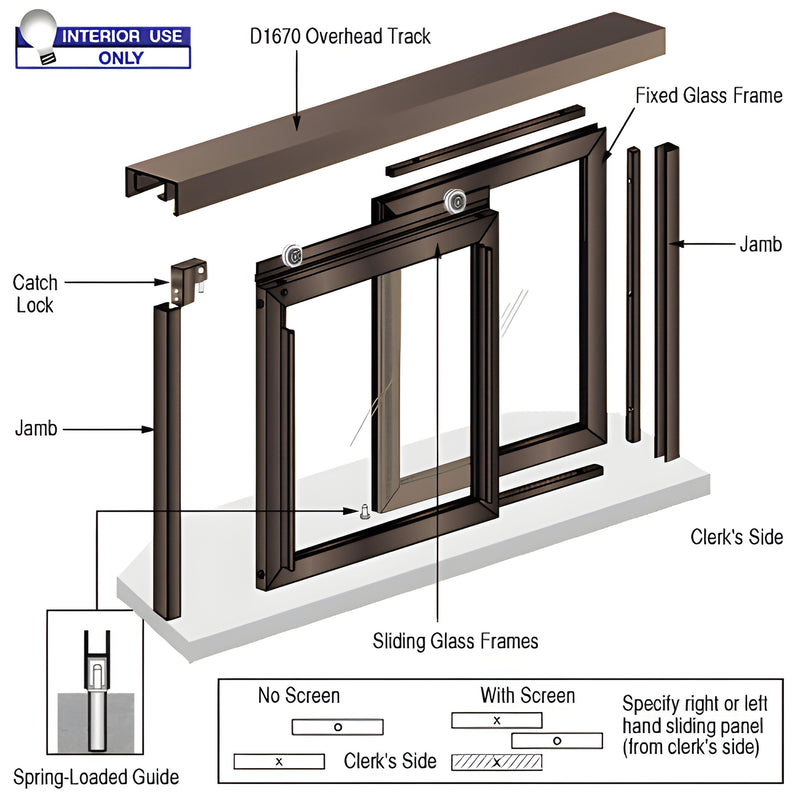

The CRL Florence Pass-Thru Window (SKU: D1039DU) is a popular horizontal sliding pass-thru window ideal for receptionist windows, office pass-throughs, and interior service counters. Two equal panels—one fixed and one sliding—provide an unobstructed counter surface and smooth rolling action on an overhead track.

Different models are available with two header options: the standard D7 overhead track or the D1670 overhead track that matches 1-3/4" x 3" (44.5 x 76.2 mm) storefront tubing. Models can be ordered with or without a screen. Recommended glass sizes and a suggested glass cutting formula for CRL glazing vinyl are provided in the installation guide; CRL engineering supplies recommended glass dimensions for confirmed orders.

Key features & differentiators:

• Custom frame sizes for tailored openings
• Ships knocked-down to reduce shipping cost and simplify installation
• Color-coded frame members for easy assembly and glazing
• Includes glazing vinyl for 3/16" (5 mm) and 1/4" (6 mm) glass

Important: Horizontal Sliding Pass-Thru Assemblies are for interior use only. Each assembly is sold without glass. All assemblies are ordered by frame size—see installation guide for recommended deductions.

Weight: Varies by custom size

Product Warning:

Maximum frame size: 72" (1829 mm) W x 50" (1270 mm) H with two equal panels

Order your CRL Florence Pass-Thru Window (SKU: D1039DU) today to streamline interior service counters.
