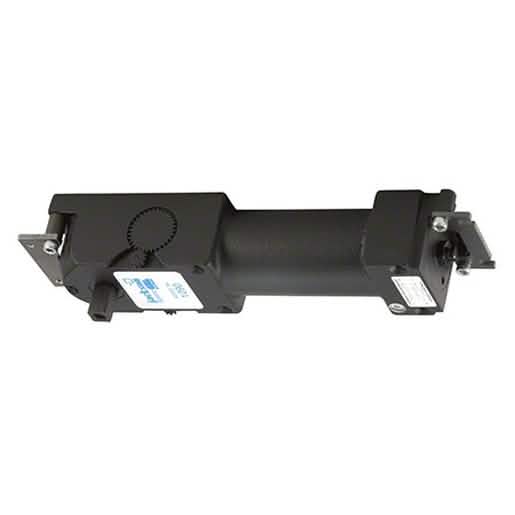

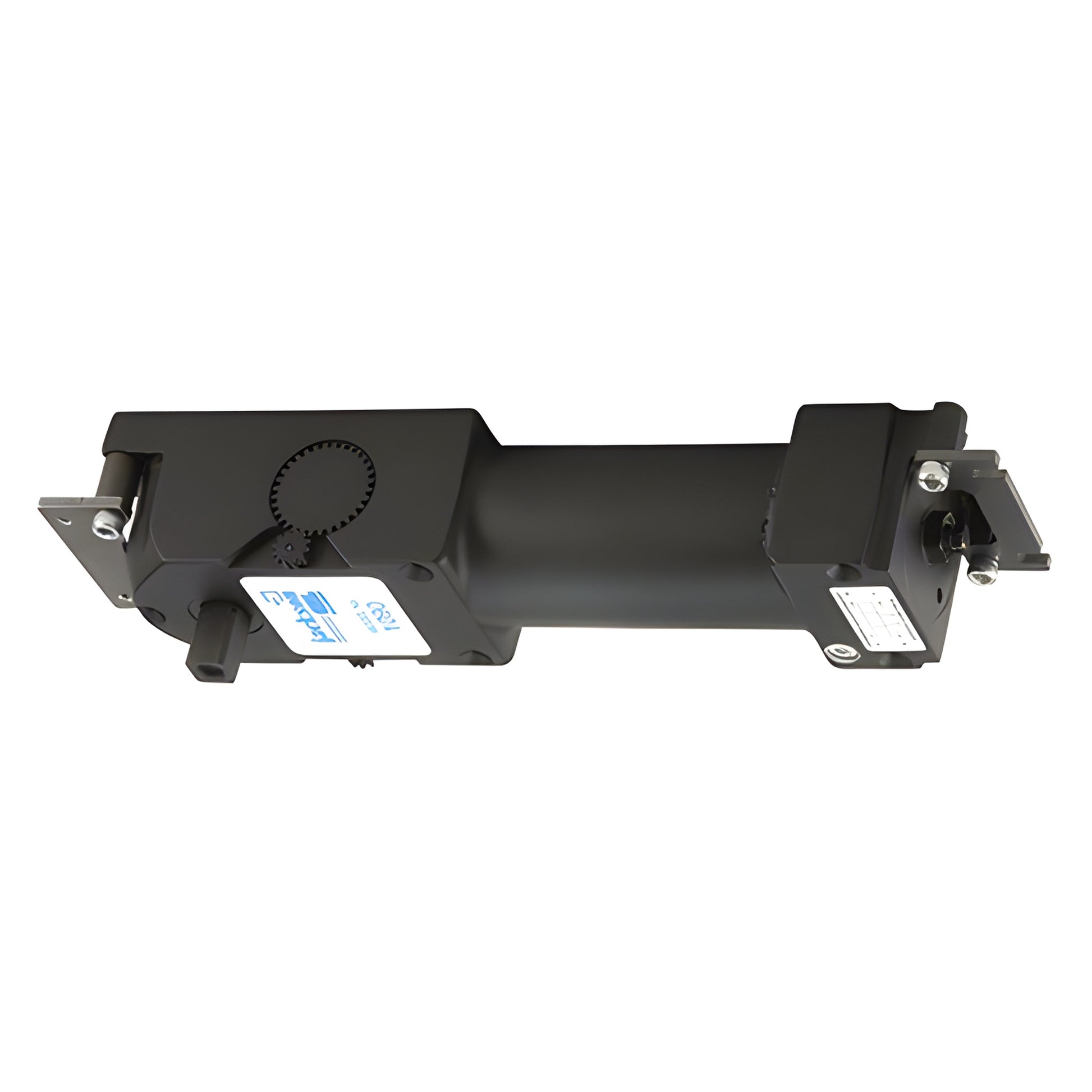

CRL Jackson® 1000 Series Ultimate Overhead Concealed Door Closer - Dual Hold-Open at 90 and 120 Degrees

Overview

SKU	J1093H0
Sold as	1 Each
Adjustable Back Check	Yes
Americans with Disabilities Act	Yes
Body Height	2-9/32
Body Length	12-3/32
Body Width	2-11/32
Closer Type	Overhead Concealed
Custom Header Required	Yes
Door Height	96
Handing	Double Acting
Hold Open	90°, 120°
Includes	J10SP23, J10FB
Interchangeable Spindles	Yes
Maximum Door Weight	1000
Recommended Door Type	Aluminum, Hollow Metal
Spindle	5/8, 7/8
UL Listed	Yes

Description

Product Details

1,000 Pound Weight Capacity
Adjustable Spring Power Multi-Size Range 1-6
Features Dual Hold-Open at 90 and 120 Degrees
Requires Minimum 2-1/2" Height x 3-5/8" Width Header Extrusion

The CRL Jackson® Ultimate Overhead Concealed Door Closer is capable of handling doors weighing up to 1,000 pounds. It features an adjustable multi-range spring force range of 1 through 6. These double acting closers are suitable for use on both interior and exterior entry doors where large and heavy doors are commonplace. Mounting hardware and 7/8" (23 mm) length spindle is included. Requires Minimum 2-1/2" height x 3-5/8" width header extrusion.
