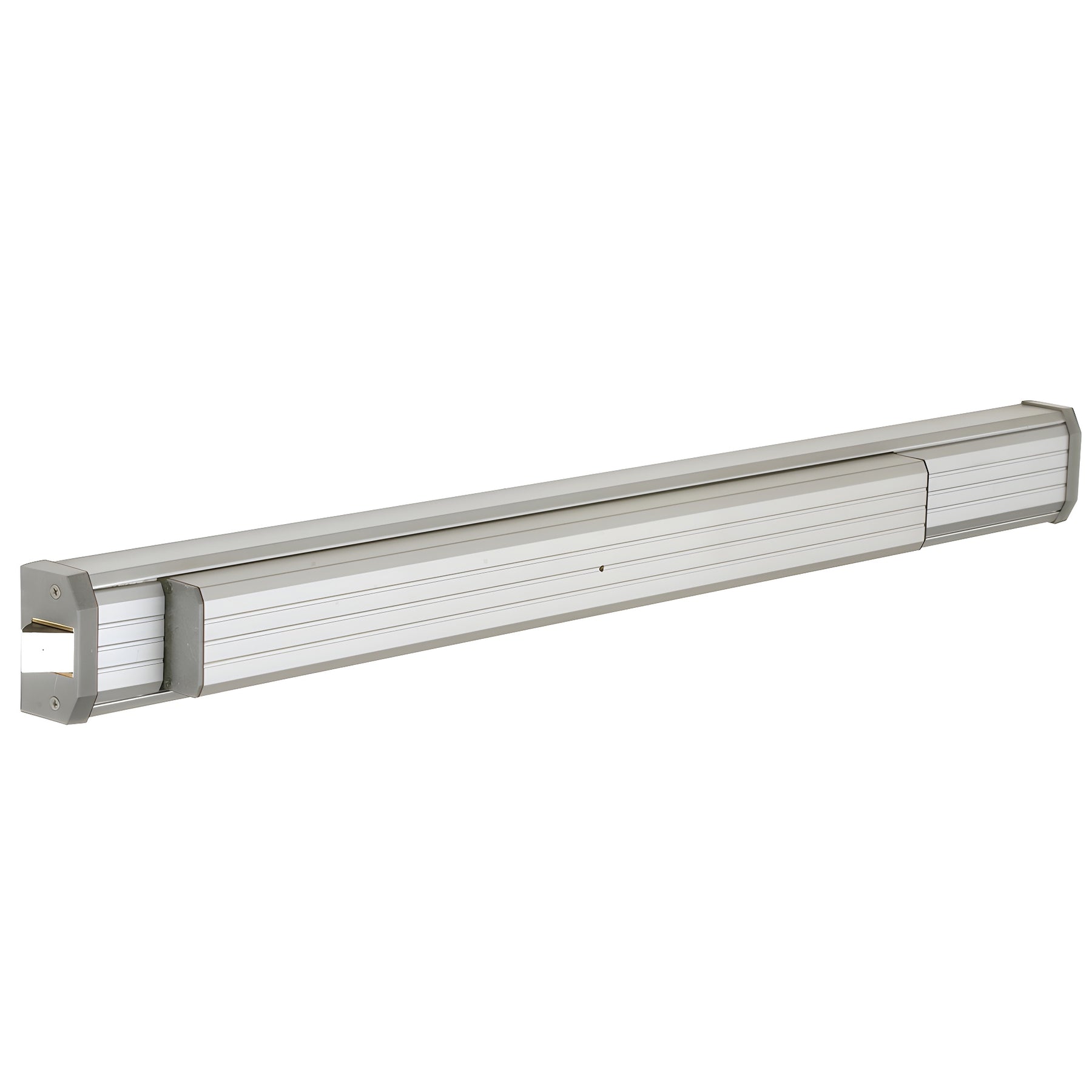

CRL Jackson® 1295 Push Pad Rim Panic Exit Device - Fluted Texture Extrusion, 'S' Type Strike, 36", Aluminum
Item # 311295S3628
$364.73
CAD
Finish (2)
-
Dark Bronze -
Aluminum
Overview
| SKU | 311295S3628 |
|---|---|
| Sold As | 1 Each |
| Brand | Jackson |
| Certification | ANSI/BHMA 156.3 |
| Door Thickness | 1-3/4 in. (44.5 mm) |
| Door Width | 36 in. (914.4 mm) |
| Finish/Color | Aluminum |
| Handing | Non Handed |
| Includes | Mounting Hardware |
| Material - End Cap | Aluminum |
| Material - Housing | Aluminum |
| Material - Latch & Strike | Sintered Steel |
| Material - Mechanical Components | Stainless and Hardened Plated Steel |
| Minimum Stile Width | 1-3/4 in. (44.5 mm) |
| Model | 1295 |
| Panic Bar Base Height | 3-3/16 in. (81 mm) |
| Panic Bar Projection | 2-7/8 in. (73 mm) |
| Panic Bar Width Net | 34-1/2 in. (876.3 mm) |
| Panic Dogging | Standard Hex Key Dogging |
| Panic Type | Rim |
| Push Pad Width | 24 in. (609.6 mm) |
| Recommended Door Type | Aluminum, Wood, Hollow Metal |
| Replacement Parts | DL911SCKAA |
| Series | 1200 |
| UL Listed | Yes |
Description
- Designed for Use with 1-3/4" (44 mm) Narrow, Medium, and Wide Stile Aluminum, Wood or Hollow Metal Doors
- Soft-Touch Smooth Action Push-Pad
- Can Be Cut to Size
- Standard Hex Key Dogging
The sleek, contemporary CRL Jackson® 1295 Series Rim Panic Exit Device is designed for use with narrow stile aluminum, hollow metal or wood single doors, or paired doors when used with the 896 removable mullion. Sized for 36" standard openings, but may be trimmed for narrower conditions.
SPECIFICATIONS:
1295 Rim Device
MATERIALS:
Base and Push-Pad: Extruded Aluminum
Mechanical Components: Stainless and Hardened, Plated Steel
Latch and Strikes: Sintered Steel
Metal End Caps
Specifications
Installation Instructions
