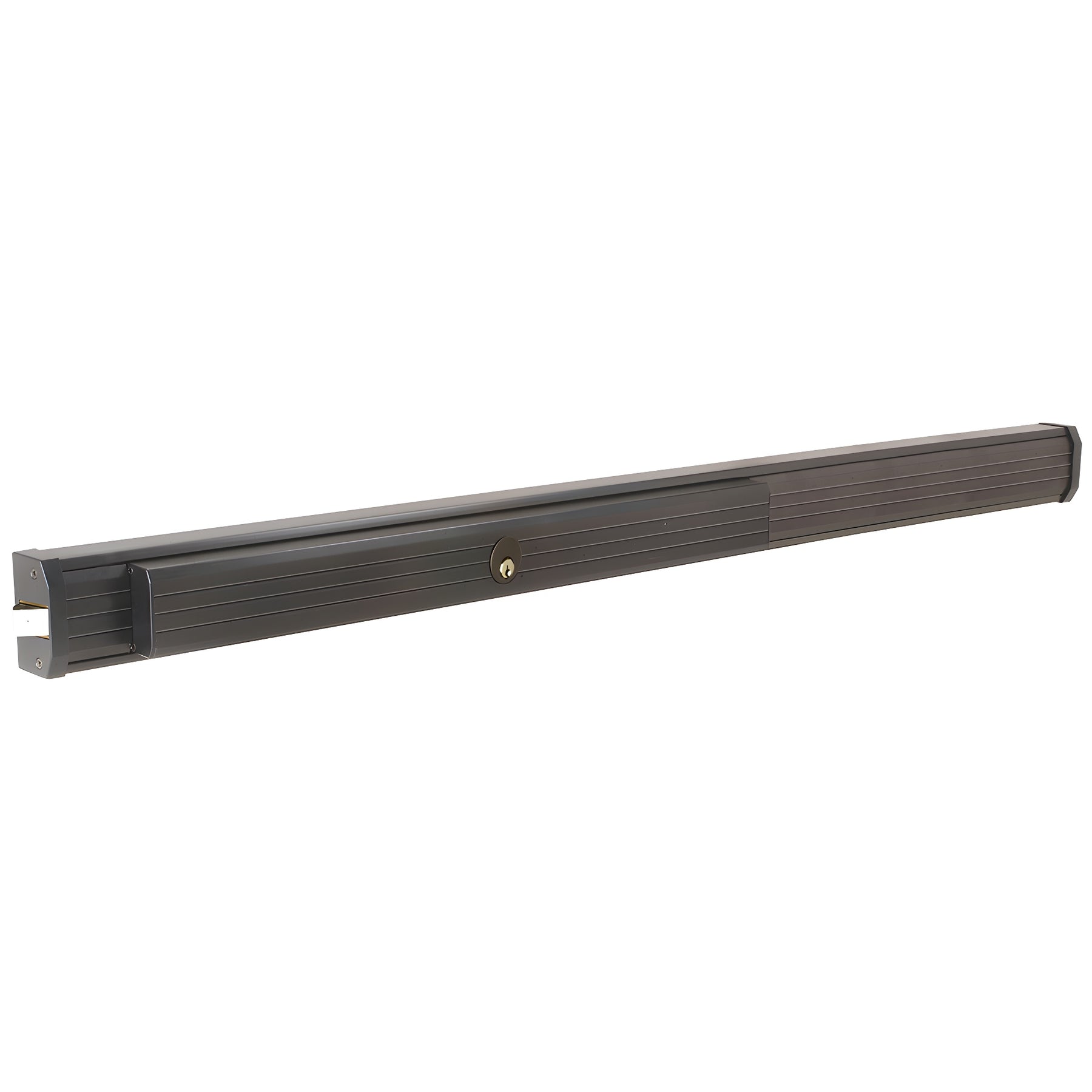

CRL Jackson® 1295 Push Pad Rim Panic Exit Device - 'S' Type Strike, 48", Dark Bronze with Cylinder Dogging
Item # 311295CS4313
$505.93
CAD
Finish (2)
-
Dark Bronze -
Aluminum
Overview
| SKU | 311295CS4313 |
|---|---|
| Sold As | 1 Each |
| Brand | Jackson |
| Certification | ANSI/BHMA 156.3 |
| Door Thickness | 1-3/4 in. (44.5 mm) |
| Door Width | 48 in. (1219.2 mm) |
| Finish/Color | Dark Bronze |
| Handing | Non Handed |
| Includes | Mounting Hardware |
| Material - End Cap | Aluminum |
| Material - Housing | Aluminum |
| Material - Latch & Strike | Sintered Steel |
| Material - Mechanical Components | Stainless and Hardened Plated Steel |
| Minimum Stile Width | 1-3/4 in. (44.5 mm) |
| Model | 1295 |
| Panic Bar Base Height | 3-3/16 in. (81 mm) |
| Panic Bar Projection | 2-7/8 in. (73 mm) |
| Panic Bar Width Net | 46-1/2 in. (1181.1 mm) |
| Panic Dogging | Standard Hex Key Dogging |
| Panic Type | Rim |
| Push Pad Width | 24 in. (609.6 mm) |
| Recommended Door Type | Aluminum, Wood, Hollow Metal |
| Series | 1200 |
| UL Listed | Yes |
Description
- Designed for Use with Narrow, Medium or Wide Stile Aluminum, Wood or Hollow Metal Doors
- Cylinder Dogging
- 15083DU, 9500LV02313
The sleek, contemporary CRL Jackson® 1295 Series Rim Panic Exit Device is designed for use with narrow stile aluminum, hollow metal or wood single doors, or paired doors when used with the 896 removable mullion. Sized for 48" standard openings, but may be trimmed for narrower conditions.
REPLACEMENT PARTS:
Specifications
CRL Jackson® 1295 Push Pad Rim Panic Exit Device - 'S' Type Strike, 48", Dark Bronze with Cylinder Dogging
311295CS4313
$505.93
CAD
