CRL Jackson® 900 105° Hold-Open Floor-Mounted Adjustable Closer

• 1000 lb capacity — supports doors up to 54" (1.37 m)
• Multi-size, spring-power adjustable (sizes 1–6)
• Interchangeable spindle heights for flexible installation
• Leveling and door-centering adjustments (6° range) for precise alignment
• Available hold-open or no-hold-open models: dual 90° & 120° or 105° only
• 10-Year limited warranty • UL Listed • BS EN1154 Classification 3.8.6/1.1.1.3

The CRL Jackson® 900 Series Multi-Sized Floor Mounted Door Closer (SKU: J994H0D) is a heavy-duty, floor-mounted door closer engineered for new construction and retrofit projects. With a 1,000 lb (453 kg) capacity, it is ideal for larger interior or exterior doors requiring long-lasting, low-maintenance performance. Accessories support both double-acting and single-acting doors as well as center-hung and offset installations.


Key features include fully adjustable spring power and hydraulics that meet A.D.A. opening-force requirements (can be set to 5 or 8.5 lbs), a unique door-centering adjustment for easy double-door alignment, and multi-viscosity, temperature-stabilizing fluid with thermal-sensitive valves for reliable operation in extreme temperature variations. Available for 105°, dual 90°/120° hold-open or no-hold-open configurations.


NOTE: Designed to open up to 180°. Use an auxiliary floor or overhead stop to limit opening to less than 180°.

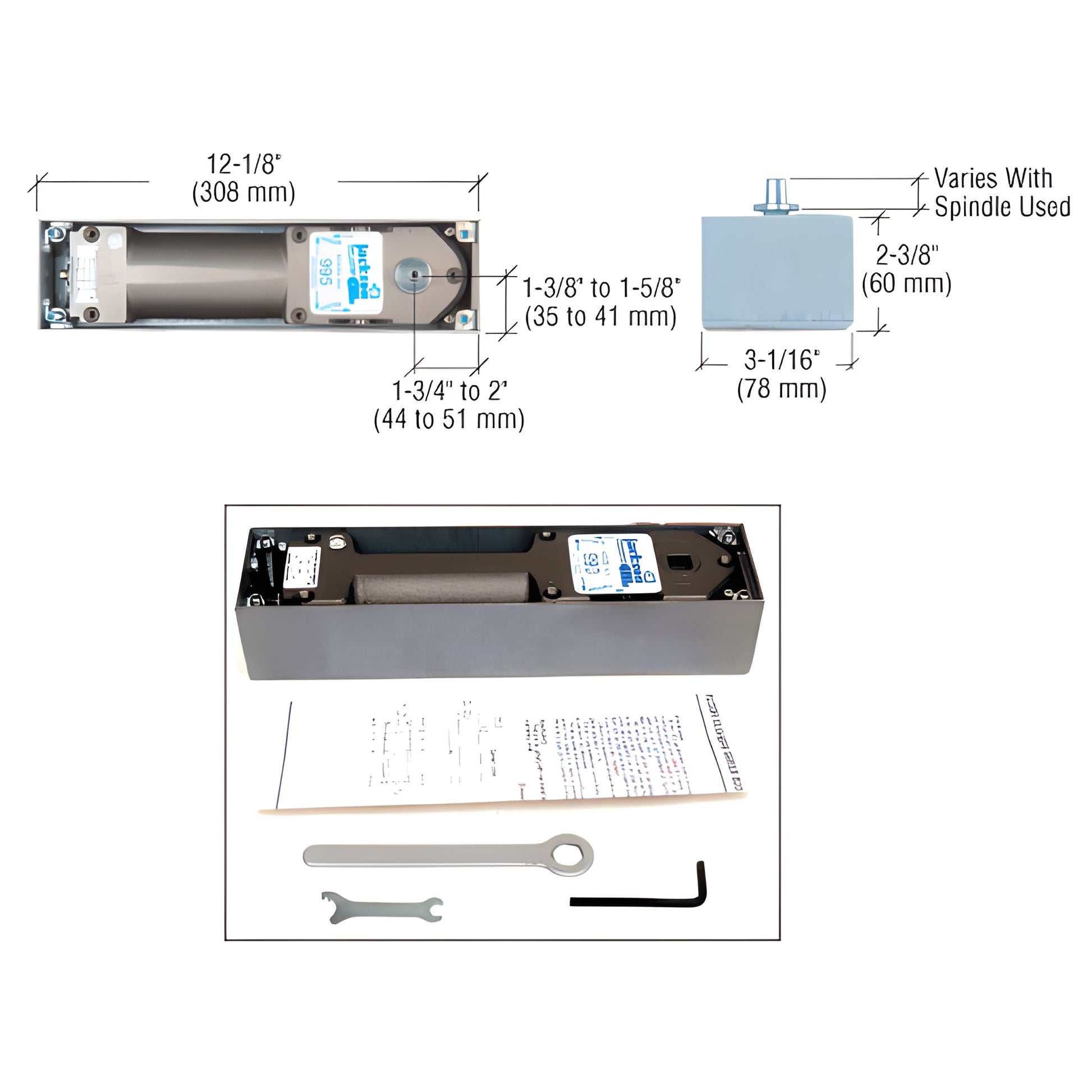

CONSISTS OF:
990 Closer Body
Cement Case
Installation Tool Package

SPECIFICATIONS:
Maximum center-hung door: Weight = 1000 lbs. (454 kg), Width = 54" (1.37 m)
Maximum 3/4" offset door: Weight = 650 lbs. (295 kg), Width = 48" (1.22 m)
Maximum 1-1/2" offset door: Weight = 300 lbs. (136 kg), Width = 42" (1.07 m)
Adjustable spring power: Multi-Size 1–6
Door centering adjustment: 6° range to align double doors
Hold/no-hold models: Hold-open at 90° & 120° (dual) or 105° only

Jackson 900 closer cover plate accepts flat head screws M6 x 1.0 (length determined by application).

Product Warning:

Closers set to comply with A.D.A. opening forces may not provide adequate spring power to close the door under all site conditions or door sizes. Verify suitability for your installation.
