CRL Jackson 900 Floor Closer 180° Swing, 85° Backcheck, No Hold-Open

• 1000 lb capacity, 54" (1.37 m) center-hung doors
• Multi-size spring power adjustable (Sizes 1–6)
• Interchangeable spindle heights
• Leveling and door centering adjustments (6° range)
• 10 Year Limited Warranty
• UL Listed
• BS EN1154 - Classification 3.8.6/1.1.1.3

The CRL Jackson® 900 Series Multi-Sized Floor Mounted Door Closer (SKU: J995BCD) is a heavy-duty, fully adjustable floor-mounted door closer engineered for new construction and retrofit applications. With a 1,000 lb (453 kg) capacity, thermal-stable multi-viscosity fluid and temperature-sensitive valves, the 900 Series provides seasonal adaptability and reliable, low-maintenance performance on larger interior and exterior doors.

Available in Hold Open and No Hold Open models: dual 90°/120° and 105° only. Accessories support both single and double-acting doors, center-hung and offset installations. The closer can be set to ADA opening forces (5 or 8.5 lbs) while offering a unique centering adjustment for precise double-door alignment.

NOTE: Designed to open up to 180°. Use an auxiliary floor or overhead stop to limit opening less than 180°.

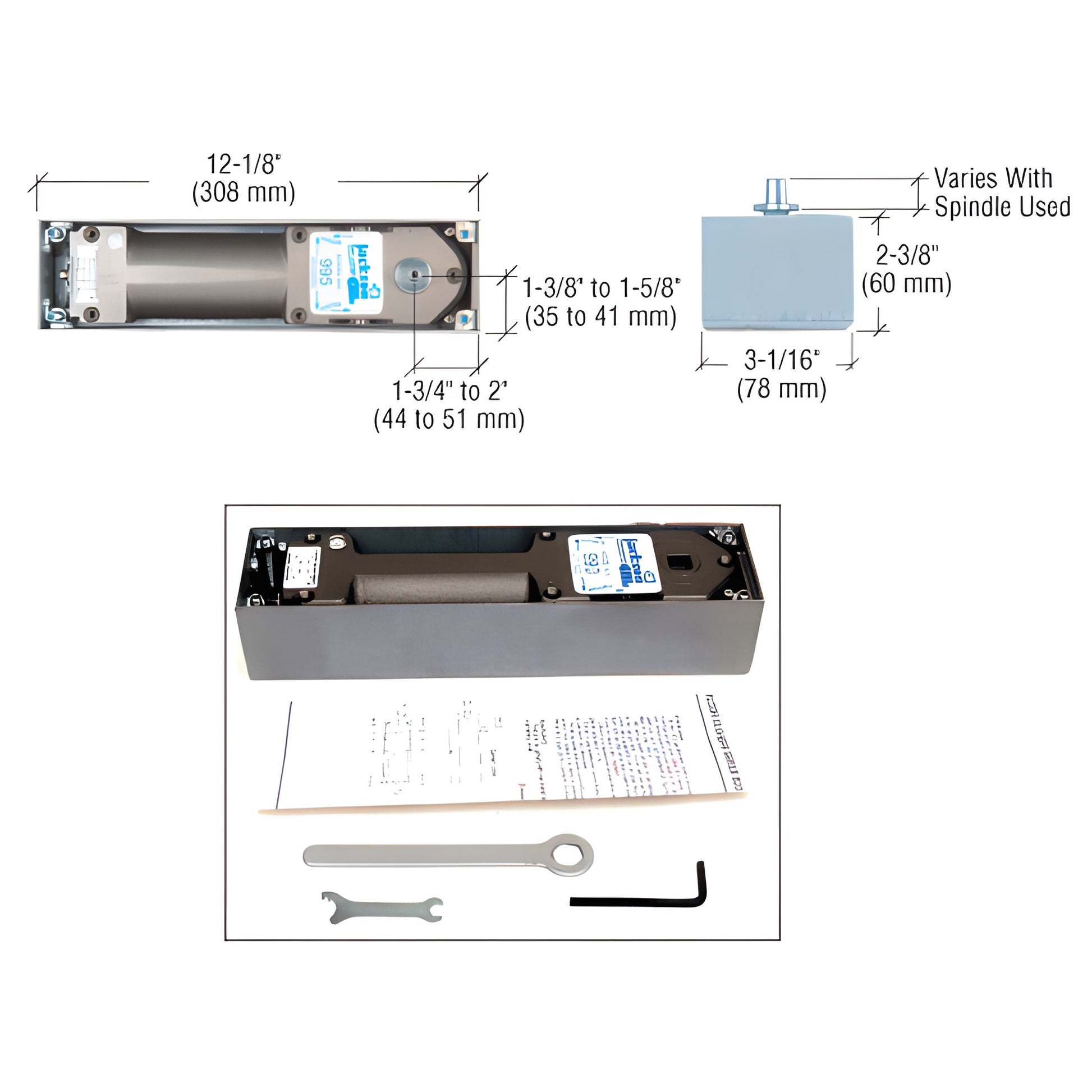

CONSISTS OF:
990 Closer Body
Cement Case
Installation Tool Package

SPECIFICATIONS:
Maximum Center-Hung Door: Weight = 1000 lbs. (454 kg), Width = 54" (1.37 m)
Maximum 3/4" Offset Door: Weight = 650 lbs. (295 kg), Width = 48" (1.22 m)
Maximum 1-1/2" Offset Door: Weight = 300 lbs. (136 kg), Width = 42" (1.07 m)
Adjustable Spring Power: Multi-Size 1 - 6
Door Centering Adjustment: 6° range to align door
Hold or No Hold Open Models: Hold Open at 90° & 120°; 105° Hold Open model available

Jackson 900 closer cover plate accepts flat head screws M6 x 1.0 (length dependent on application)

Product Warning:
Closers set to comply with ADA specified opening forces may not provide sufficient spring power to control and close the door under all site conditions and door sizes. Verify on-site performance before final installation.
