CRL Jackson 900 Floor Closer, 90/120° Dual Hold-Open, Cement Case

• 1000 lb capacity, fits doors up to 54" (1.37 m)
• Multi-size spring power, adjustable 1–6
• Interchangeable spindle heights
• Leveling and door-centering adjustments (6° range)
• 10 Year Limited Warranty
• UL Listed
• Conforms to BS EN1154 — Classification 3.8.6/1.1.1.3

The CRL Jackson® 900 Series Multi-Sized Floor Mounted Door Closer is a heavy-duty, floor-mounted door closer engineered for new construction and retrofit projects. With a 1,000 lb (453 kg) capacity, this heavy-duty floor closer supports larger interior and exterior doors for long, maintenance-free performance. Available in Hold-Open (dual 90° & 120°) and 105° Hold-Open or No-Hold-Open models.

This fully adjustable, ADA-capable door closer can be set to 5 or 8.5 lbs opening force and features a unique centering adjustment to simplify alignment on double doors. Its multi-viscosity, temperature-stabilizing fluid with thermal-sensitive valves provides seasonal adaptability, making it ideal for facilities with extreme temperature changes. Installation packages and accessories are available for center-hung and offset door applications.

NOTE: Designed to open to a maximum of 180°. Use an auxiliary floor or overhead stop to limit travel below 180°.

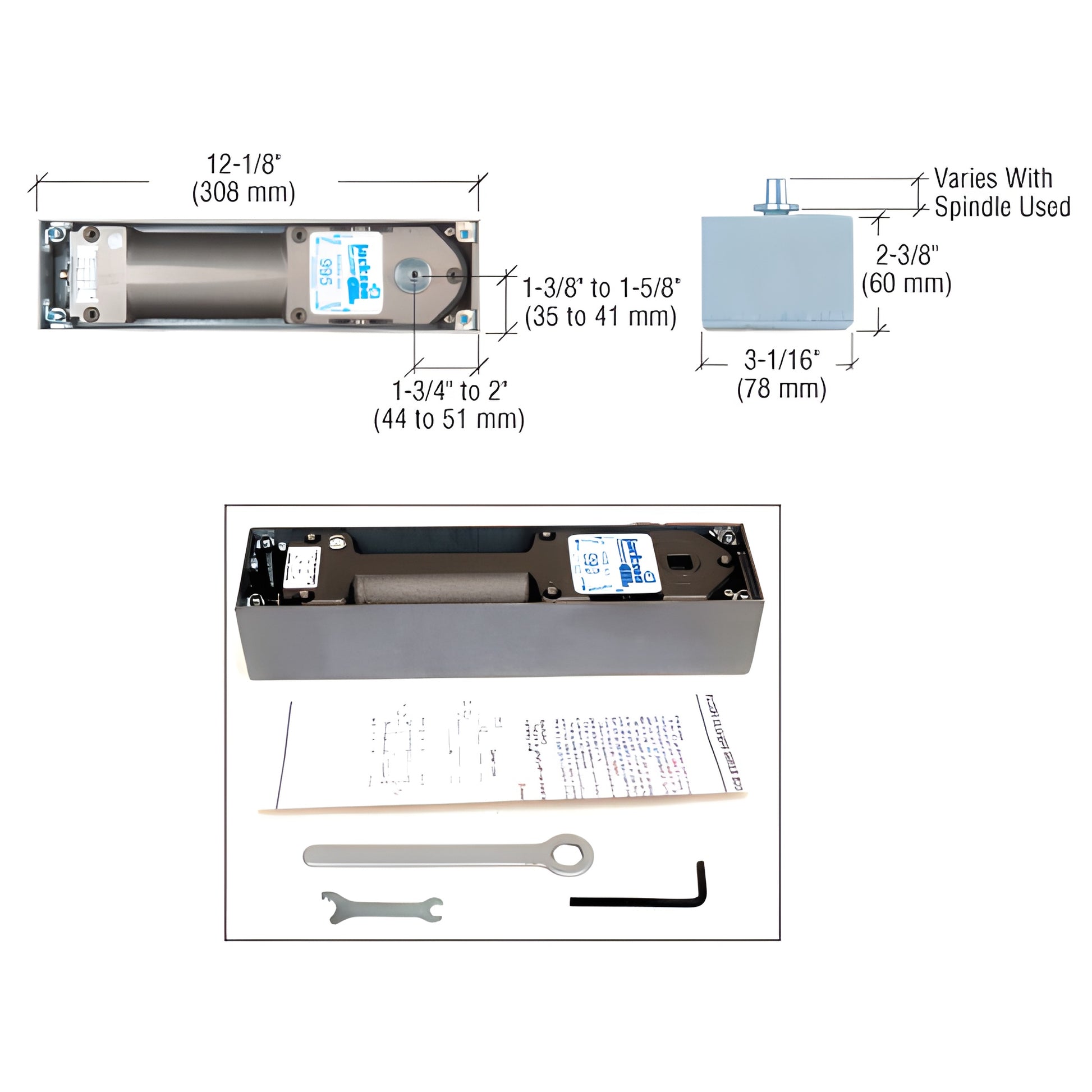

CONSISTS OF:
990 Closer Body
Cement Case
Installation Tool Package

SPECIFICATIONS:
Maximum Center-Hung Door: Weight = 1000 lbs (454 kg), Width = 54" (1.37 m)
Maximum 3/4" Offset Door: Weight = 650 lbs (295 kg), Width = 48" (1.22 m)
Maximum 1-1/2" Offset Door: Weight = 300 lbs (136 kg), Width = 42" (1.07 m)
Adjustable Spring Power: Multi-Size 1–6
Door Centering Adjustment: 6° range to align door
Hold or No Hold-Open Models: Hold-Open at 90° & 120°, or 105° only

Jackson 900 closer cover plate accepts flat head screws M6 x 1.0 (length depends on application).

Product Warning:
Closers set to meet ADA opening-force requirements may not provide sufficient spring power to control and fully close the door under all site conditions and door sizes. Verify suitability for your door application before final installation.
