CRL Jackson 900 Floor Door Closer Adj Power 90/120° Dual Hold-Open

CRL Jackson 900 Floor Door Closer Adj Power 90/120° Dual Hold-Open

$1,356.22 CAD
$1,356.22 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# J993H0N
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Adjustable Spring Size
Yes
Americans with Disabilities Act
Yes
Body Height
2-3/8
Body Length
12-1/8
Body Width
3-1/6
Closer Type
Floor Closer
Door Centering Adjustment
6 Degree Centering Range
Door Opening
180
Door Width 1 1/2 Offset
42
Door Width 3/4 Offset
48
Door Width Center Hung
54
Handing
Double Acting
Height Adjustment
Yes
Hold Open
90°, 120°
Includes
J7080, CRL9040S8, J9010, Tool Kit
Interchangeable Spindles
Yes
Interior Or Exterior Doors
Yes
Maximum Weight 3/4 Offset
650
Maximum Weight 1-1/2 Offset
300 Pounds
Maximum Weight Center Hung
1000 Pounds
Package Type
Center Hung
Recommended Door Type
Aluminum, Hollow Metal
Replacement Parts
J7080, CRL9040S8, J9010, 9015
Similar
BTS80BF, BTS802, BTS803, CRL9040CB, CRL9040TB, CRL9040AS
Spring Size
1.2.3.4.5.8
UL Listed
Yes
Visible Bubble Port For Leveling
Yes

Overview

  • 1000 lb capacity for 54" (1372 mm) doors
  • Multi-size spring power, adjustable (1–6)
  • Interchangeable spindle heights for versatile installation
  • Leveling and door centering adjustments (6° range)
  • 10 Year Limited Warranty
  • UL Listed
  • BS EN1154 — Classification 3.8.6/1.1.1.3

The CRL Jackson® 900 Series Multi-Sized Floor Mounted Door Closer (SKU: J993H0N) is a heavy-duty floor-mounted door closer engineered for new construction and retrofit projects. Designed for larger interior or exterior doors, it supports up to 1000 lb (454 kg) center-hung doors and delivers long-life, low-maintenance performance. Accessories are available for both single- and double-acting doors and for center-hung or offset applications.

This fully adjustable, ADA-capable door closer can be set to 5 or 8.5 lbs. opening force and features thermal-stable, multi-viscosity fluid with temperature-sensitive valves for reliable operation across extreme temperature changes — a key advantage when specifying an ADA-compliant, heavy-duty floor-mounted door closer. Unique centering adjustment simplifies double-door alignment. Available in Hold Open or No Hold Open configurations: dual 90°/120° Hold Open or 105° only Hold Open.

Note: Maximum opening is 180°. Use an auxiliary floor or overhead stop to limit opening to less than 180°.

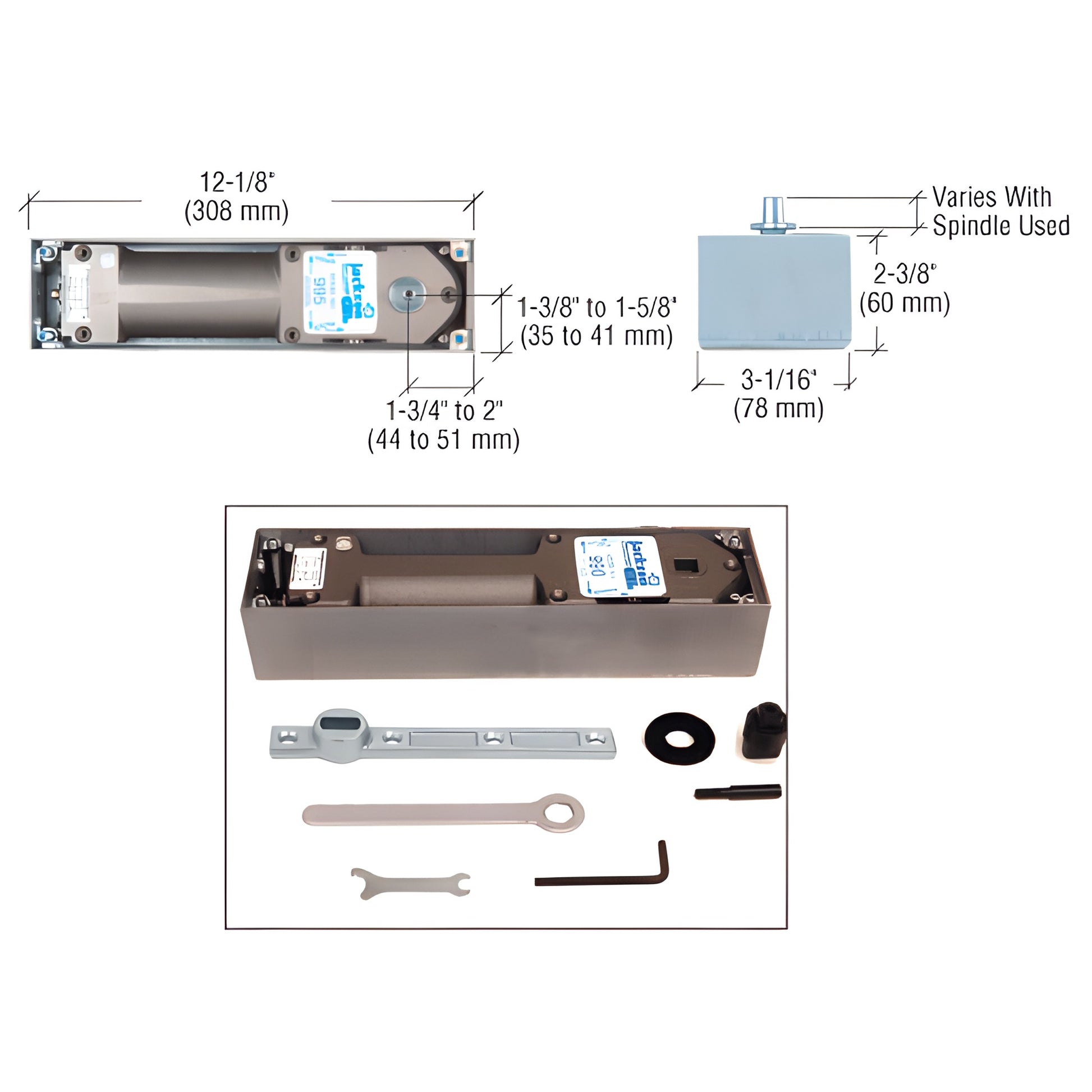

Consists of:
990 Closer Body
Cement Case
Installation Tool Package
J7080 Center-Hung Arm
CRL9040S8 Flat Tapered Spindle

Specifications:
Maximum center-hung door: Weight = 1000 lb (454 kg), Width = 54" (1.37 m)
Maximum 3/4" offset door: Weight = 650 lb (295 kg), Width = 48" (1.22 m)
Maximum 1-1/2" offset door: Weight = 300 lb (136 kg), Width = 42" (1.07 m)
Adjustable spring power: Multi-Size 1–6
Door centering adjustment: 6° range to align doors
Hold or No Hold Open models: Dual 90° & 120° hold open, or 105° only hold open
Action: Non-handed, double-acting — 180° swing

Product Warning:

Closers set to comply with ADA-specified opening forces may not provide sufficient spring power to control and fully close the door under all site conditions and door sizes. Verify application requirements before specification.
