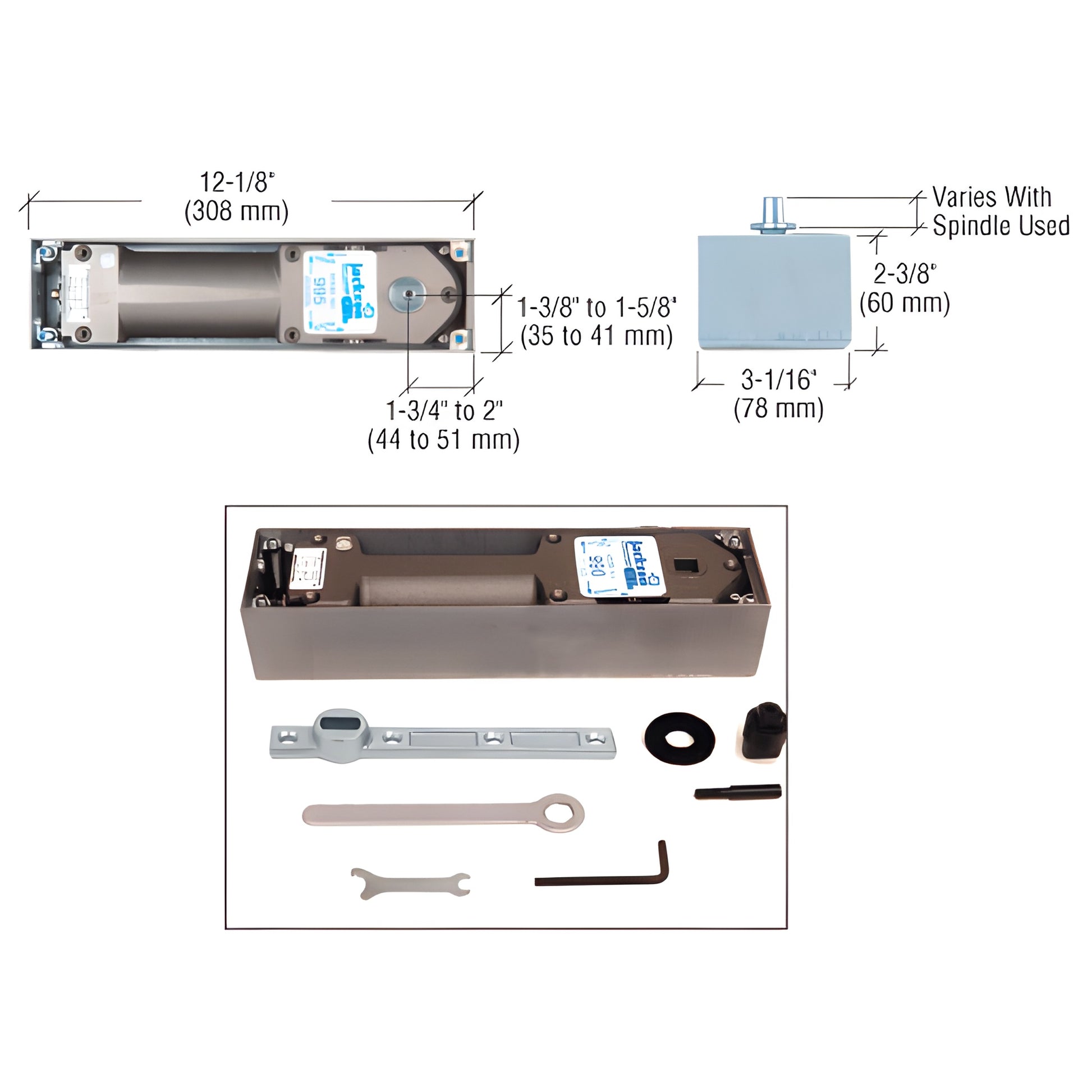

• Floor-mounted door closer kit (CRL Jackson 900 Series, SKU J990NH0N) with body, cement case, spindles and tools.
1 2

CRL

CRL Jackson® 900 Adjustable Floor Closer, Center-Hung, No Hold-Open

CRL Jackson® 900 Adjustable Floor Closer, Center-Hung, No Hold-Open

$1,393.14 CAD
$1,393.14 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# J990NH0N
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Adjustable Spring Size
Yes
Americans with Disabilities Act
Yes
Body Height
2-3/8
Body Length
12-1/8
Body Width
3-1/6
Closer Type
Floor Closer
Door Centering Adjustment
6 Degree Centering Range
Door Opening
180
Door Width 1 1/2 Offset
42
Door Width 3/4 Offset
48
Door Width Center Hung
54
Handing
Double Acting
Height Adjustment
Yes
Includes
J7080, CRL9040S8, J9010, Tool Kit
Interchangeable Spindles
Yes
Interior Or Exterior Doors
Yes
Maximum Weight 3/4 Offset
650 Pounds
Maximum Weight 1-1/2 Offset
300 Pounds
Maximum Weight Center Hung
1000 Pounds
No Hold Open
Yes
Package Type
Center Hung
Recommended Door Type
Aluminum, Hollow Metal
Replacement Parts
J7080, CRL9040S8, J9010, 9015
Similar
BTS80BF, BTS802, BTS803, CRL9040CB, CRL9040TB, CRL9040AS
Spring Size
1.2.3.4.5.9
UL Listed
Yes
Visible Bubble Port For Leveling
Yes

Overview

  • 1000 Lbs. Capacity, 54" (1.37 m) Doors
  • Multi-Size Spring Power Adjustable (1–6)
  • Interchangeable Spindle Heights
  • Leveling and Door Centering Adjustments (6° range)
  • 10 Year Limited Warranty
  • UL Listed
  • BS EN1154 - Classification 3.8.6/1.1.1.3

The CRL Jackson® 900 Series Multi-Sized Floor Mounted Door Closer (SKU: J990NH0N) is a heavy-duty, fully adjustable floor-mounted door closer engineered for new construction and retrofit applications. Designed for larger interior or exterior doors, its 1000 lb (454 kg) capacity and interchangeable spindle heights deliver long-lasting, low-maintenance performance for high-traffic commercial doors. Accessories support single- and double-acting installations, center-hung and offset mounting, and both hold-open and no-hold-open configurations.

This ADA-capable door closer can be set to 5 or 8.5 lb opening forces and features a unique centering adjustment to simplify alignment on double doors. Multi-viscosity temperature-stabilizing fluid with thermal-sensitive valves provides seasonal adaptability for sites with extreme temperature variation. Available models include dual 90°/120° hold-open, 105° hold-open only, and no hold-open versions.

NOTE: Opens to a maximum of 180°. Use an auxiliary floor or overhead stop to limit opening below 180°.

CONSISTS OF:
  • 990 Closer Body
  • Cement Case
  • Installation Tool Package
SPECIFICATIONS:
Maximum Center-Hung Door: Weight = 1000 lbs. (454 kg), Width = 54" (1.37 m)
Maximum 3/4" Offset Door: Weight = 650 lbs. (295 kg), Width = 48" (1.22 m)
Maximum 1-1/2" Offset Door: Weight = 300 lbs. (136 kg), Width = 42" (1.07 m)
Adjustable Spring Power: Multi-Size 1 - 6
Door Centering Adjustment: 6 Degree Range Adjustment to Align Door
Hold or No Hold Open Models: Hold Open at Both 90° and 120°, Hold Open at 105° Only
Action: Non-Handed, Double Acting – 180° Swing

Product Warning:

Closers set to comply with ADA opening force limits might not provide sufficient spring power to control and close the door under all site conditions and door sizes. Verify suitability for
