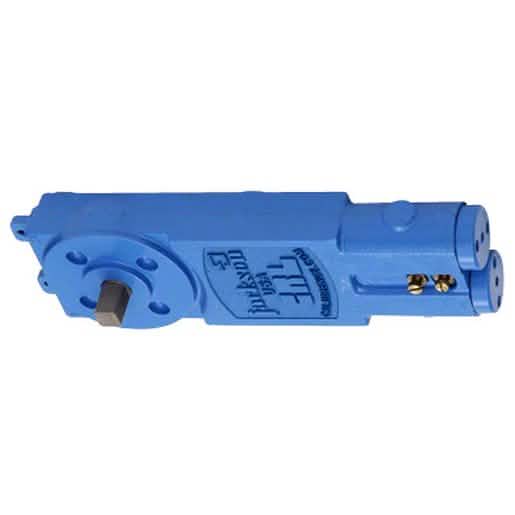

CRL Jackson® 105° Hold-Open Adjustable Concealed Door Closer 7/8"
CRL Jackson® 105° Hold-Open Adjustable Concealed Door Closer 7/8"
Regular price
$349.34 CAD
Regular price
Sale price
$349.34 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 20104M18
Shipping Weight: 8.6 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 8.6 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Americans with Disabilities Act
Yes
Body Height
1-11/16 in. (42.9 mm)
Body Length
11-5/8 in. (295.3 mm)
Body Width
3-11/16 in. (93.7 mm)
Case Quantity
4
Closer Type
Overhead Concealed
Door Height
96 in. (2438.4 mm)
Handing
Double Acting
Hold Open
105°
Maximum Door Weight
250 lbs. (113.4 kg)
Maximum Door Width - Exterior
42 in. (1066.8 mm)
Maximum Door Width - Interior
36 in. (914.4 mm)
Recommended Door Type
Aluminum, Hollow Metal
Spindle
7/8 in. (22.2 mm)
Spring Size
Adjustable
UL Listed
Yes
Overview
- Adjustable spring power: Size 1 (Barrier-Free) to Size 4 (Regular)
- Retrofits most fixed-spring overhead concealed closers
- Standard and extended 7/8" spindle models for patch fittings and rail hardware
- 5 Year Limited Warranty

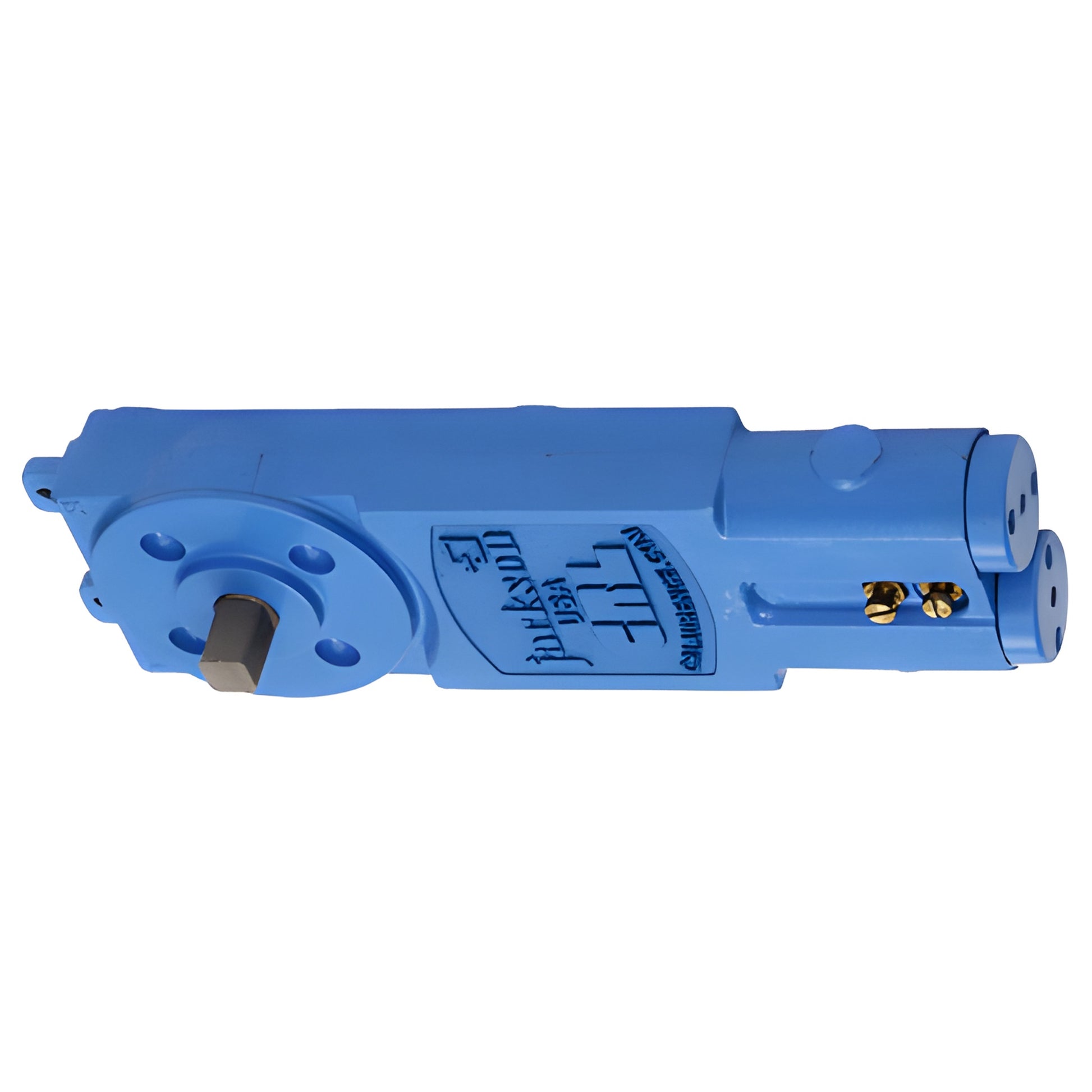

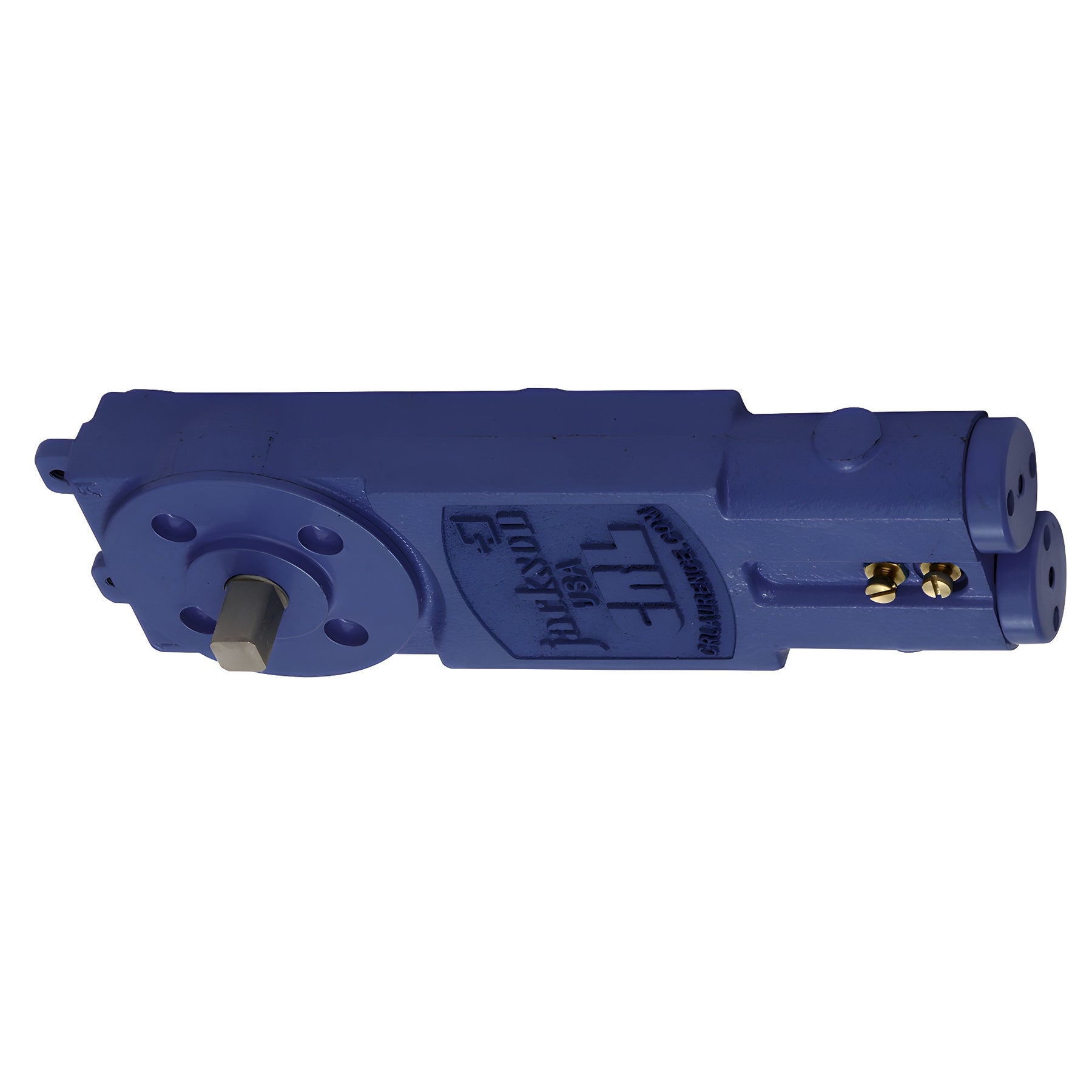

This CRL Jackson® Adjustable Spring Power Overhead Concealed Closer Body (SKU: 20104M18) is engineered for A.D.A. barrier-free applications and features a 7/8" extended spindle—the preferred length for use with patch fittings and rail hardware on glass doors. The patented Dual Compression Technology allows spring power adjustment from Size 2 through 4 for finer tension control and improved spring efficiency. Fully independent valves provide maximum adjustability to balance building codes, stack pressure and door closing requirements. This closer body easily retrofits most fixed-spring overhead concealed closers and is specified by professionals worldwide.
A.D.A. NOTE: Although the adjustable spring power closer can be tuned for site conditions, adequate closing force might not be achievable while also meeting A.D.A. opening force limits.
Product Warning:
Closers set to comply with A.D.A. opening force limits may not provide sufficient spring power to control and close the door due to varying site conditions and door size. Mounting clips are not included; if existing clips are not reused, purchase the correct clip package for your application. Contact Jackson® Technical Sales for assistance selecting the proper mounting clip package.
Order the CRL Jackson adjustable overhead concealed closer body (SKU: 20104M18) today to upgrade or retrofit your glass door hardware.
