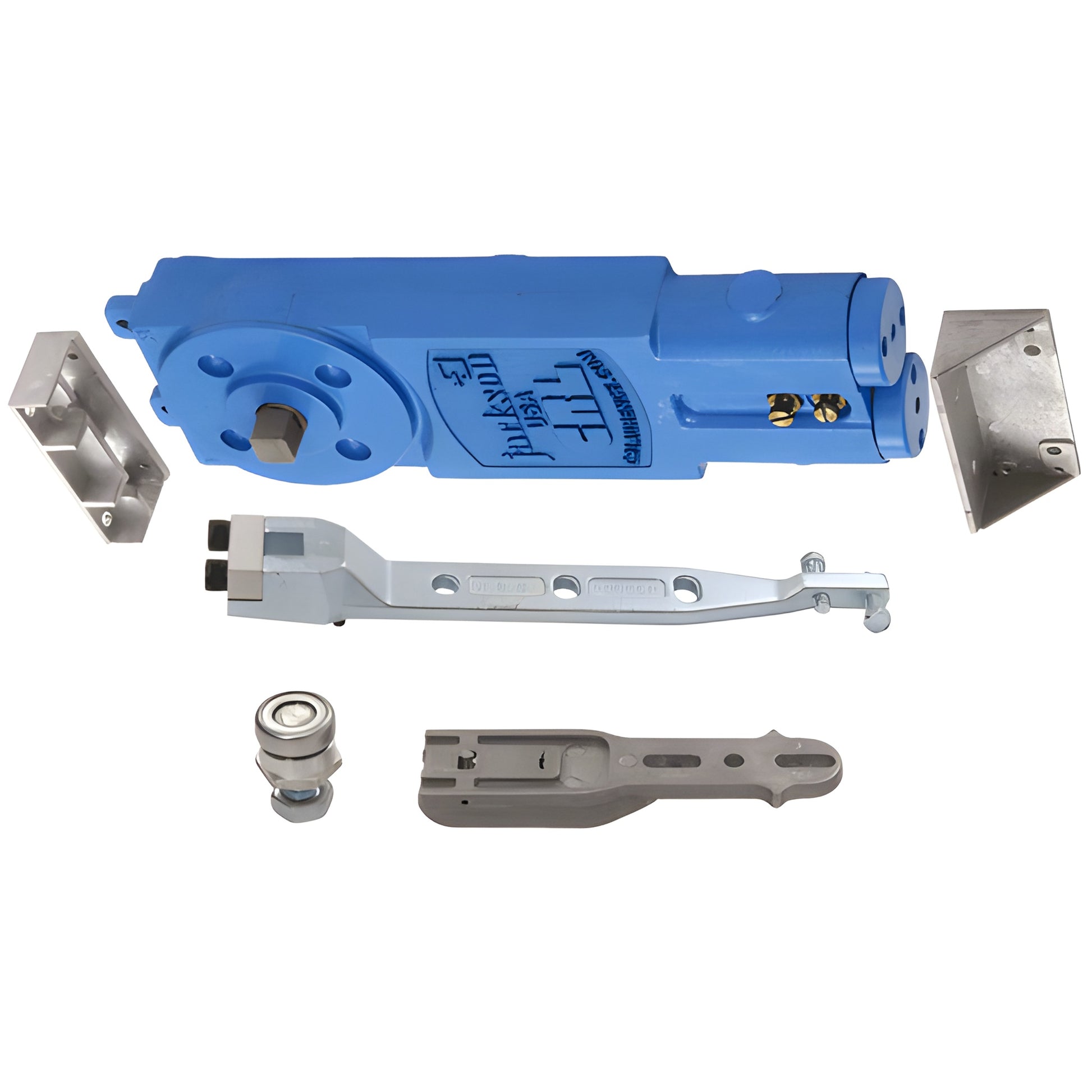

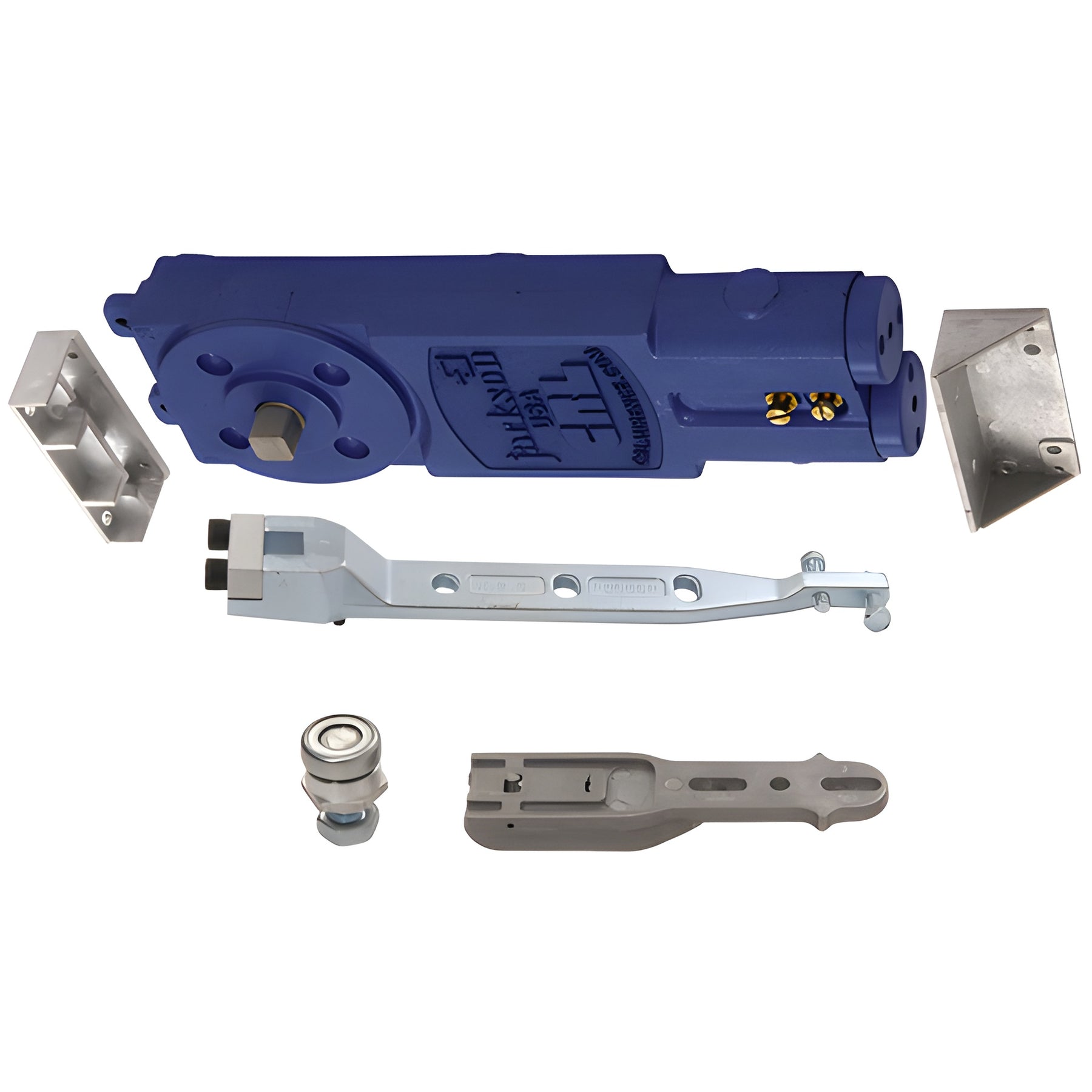

CRL Jackson® 105° Hold-Open Overhead Concealed Door Closer, 1" Rail
CRL Jackson® 105° Hold-Open Overhead Concealed Door Closer, 1" Rail
Regular price
$414.67 CAD
Regular price
Sale price
$414.67 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 21101A18
Shipping Weight: 13.14 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 13.14 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Americans with Disabilities Act
Yes
Arm Type
End Load
Body Height
1-11/16
Body Length
11-5/8
Body Width
3-11/16
Bottom Door Rail Depth
1
Bottom Pivot Type
Threshold Mount Pivot
Brand
Jackson
Closer Type
Overhead Concealed
Handing
Double Acting
Hold Open
105°
Includes
20101M18, 20640, 202000, 20728
Material
Aluminum
Maximum Door Weight
250
Package Type
End Load A
Recommended Door Type
Aluminum, Hollow Metal
Replacement Parts
ELB2, ELS1
Similar
CRL8770A
Spindle
1/2
Spring Size
Adjustable
Top Rail Depth
1
Type
Center Hung
UL Listed
Yes
Overview
- Suitable for doors 30" to 48" (762 mm to 1.22 m) wide to meet A.D.A. opening force requirements
- Threshold-mounted pivot for 1" (25 mm) deep bottom rail
- 5-Year limited warranty
- UL Listed
CRL Jackson® Adjustable Spring Power Overhead Concealed Door Closer — SKU: 21101A18 — a versatile, concealed door closer engineered for A.D.A. barrier-free openings. Adjustable from Size 1 (Barrier-Free) through Size 4 (Regular) to set spring power for A.D.A. opening force compliance while providing reliable control across a range of door types and sizes. Ideal when you need an adjustable spring power concealed door closer for ADA-compliant entrances.
A.D.A. NOTE: Although adjustable to compensate for site conditions, closers set to A.D.A. opening force limits may not generate enough closing force for some door sizes or conditions.
INSTALLATION NOTE: Use an auxiliary floor or overhead door stop to prevent damage from over-extension of maximum allowable door swing.
Product Warning: Closers adjusted to A.D.A. specified opening forces might not provide adequate spring power to control and close the door depending on site conditions and door size.
Choose this adjustable, ADA-capable concealed door closer for dependable, code-aware door control — order SKU 21101A18 today.
