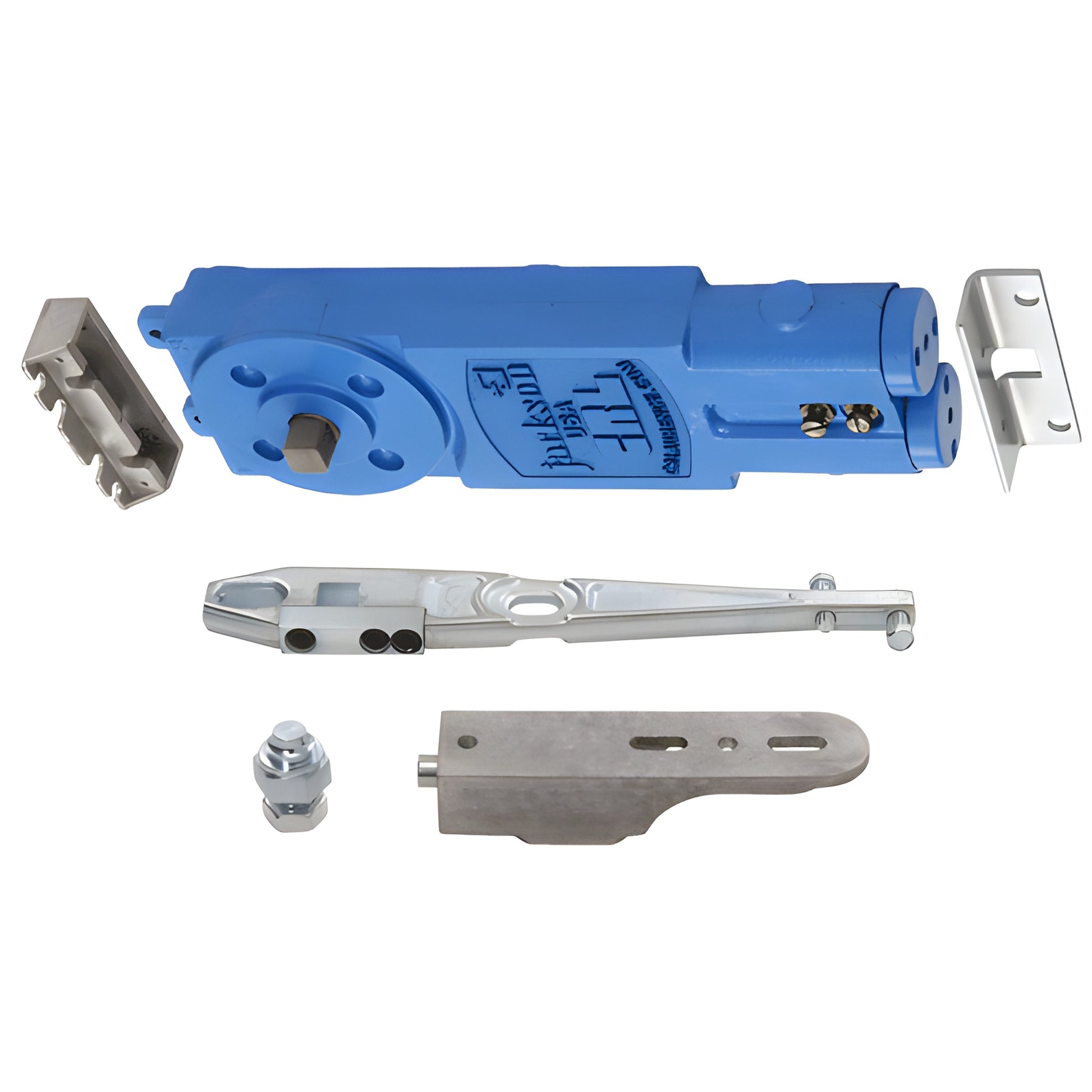

• CRL Jackson adjustable overhead concealed door closer kit-blue aluminum body with arm, threshold pivot and mounting hardware
1 2

CRL

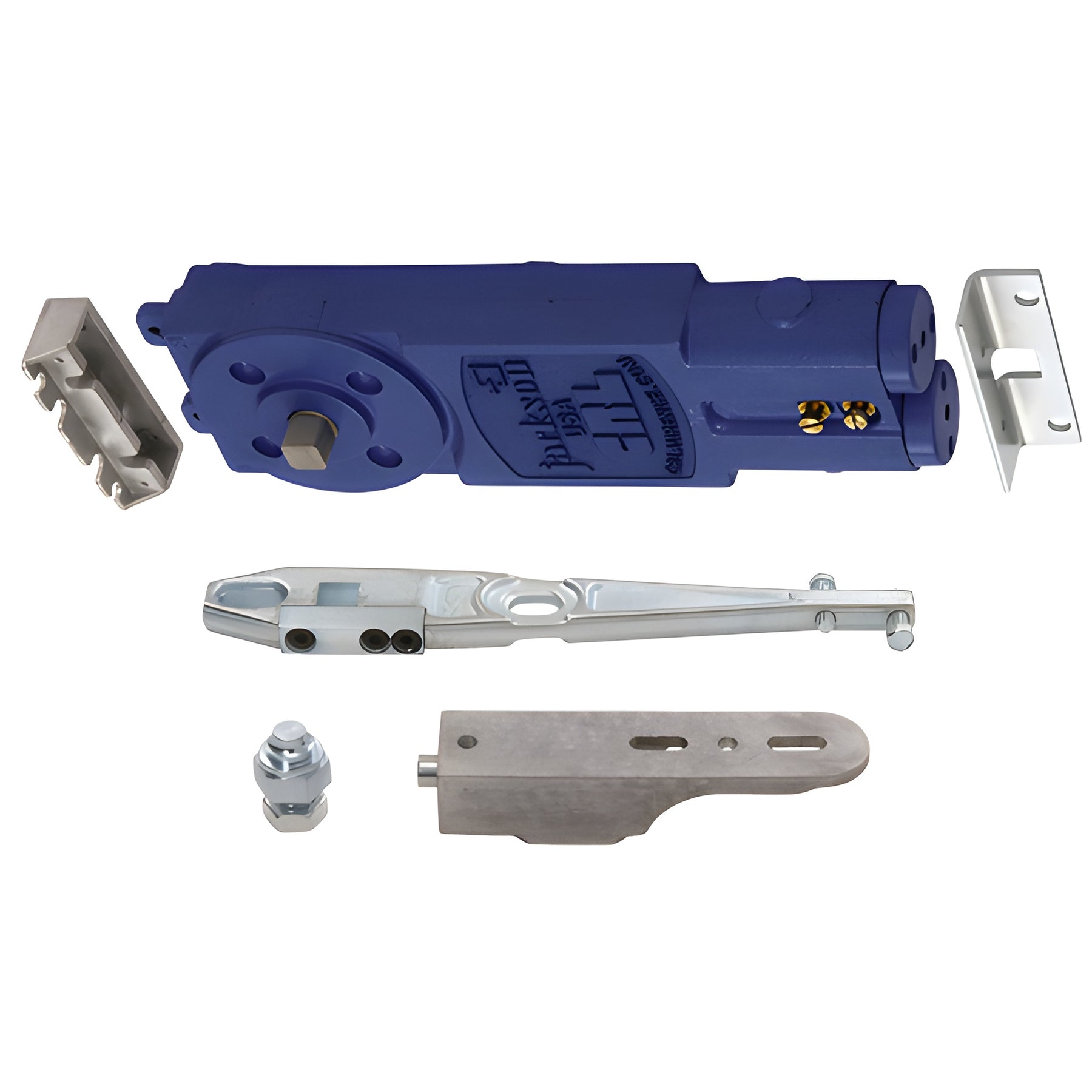

CRL Jackson® Concealed Door Closer 105° Hold-Open, Adj Spring, GE pkg

CRL Jackson® Concealed Door Closer 105° Hold-Open, Adj Spring, GE pkg

$418.93 CAD
$418.93 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# 21101GE18
Shipping Weight: 11.25 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Americans with Disabilities Act
Yes
Body Height
1-11/16
Body Length
11-5/8
Body Width
3-11/16
Bottom Door Rail Depth
1-1/2
Bottom Pivot Type
Threshold Mount Pivot
Brand
Jackson
Closer Type
Overhead Concealed
Handing
Double Acting
Hold Open
105°
Includes
20101M18, 20219, 20400B, 20944
Material
Aluminum
Maximum Door Weight
250
Package Type
Side Load GE
Recommended Door Type
Aluminum, Hollow Metal
Replacement Parts
20190628, 20190313, 20510, HMC035, DCHSAS, CRL8010SCP, SLB3, SLS1
Similar
21101U18, 21101S18
Spindle
1/2
Spring Size
Adjustable
Top Rail Depth
1/2
Type
Center Hung
UL Listed
Yes

Overview

  • Suitable for doors 30" to 48" (762 mm to 1.22 m) wide — meets A.D.A. opening force requirements
  • Threshold-mounted pivot for 1-1/2" (38 mm) deep bottom rail
  • 3/16" (5 mm) height adjustment
  • UL Listed
  • 5 Year Limited Warranty

This CRL Jackson® Adjustable Spring Power Overhead Concealed Door Closer (SKU 21101GE18) is designed for A.D.A. barrier-free applications and adjustable from Size 1 (Barrier-Free) through Size 4 (Regular). The adjustable spring power lets you set opening force to meet A.D.A. requirements while providing reliable door control across a wide range of door types and sizes — a versatile, ADA-compliant concealed door closer solution for commercial and institutional installations.

A.D.A. NOTE: Although the adjustable spring power can compensate for many site conditions, adequate closing force might not be obtained while complying with A.D.A. opening force requirements.

NOTE: Use an auxiliary floor or overhead door stop to prevent damage to the closer and entryway from over-extension of maximum door swing.

The "GE" Package includes CRL8010FS standard mounting clips, CRL8010S side load arm assembly, and CRL8010GE bottom pivot. Intended for new installations with 1/2" (12.7 mm) deep top rail and side-load applications, the package also retrofits existing Jackson® and similar fixed-size closer installations — ideal when you need a threshold-mounted, concealed, adjustable, ADA-compliant door closer with simple retrofit capability.

Product Warning:

Closers set to comply with A.D.A. specified opening forces might not provide adequate spring power to control and close the door due to varying site conditions and door size.

Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and monitor settings.



Order SKU 21101GE18 or contact CRL Customer Service for technical assistance and
