CRL Jackson 105° Concealed Overhead Door Closer, Adjustable, GE Pack
CRL Jackson 105° Concealed Overhead Door Closer, Adjustable, GE Pack
Regular price
$443.07 CAD
Regular price
Sale price
$443.07 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 21101GE17
Shipping Weight: 11.47 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 11.47 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Americans with Disabilities Act
Yes
Body Height
1-11/16
Body Length
11-5/8
Body Width
3-11/16
Bottom Door Rail Depth
1-1/2
Bottom Pivot Type
Threshold Mount Pivot
Brand
Jackson
Closer Type
Overhead Concealed
Handing
Double Acting
Includes
20101M17, 20219, 20400B, 20944
Material
Aluminum
Maximum Door Weight
250
No Hold Open
105°
Package Type
Side Load GE
Recommended Door Type
Aluminum, Hollow Metal
Replacement Parts
20190628, 20190313, 20510, HMC035, DCHSAS, CRL8010SCP, SLB3, SLS1
Similar
21101U17, 21101S17
Spindle
1/2
Spring Size
Adjustable
Top Rail Depth
1/2
Type
Center Hung
UL Listed
Yes
Overview
- Suitable for doors 30" to 48" (762 mm to 1.22 m) wide to meet A.D.A. opening force requirements
- Threshold-mounted pivot for 1-1/2" (38 mm) deep bottom rail
- 3/16" (5 mm) height adjustment
- UL Listed
- 5 Year Limited Warranty
CRL Jackson® Adjustable Spring Power Overhead Concealed Door Closer — adjustable from Size 1 (Barrier-Free) through Size 4 (Regular) to set spring power for A.D.A. handicap opening force requirements. Ideal for retrofit and new installations where a concealed, adjustable overhead closer is needed for barrier-free entry and a wide range of door sizes.
A.D.A. NOTE: While the closer can be adjusted to meet A.D.A. opening force limits, some site conditions and larger door sizes may prevent obtaining adequate closing force when set to A.D.A. limits.
NOTE: Use an auxiliary floor or overhead door stop to prevent over-extension of maximum door swing and possible damage to the closer or doorway.

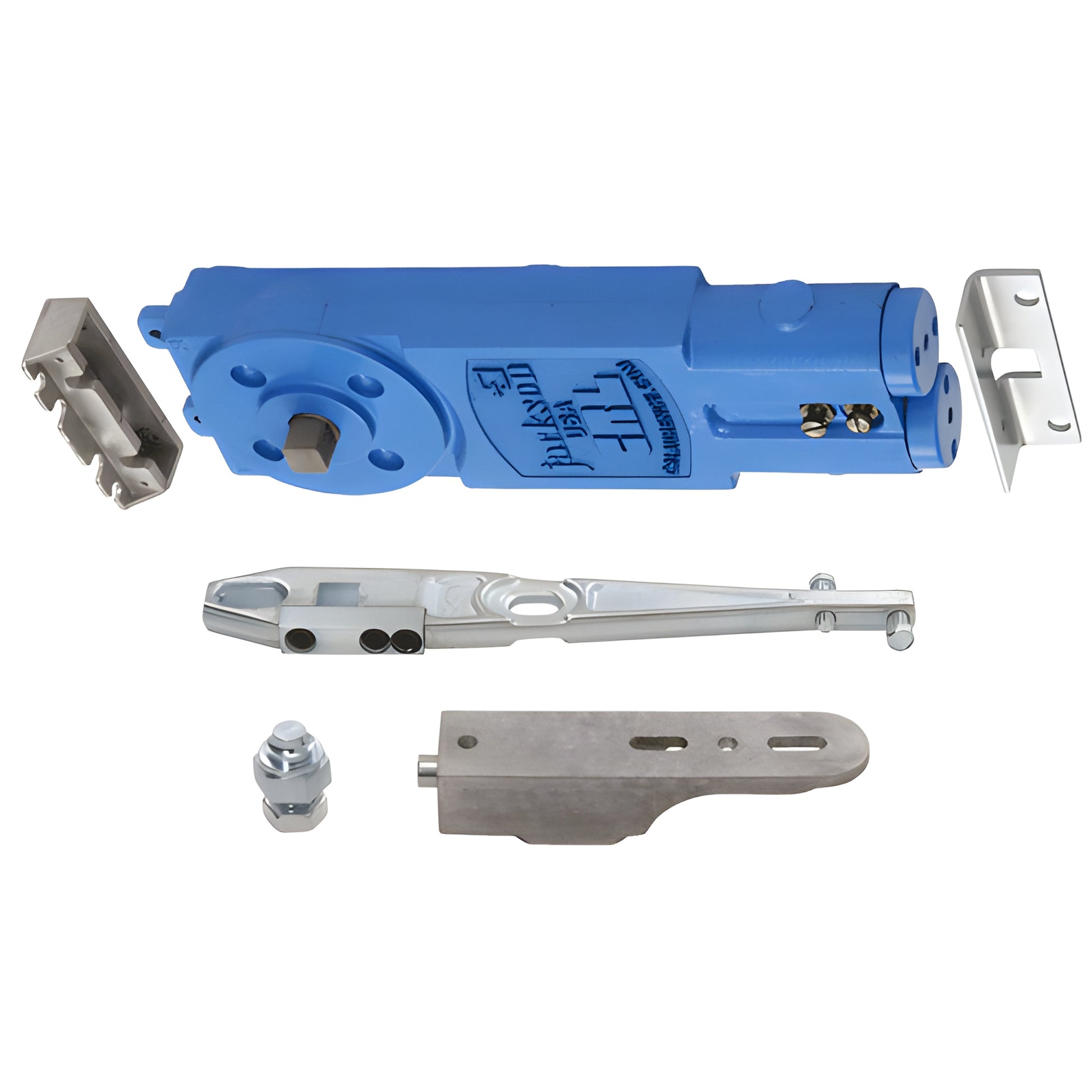

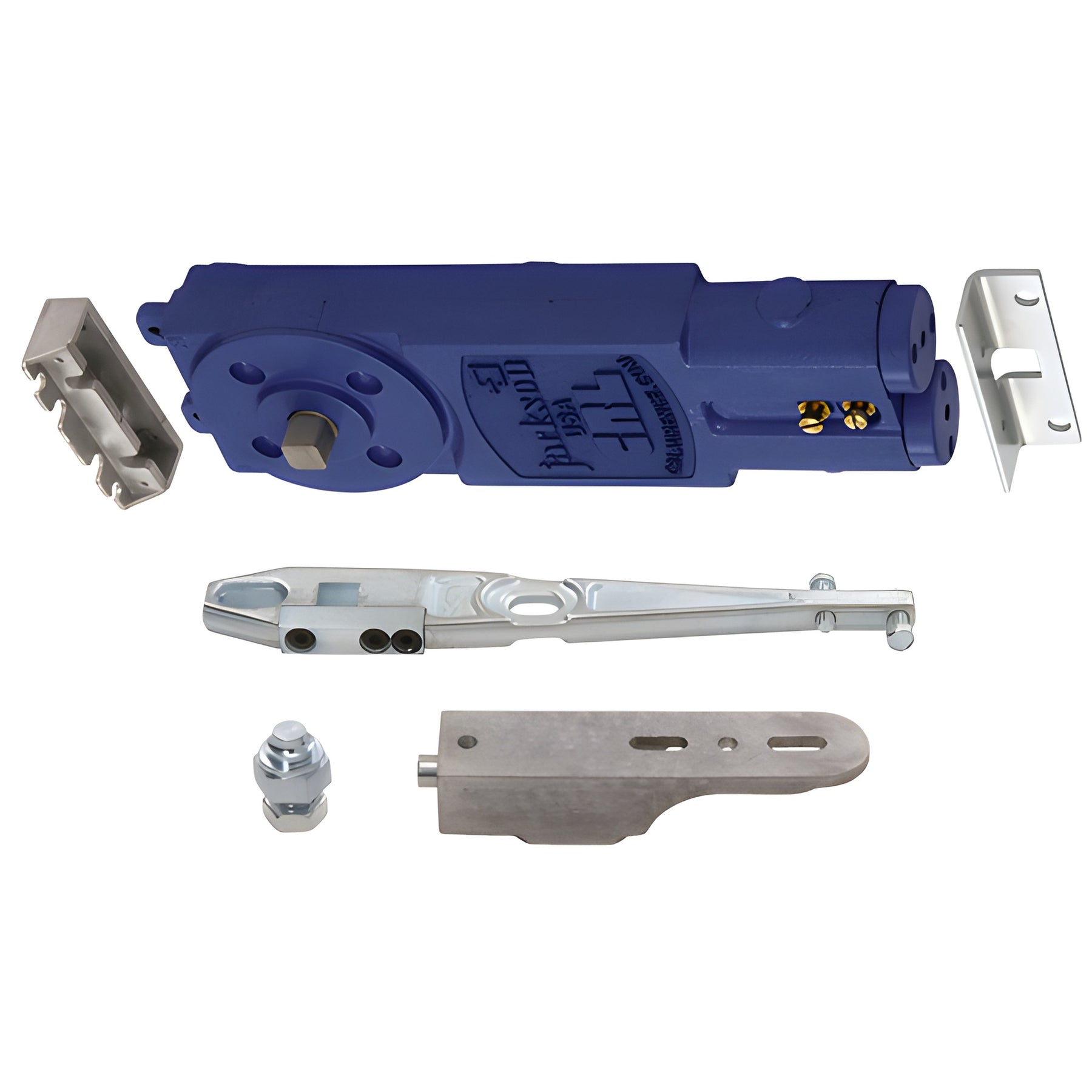

"GE" Package: includes CRL8010FS standard mounting clips, CRL8010S side load arm assembly, and CRL8010GE bottom pivot — optimized for new installations with 1/2" (12.7 mm) deep top rail and side-load applications. Also compatible as a retrofit for Jackson® and similar fixed-size closer installations.
Product Warning: Closers set to comply with A.D.A. specified opening forces might not provide adequate spring power to control and close the door under all site conditions and door sizes.
SKU: 21101GE17
Buy now — order the CRL Jackson® GE package adjustable concealed door closer for versatile, ADA-capable overhead door control.
