CRL

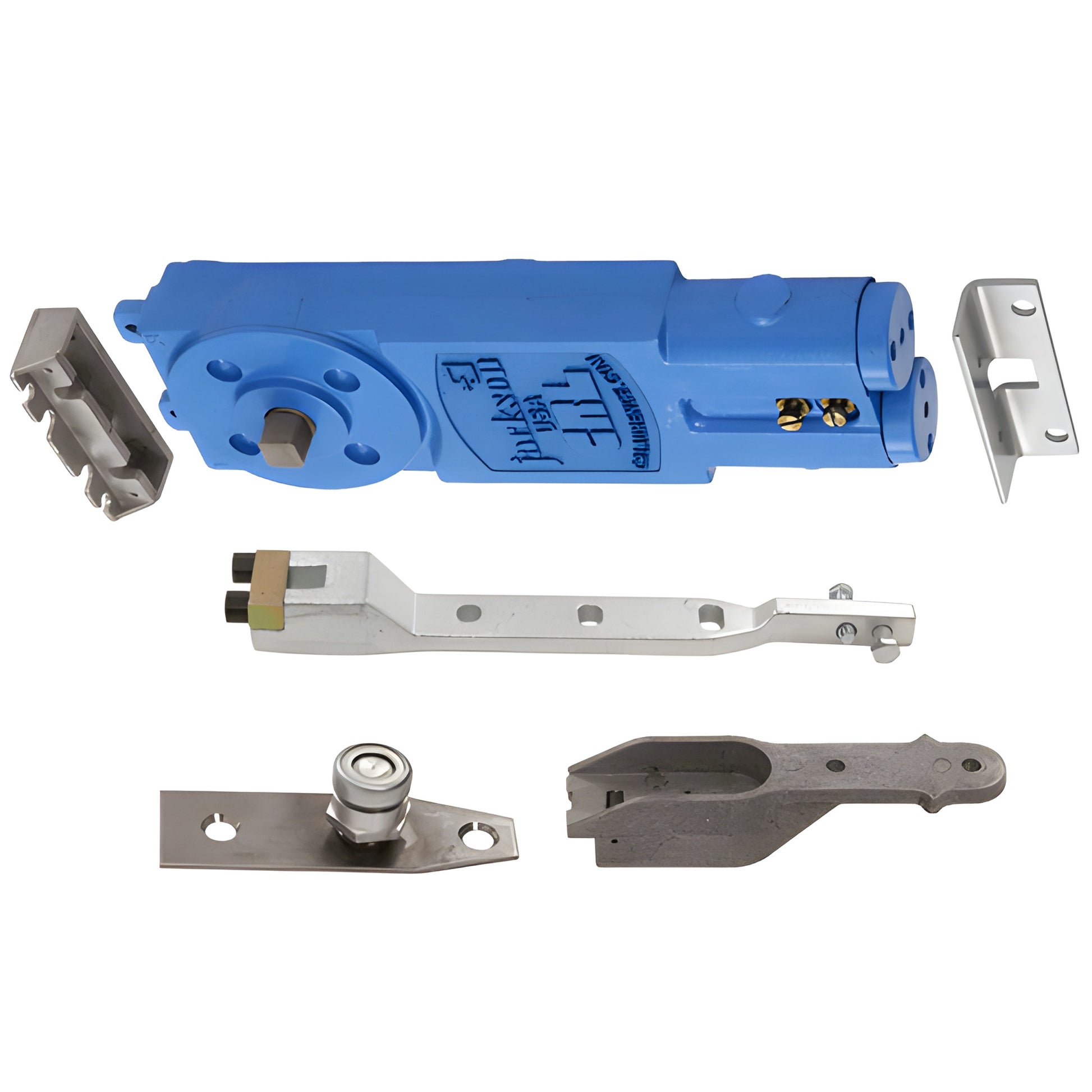

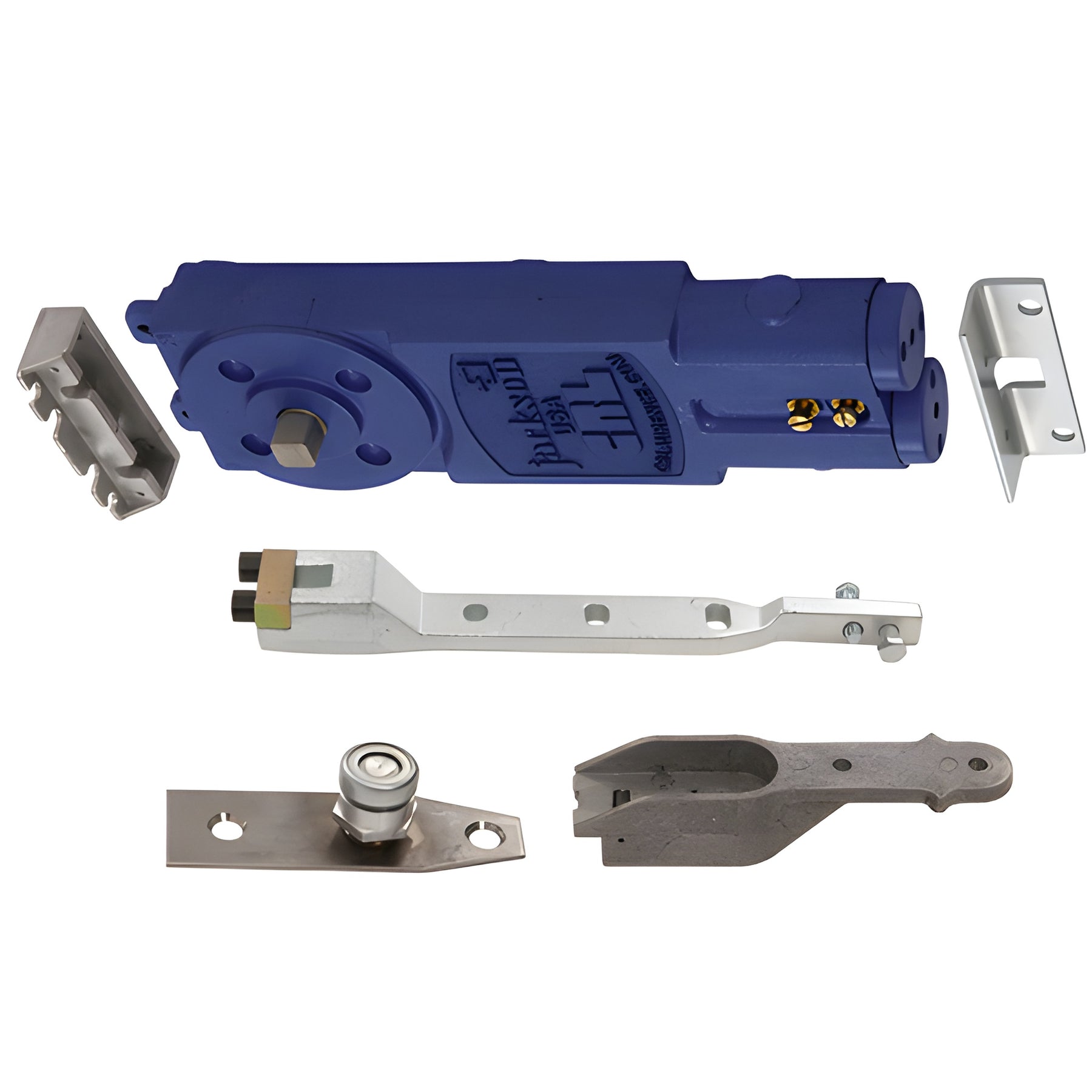

CRL Jackson 90° Hold-Open Overhead Concealed Door Closer for 1" Rail
CRL Jackson 90° Hold-Open Overhead Concealed Door Closer for 1" Rail
Regular price
$424.62 CAD
Regular price
Sale price
$424.62 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 21101AP20
Shipping Weight: 11.2 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 11.2 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Americans with Disabilities Act
Yes
Arm Type
End Load
Body Height
1-11/16
Body Length
11-5/8
Body Width
3-11/16
Bottom Door Rail Depth
1-9/16
Bottom Pivot Type
Floor Mount Pivot
Brand
Jackson
Closer Type
Overhead Concealed
Handing
Double Acting
Hold Open
90°
Includes
20101M20, 20219, 202000, 201060
Material
Aluminum
Maximum Door Weight
250
Package Type
End Load AP
Recommended Door Type
Aluminum, Hollow Metal
Replacement Parts
ELB2, ELS1
Similar
CRL8760A, 21101A20
Spindle
1/2
Spring Size
Adjustable
Top Rail Depth
1
Type
Center Hung
UL Listed
Yes
Overview
- Suitable for doors 30" to 48" (762 mm to 1.22 m) wide to meet A.D.A. opening force requirements
- Floor-mounted pivot for 1-9/16" (40 mm) deep bottom rail
- 5-year limited warranty
- UL listed
This CRL Jackson® Adjustable Spring Power Overhead Concealed Door Closer (SKU: 21101AP20) is designed for A.D.A. barrier-free applications. The adjustable spring power ranges from Size 1 (Barrier-Free) through Size 4 (Regular), allowing installers to set the closing force to meet A.D.A. opening-force limits while still providing control for a wide variety of door types and sizes. Its concealed overhead design and floor-mounted pivot make it a versatile choice for commercial and institutional doors requiring an ADA-compliant, low-profile closer.
A.D.A. NOTE: Although the adjustable spring power can be reduced to meet A.D.A. opening-force limits, site conditions and larger door sizes may prevent adequate closing force while remaining compliant.
NOTE: Install an auxiliary floor or overhead door stop to prevent damage from over-extension of the maximum allowable door swing.
Product Warning:
Closers set to comply with A.D.A. opening-force specifications may not provide enough spring power to reliably control and close certain doors under varying site conditions and door sizes.
Shop SKU 21101AP20 now — order today for ADA-compliant concealed door control.
