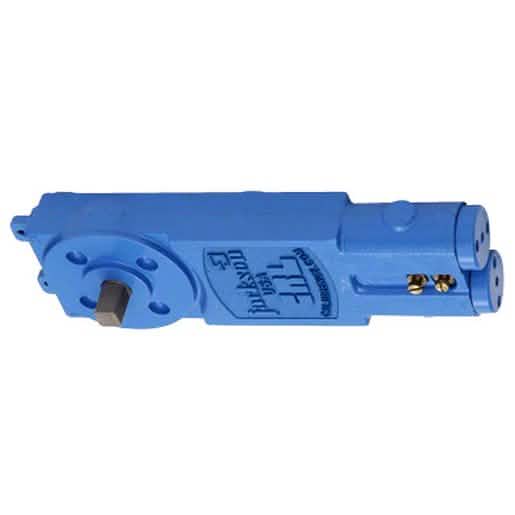

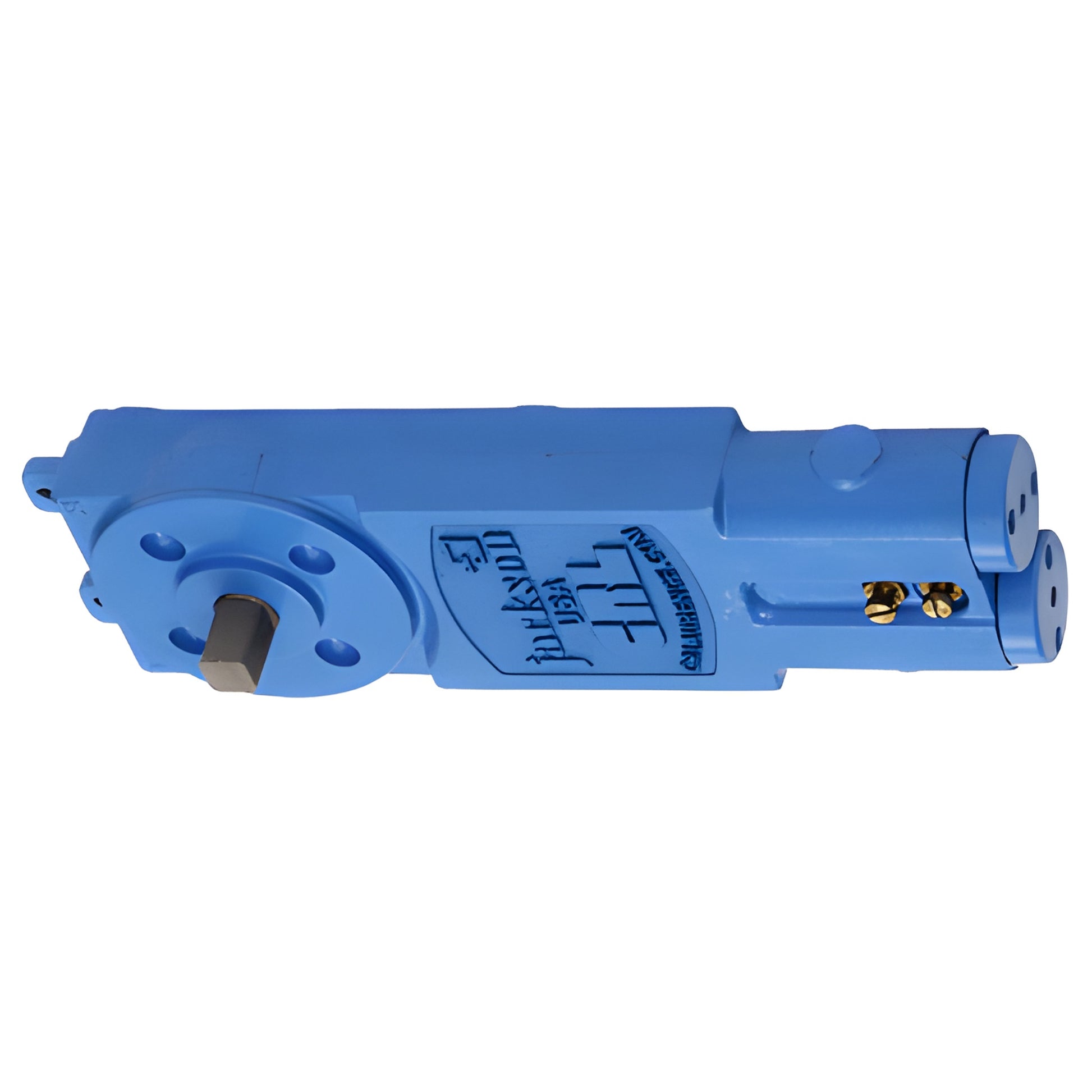

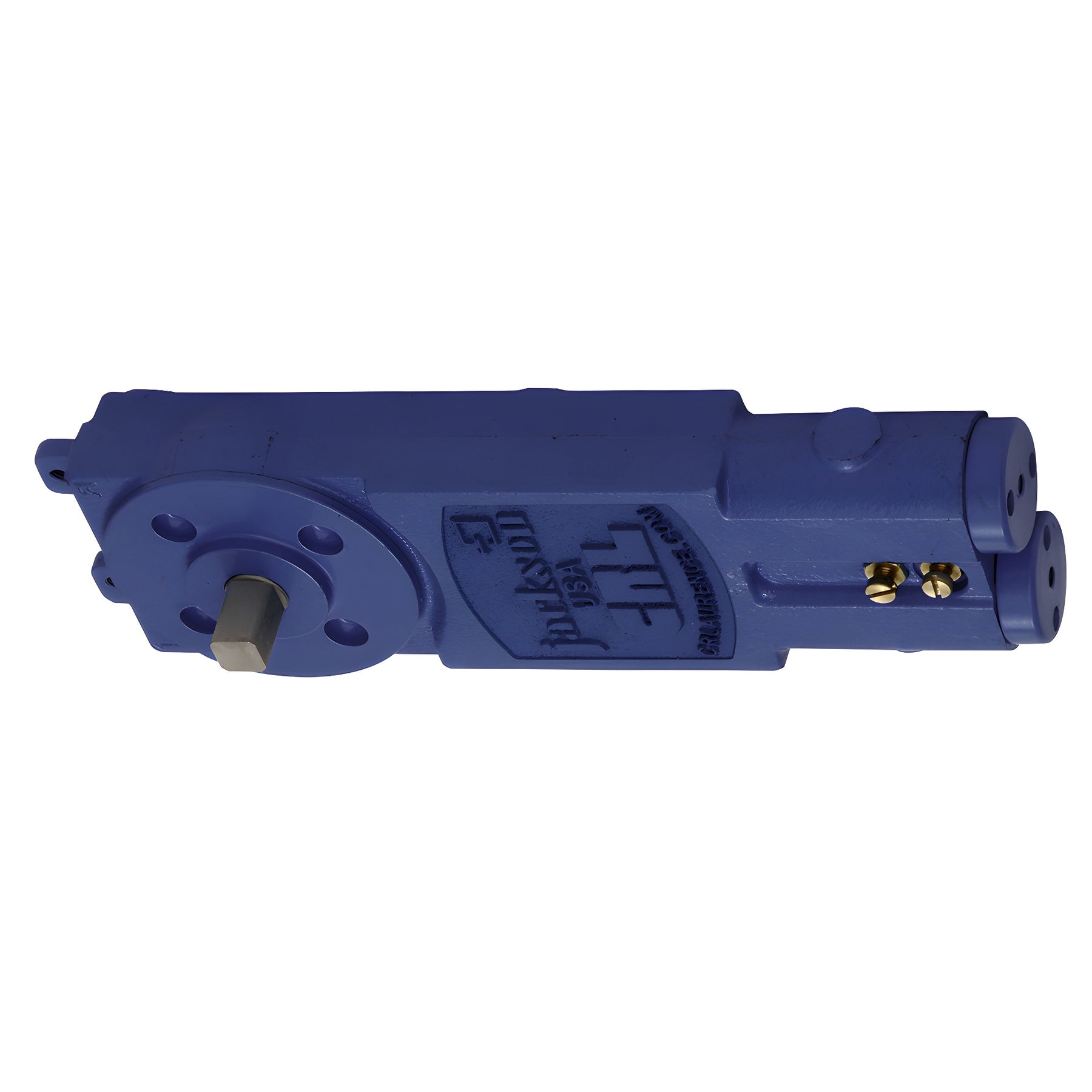

CRL Jackson® Adjustable Spring Power 90º No Hold Open Overhead Concealed Closer with 7/8" Extended Spindle
CRL Jackson® Adjustable Spring Power 90º No Hold Open Overhead Concealed Closer with 7/8" Extended Spindle
Regular price
$355.13 CAD
Regular price
Sale price
$355.13 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 20104M19
Shipping Weight: 9.1 Pounds
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 9.1 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Description
| Americans with | Disabilities Act Yes |
| Body Height 1-11/16 in. | (42.9 mm) |
| Body Length 11-5/8 in. | (295.3 mm) |
| Body Width 3-11/16 in. | (93.7 mm) |
| Case Quantity | 4 |
| Closer | Type Overhead Concealed |
| Door Height 96 in. | (2438.4 mm) |
| Handing | Double Acting |
| Maximum Door Weight 250 lbs. | (113.4 kg) |
| Maximum Door Width - Exterior 42 in. | (1066.8 mm) |
| Maximum Door Width - Interior 36 in. | (914.4 mm) |
| No Hold Open | 90° |
| Recommended | Door Type Aluminum, Hollow Metal |
| Spindle 7/8 in. | (22.2 mm) |
| Spring | Size Adjustable |
| U | L Listed Yes |
Overview
The CRL Jackson® Adjustable Spring Power Overhead Concealed Closer Body is ideal for A.D.A.
barrier-free applications, featuring an adjustable spring power size from 1 (Barrier-Free) to 4 (Regular).
This versatile door closer is designed to retrofit existing fixed spring closers and comes in both standard and extended spindle models.
Utilizing Patented Dual Compression Technology, it offers fine spring tension adjustment and greater efficiency, allowing professionals to balance building codes, stack pressure, and door closure with ease.
Please note that while it can be adjusted for site conditions, it may not fully comply with A.D.A.
opening force requirements; additional mounting clips may be necessary for installation.
barrier-free applications, featuring an adjustable spring power size from 1 (Barrier-Free) to 4 (Regular).
This versatile door closer is designed to retrofit existing fixed spring closers and comes in both standard and extended spindle models.
Utilizing Patented Dual Compression Technology, it offers fine spring tension adjustment and greater efficiency, allowing professionals to balance building codes, stack pressure, and door closure with ease.
Please note that while it can be adjusted for site conditions, it may not fully comply with A.D.A.
opening force requirements; additional mounting clips may be necessary for installation.
