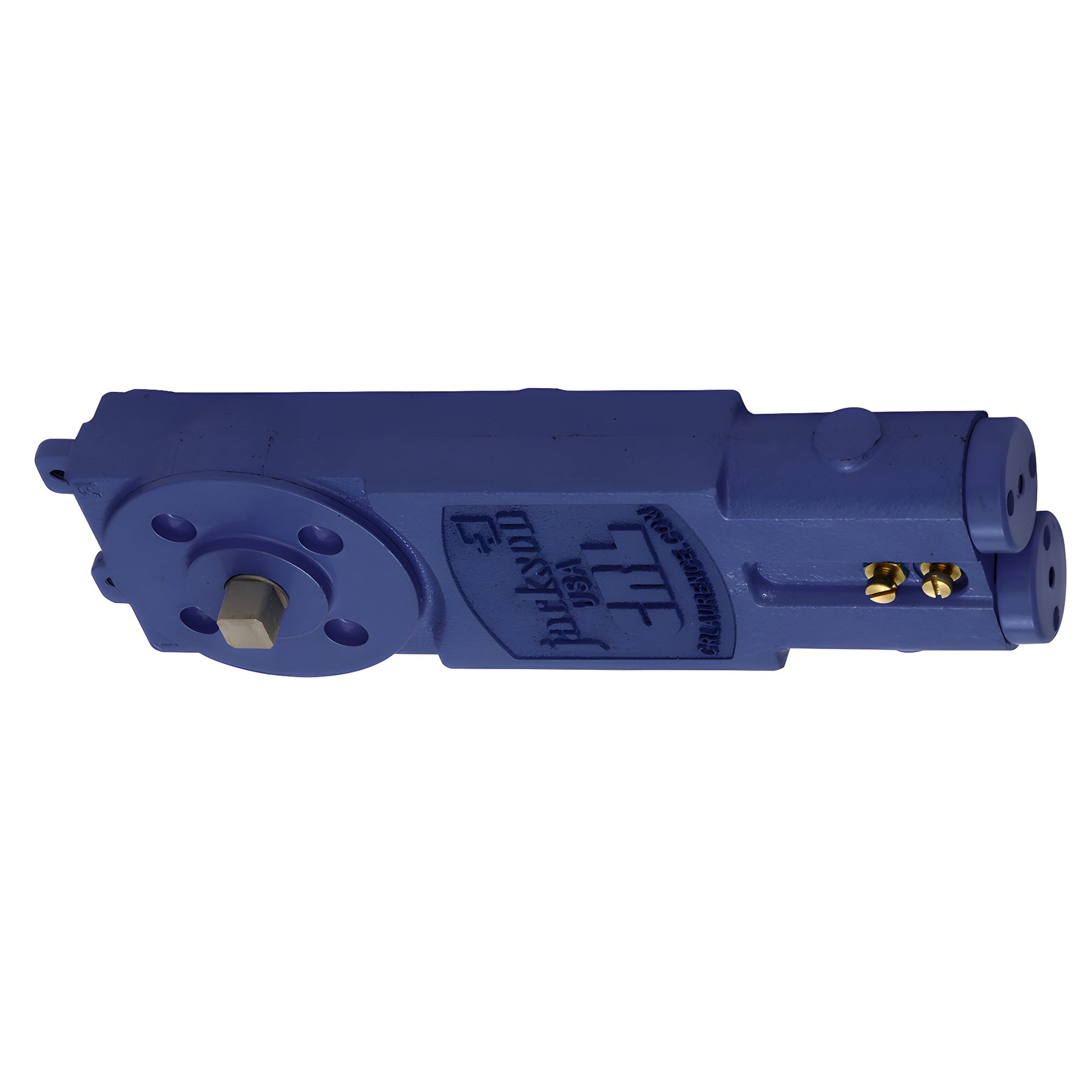

CRL Jackson® Concealed Door Closer, Adjustable 105° No Hold Open

• Adjustable Spring Power: Size 1 (Barrier-Free) to Size 4 (Regular)
• Can retrofit existing fixed spring closers
• Standard and extended spindle models available
• 5 Year Limited Warranty

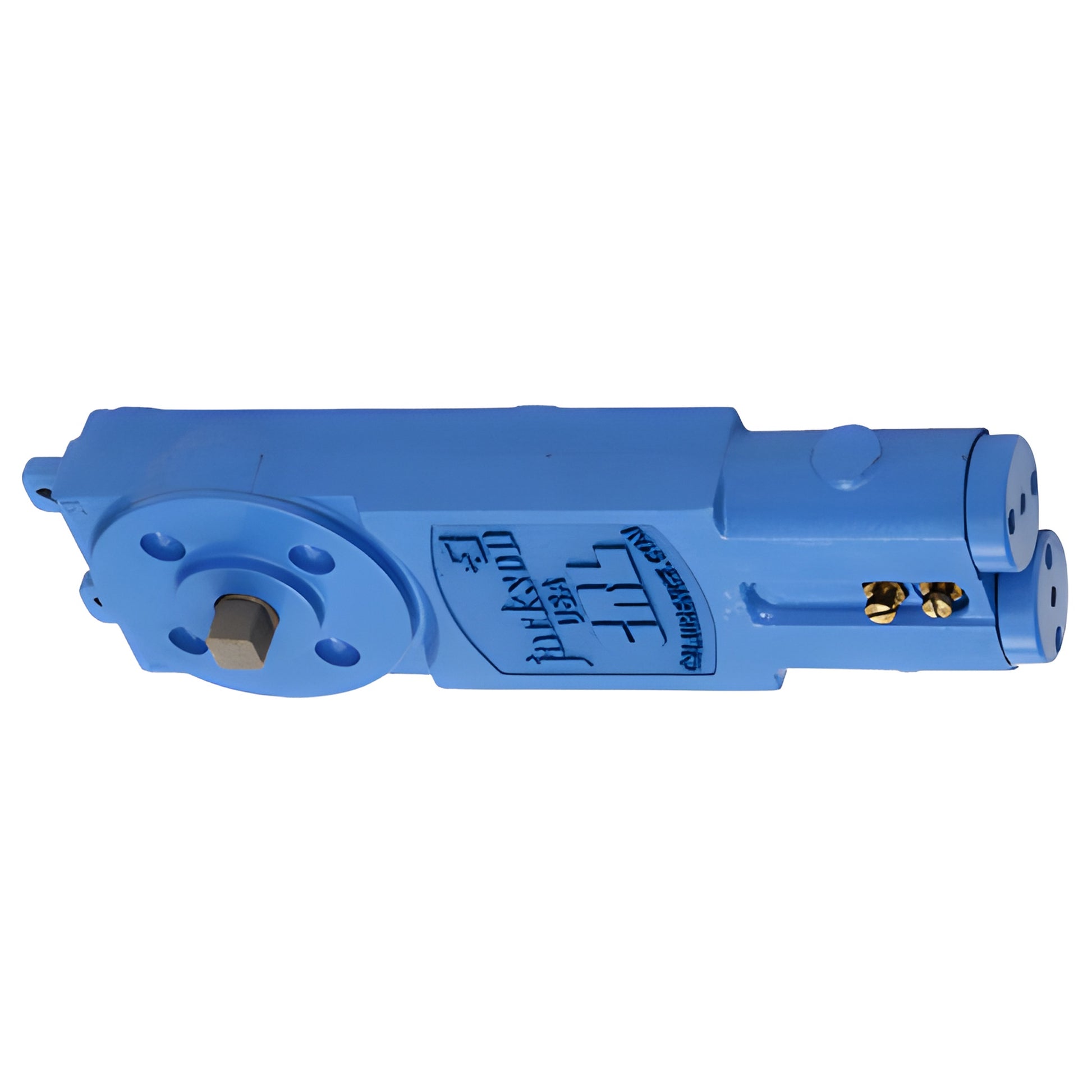

This CRL Jackson® Adjustable Spring Power Overhead Concealed Closer Body (SKU: 20101M17) is an adjustable spring power overhead concealed closer body suitable for doors 30" to 42" (762 mm to 1.07 m) wide depending on selected spring size and closer function. Features dual action valves for independent closing and latching speed control, and a 105° no-hold-open configuration with fixed adjustable spring power multi-size. Designed to fit standard 1-3/4" x 4" (45 x 102 mm) or larger header extrusions. Interchangeable with Jackson® and similar style overhead concealed closers for easy retrofit and replacement.

Although the adjustable spring power closer can be tuned for site conditions, meeting A.D.A. opening force limits may reduce available closing force and could prevent proper door control.

Closers adjusted to A.D.A. specified opening forces may not provide sufficient spring power to close and control the door for larger doors or adverse site conditions. Mounting clips are not included—use existing clips or purchase the appropriate mounting clip package. Contact Jackson® Technical Sales for assistance selecting the correct clip package.

Key differentiators: retrofit-compatible design, multi-size adjustable spring power (Size 1–4), dual action valves for precise closing/latching control, interchangeable with Jackson® style overhead concealed closers.

Order SKU 20101M17 today or contact CRL for technical support and mounting clip options.
