CRL Jackson® P-Offset Concealed Overhead Door Closer 105° Dark Bronze
CRL Jackson® P-Offset Concealed Overhead Door Closer 105° Dark Bronze
Regular price
$470.05 CAD
Regular price
Sale price
$470.05 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 21201P31317
Shipping Weight: 11.52 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 11.52 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Arm Type
"P" Offset Slide-Arm
Body Height
1-11/16
Body Length
11-5/8
Body Width
3-11/16
Brand
Jackson
Case Quantity
4
Closer Type
Overhead Concealed
Finish/Color
Dark Bronze
Handing
Non Handed
Material
Aluminum
Maximum Door Weight
250
No Hold Open
105°
Package Type
Offset Arm P
Recommended Door Type
Aluminum, Hollow Metal
Replacement Parts
20106313, 20117313, DCU4DUS, 201134LC313
Spindle
1/2
Spring Size
Adjustable
Top Rail Depth
5/8
UL Listed
Yes
Overview
- P Offset Slide-Arm Hardware Package for doors with 5/8" shallow top rails
- Spring-power adjustable overhead concealed door closer — suitable for 30" to 42" (762 mm to 1.07 m) doors
- U.L. listed with five-year limited warranty

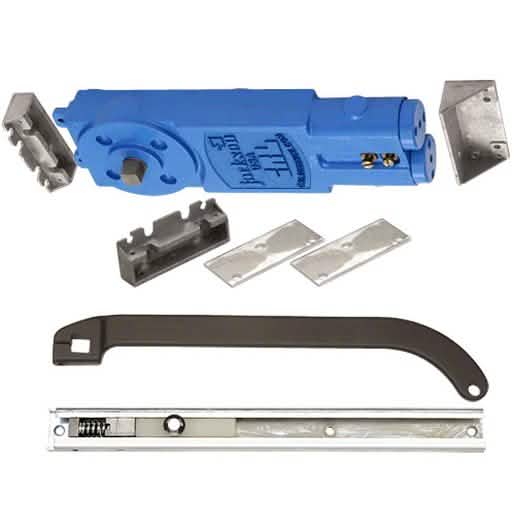

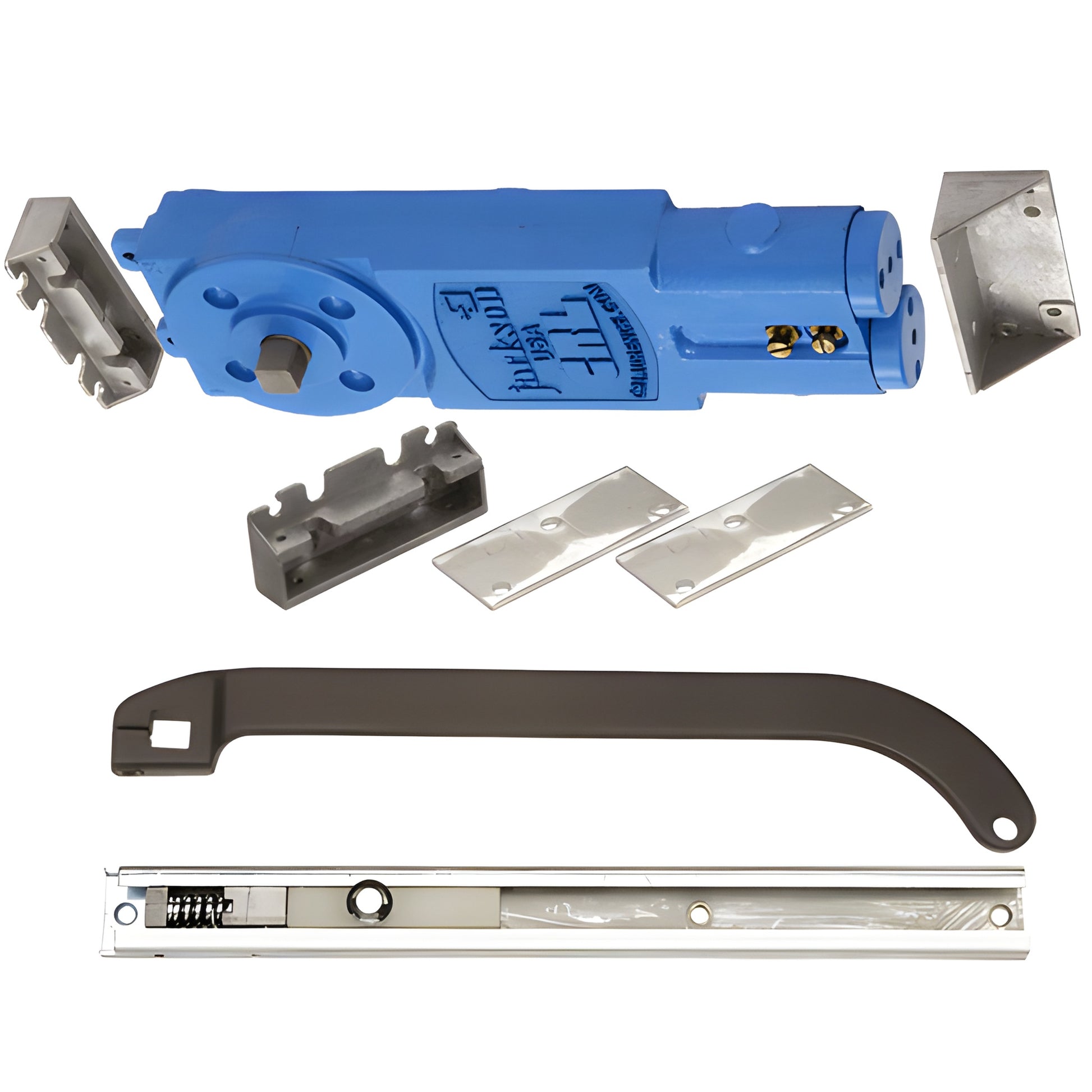

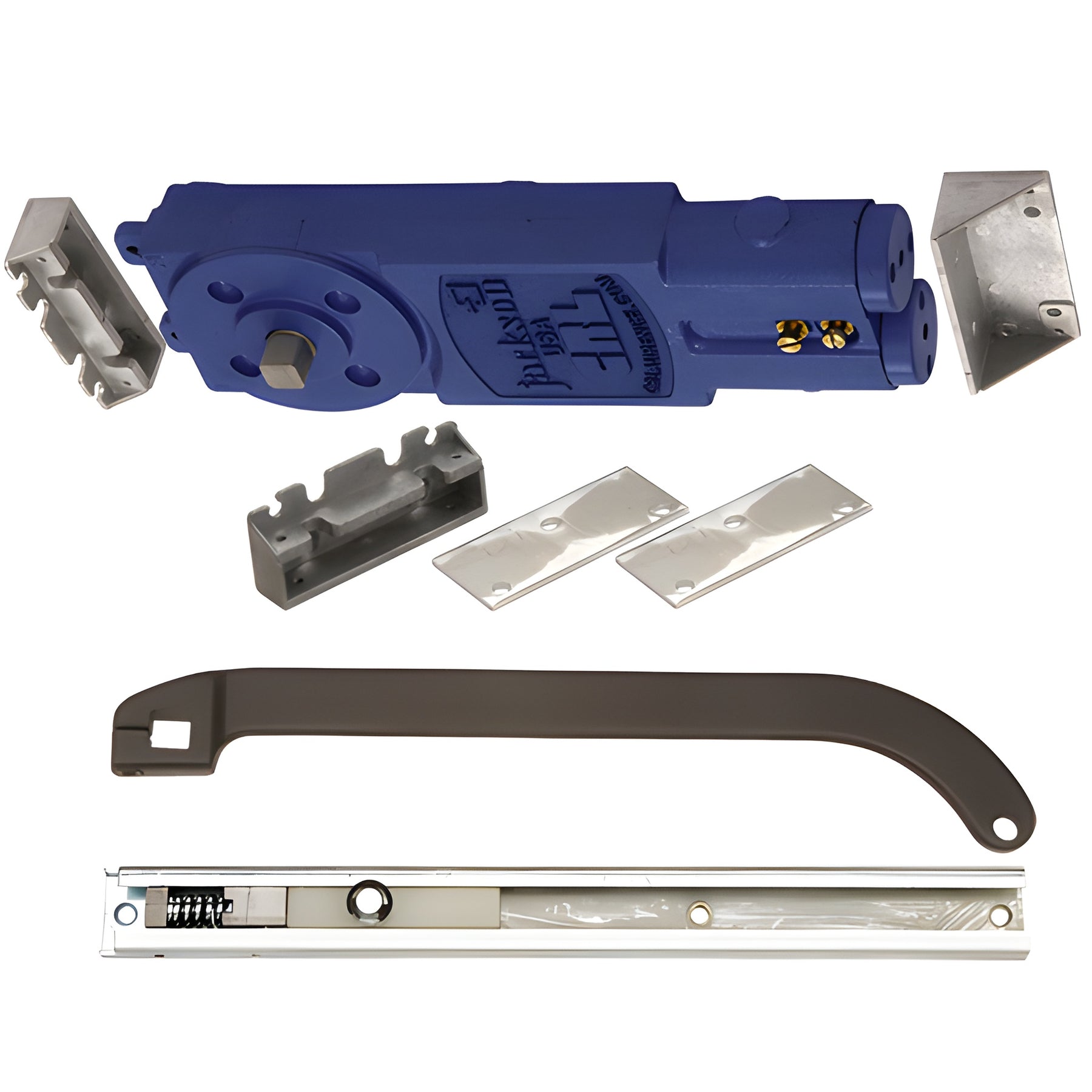

The CRL Jackson® 21201 Series Overhead Concealed Closer with "P" Offset Slide-Arm Hardware Package (SKU: 21201P31317) is a spring-power adjustable overhead concealed door closer designed for commercial and residential glass and storefront doors with 5/8" shallow top rails. Packaged complete with Cat. No. 20118 mounting clips, 201133 offset arm package, 201129 slide channel and installation instructions, the unit features dual independent valves for precise closing and latching speed adjustments and a 105° no-hold-open function. Multi-size spring power allows selection for door widths from 30" to 42". Fits standard 1-3/4" x 4" (or larger) header extrusions.
