CRL
CRL Jackson® Adjustable Aluminum Concealed Door Closer 90° Hold-Open
CRL Jackson® Adjustable Aluminum Concealed Door Closer 90° Hold-Open
Regular price
$465.79 CAD
Regular price
Sale price
$465.79 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 21201U62820
Shipping Weight: 11.47 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 11.47 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Americans with Disabilities Act
Yes
Body Height
1-11/16
Body Length
11-5/8
Body Width
3-11/16
Brand
Jackson
Case Quantity
4
Closer Type
Overhead Concealed
Finish/Color
Aluminum
Handing
Non Handed
Hold Open
90º
Includes
20101M20, 201381, 20942628, 20368
Material
Aluminum
Maximum Door Weight
250
Package Type
Offset Arm U
Recommended Door Type
Aluminum, Hollow Metal
Replacement Parts
20106628, 20190628, DCH4SAS, 20900LC628
Similar
21201S62819
Spindle
1/2
Spring Size
Adjustable
Top Rail Depth
7/8
UL Listed
Yes
Overview
- U-Offset slide-arm hardware package for doors with 7/8" (22.2 mm) shallow top rails
- Spring-power adjustable, concealed overhead closer for doors 30"–42" (762 mm–1.07 m) wide
- U.L. listed with a ten-year limited warranty

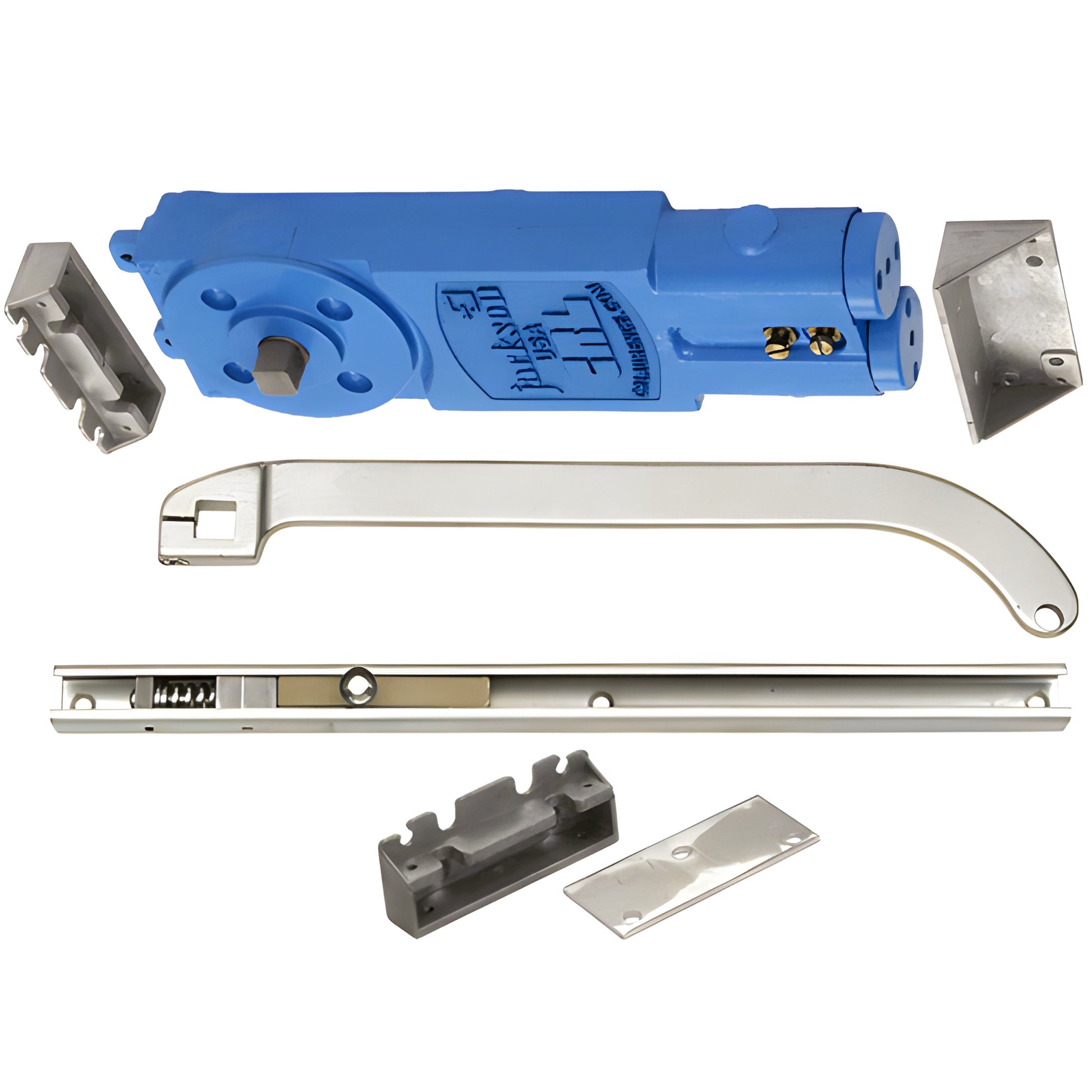

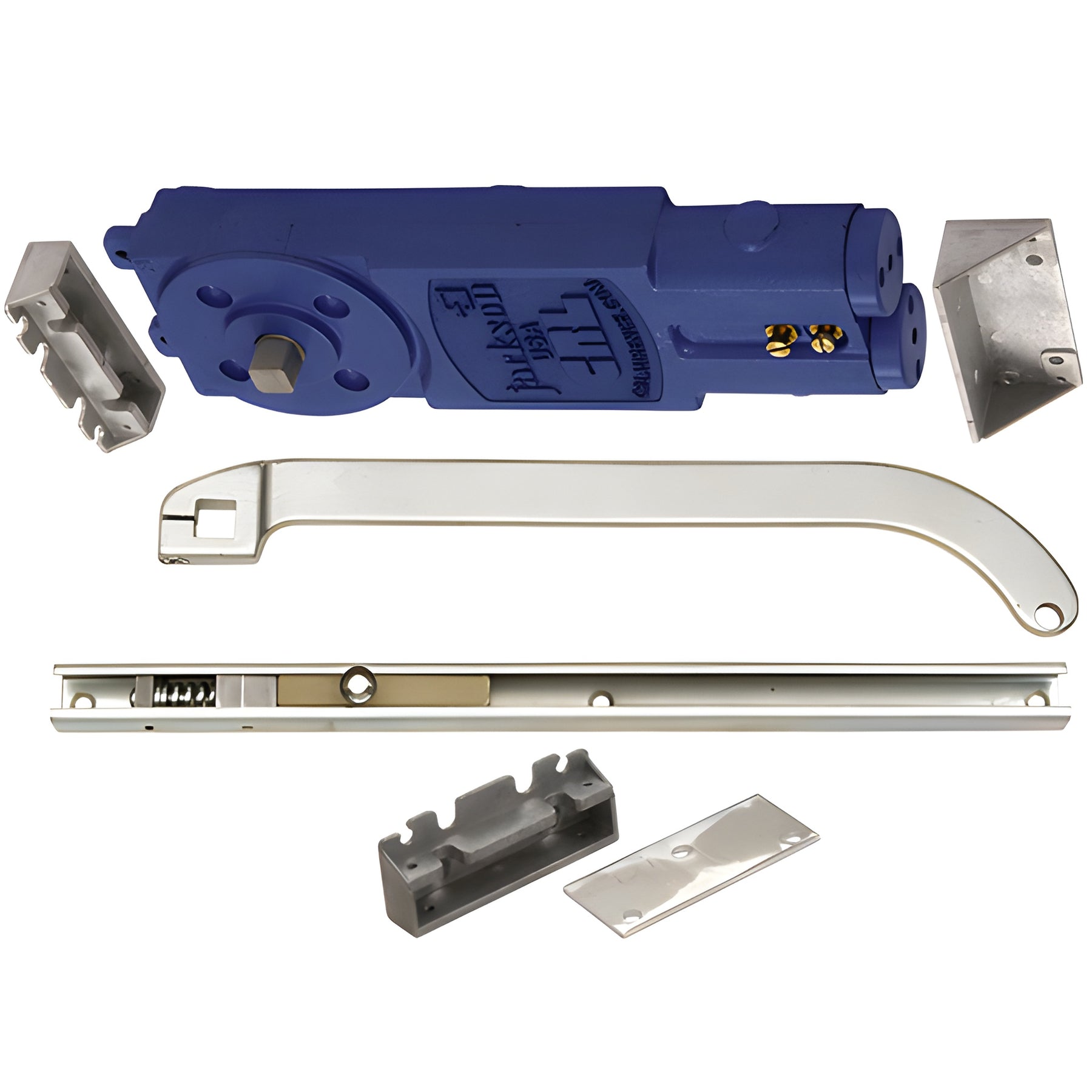

The CRL Jackson® 21201 Series Overhead Concealed Closer with U-Offset Slide-Arm Hardware Package is an overhead concealed door closer kit designed for commercial and residential applications requiring a low-profile, U-offset slide-arm solution. The spring-power adjustable closer provides dual independent valves for precise closing and latching speed control, and offers a 90° hold-open with fixed, adjustable spring power depending on the selected spring size and function. The closer fits into standard 1-3/4" x 4" (or larger) header extrusions.
The package ships complete with Cat. No. 201387 mounting clips, 20942 offset arm package, 20368 slide channel, and full installation instructions for straightforward setup.
