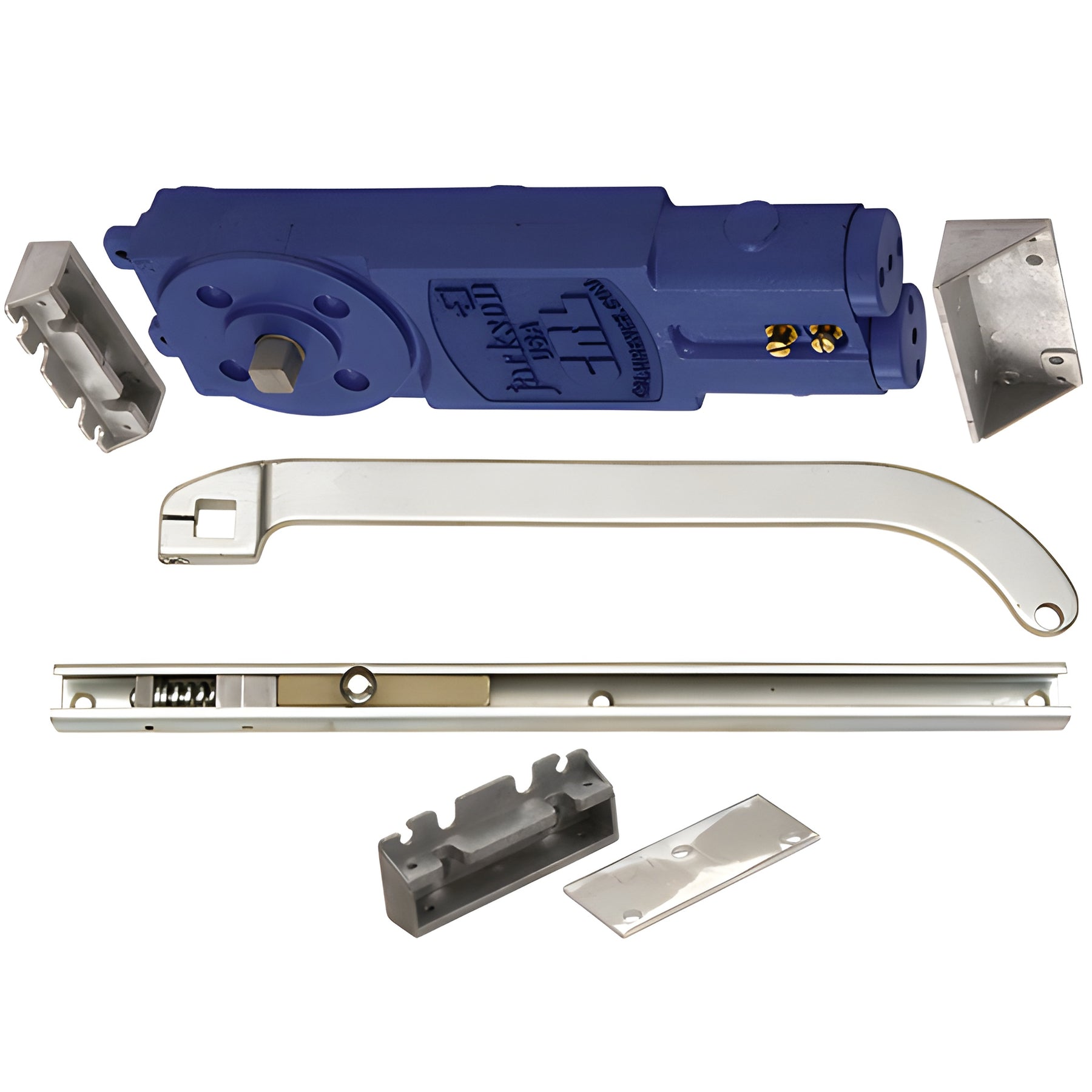

CRL Jackson® Aluminum Adjustable 90° Concealed Overhead Door Closer
CRL Jackson® Aluminum Adjustable 90° Concealed Overhead Door Closer
Regular price
$465.79 CAD
Regular price
Sale price
$465.79 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 21201U62819
Shipping Weight: 11.47 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 11.47 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Americans with Disabilities Act
Yes
Body Height
1-11/16
Body Length
11-5/8
Body Width
3-11/16
Brand
Jackson
Case Quantity
4
Closer Type
Overhead Concealed
Finish/Color
Aluminum
Handing
Non Handed
Includes
20101M19, 201381, 20942628, 20368
Material
Aluminum
Maximum Door Weight
250
No Hold Open
90°
Package Type
Offset Arm U
Recommended Door Type
Aluminum, Hollow Metal
Replacement Parts
20106628, 20190628, DCH4SAS, 20900LC628
Similar
21201S62819
Spindle
1/2
Spring Size
Adjustable
Top Rail Depth
7/8
UL Listed
Yes
Overview
- U-Offset Slide-Arm Hardware Package for doors with 7/8" (22.2 mm) shallow top rails
- Spring power adjustable concealed closer for doors 30"–42" (762 mm–1.07 m) wide
- Ten-year limited warranty; U.L. Listed for commercial door applications
The CRL Jackson® 21201 Series Overhead Concealed Closer with U-Offset Slide-Arm Hardware Package is an overhead concealed closer engineered for commercial and institutional exterior or interior doors with shallow top rails. The spring-power adjustable closer provides reliable closing and latching control via dual independent valves and is available in multiple spring sizes to suit door widths from 30" to 42" (762 mm–1.07 m). Features include 90° no hold-open with fixed adjustable spring power and compatibility with standard 1-3/4" x 4" (or larger) header extrusions.

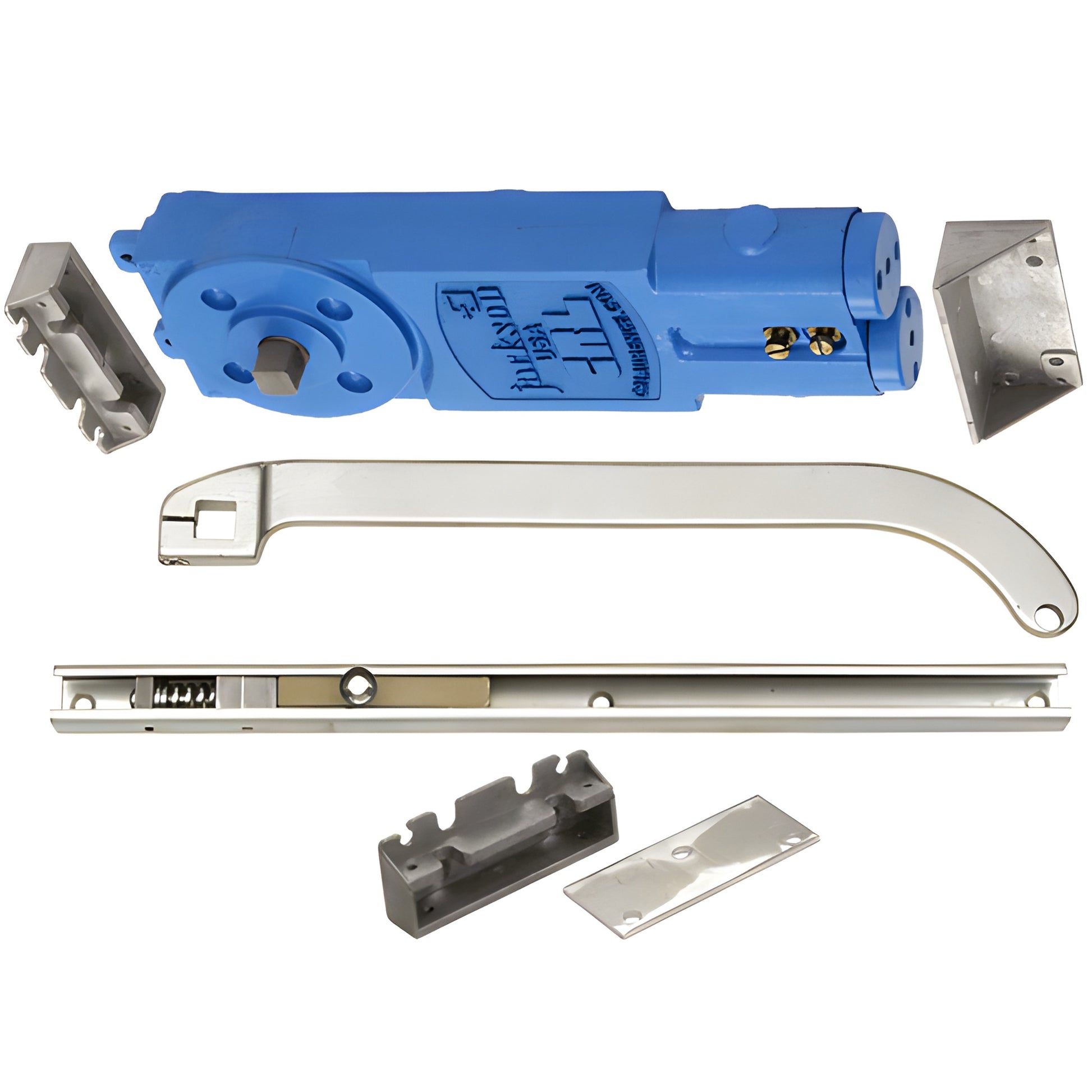

The closer ships complete with Cat. No. 201387 mounting clips, 20942 offset arm package, 20368 slide channel, and full installation instructions for quick field installation. Ideal long-tail use cases: "overhead concealed closer for commercial doors," "U-offset slide-arm hardware for shallow top rails," and "adjustable spring overhead closer for 30 to 42 inch doors."
SKU: 21201U62819
Ready to specify a reliable overhead concealed closer for your next project? Contact CRL or add SKU 21201U62819 to your cart.
