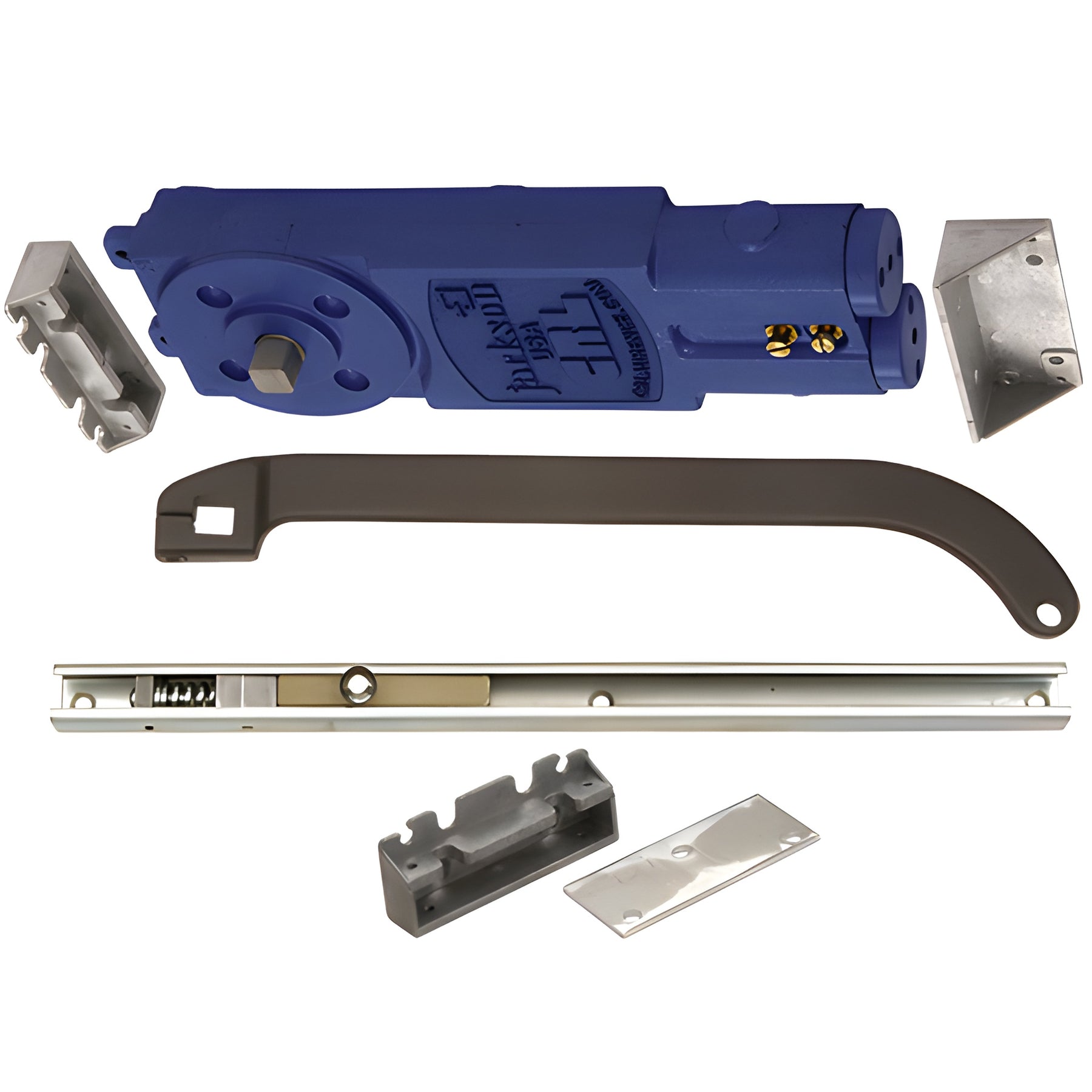

CRL Jackson® Dark Bronze Adjustable Spring Power Multi Size 105º No Hold Open Overhead Concealed Closer with 'U' Offset Slide-Arm Hardware Package
Item # 21201U31317
Finish (2)
-
Dark Bronze -
Aluminum
Overview
| SKU | 21201U31317 |
|---|---|
| Sold As | 1 Each |
| Americans with Disabilities Act | Yes |
| Body Height | 1-11/16 |
| Body Length | 11-5/8 |
| Body Width | 3-11/16 |
| Brand | Jackson |
| Closer Type | Overhead Concealed |
| Finish/Color | Dark Bronze |
| Handing | Non Handed |
| Includes | 20101M17, 201381, 20942313, 20368 |
| Material | Aluminum |
| Maximum Door Weight | 250 |
| No Hold Open | 105° |
| Package Type | Offset Arm U |
| Recommended Door Type | Aluminum, Hollow Metal |
| Replacement Parts | 20106313, 20117313, DCU4DUS, 20900LC313 |
| Similar | 21201S31317 |
| Spindle | 1/2 |
| Spring Size | Adjustable |
| Top Rail Depth | 7/8 |
| UL Listed | Yes |
Description
- 'U' Offset Slide-Arm Hardware Package for Doors with 7/8" (22.2 mm) Shallow Top Rails
- Spring Power Adjustable Closer Suitable for Doors from 30" to 42" (762 mm to 1.07 m) Wide
- Ten Year Limited Warranty U.L. Listed

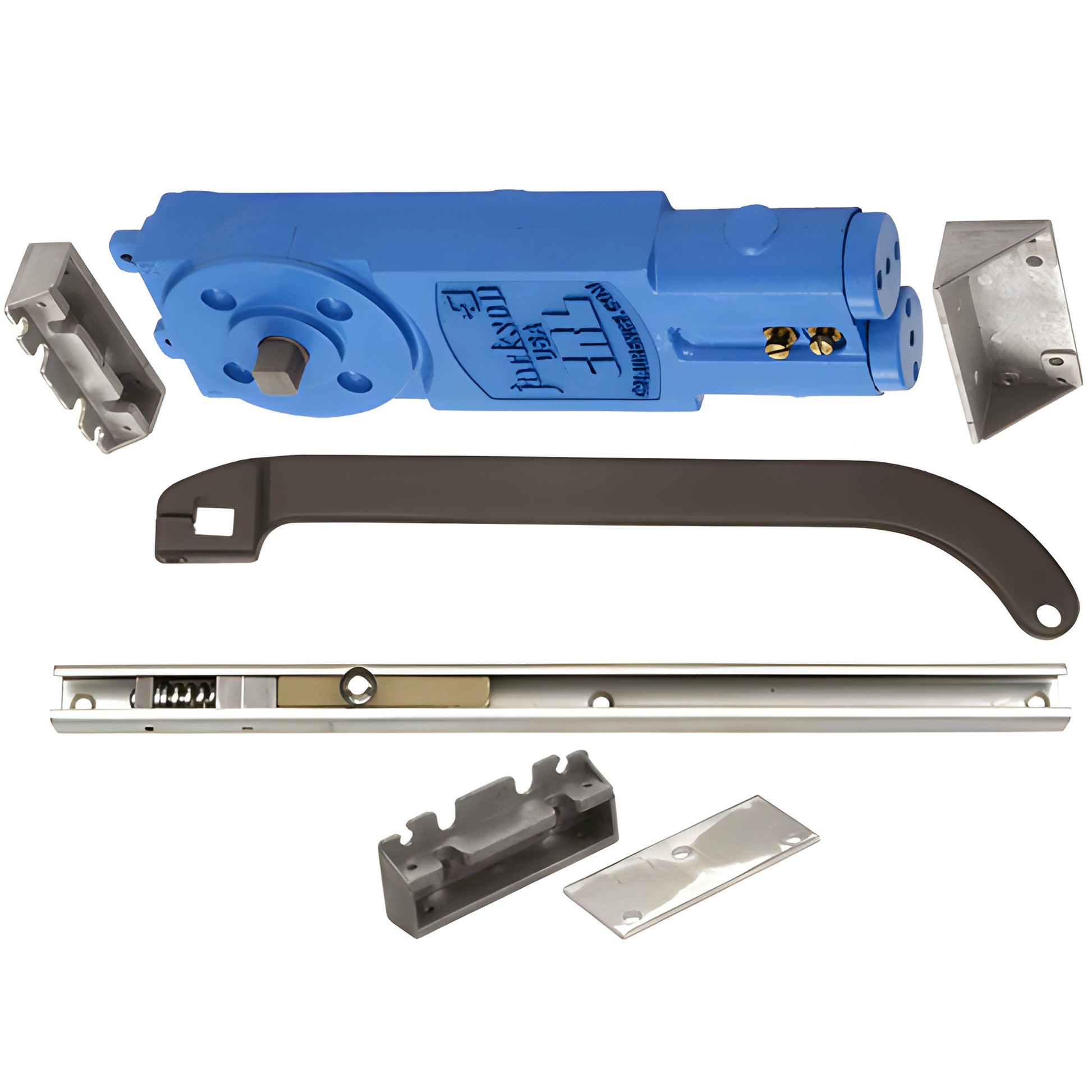

The CRL Jackson® 21201 Series Overhead Concealed Closer with 'U' Offset Slide-Arm Hardware Package consists of a Spring Power Adjustable Closer mechanism, which depending on the selected spring size and closer function, is suitable for a range of doors from 30" to 42" (762 mm to 1.07 m) wide. The Closer is packaged complete with Cat. No. 201387 Mounting Clips, 20942 Offset Arm Package, 20368 Slide Channel, and complete installation instructions. The Closer has dual independent valves for closing and lactching speeds. 105º No Hold Open with fixed adjustable spring power size. Door Closers fit into standard 1-3/4" x 4" (or larger) header extrusions.
Specifications
Installation Instructions
CRL Jackson® Dark Bronze Adjustable Spring Power Multi Size 105º No Hold Open Overhead Concealed Closer with 'U' Offset Slide-Arm Hardware Package
21201U31317
