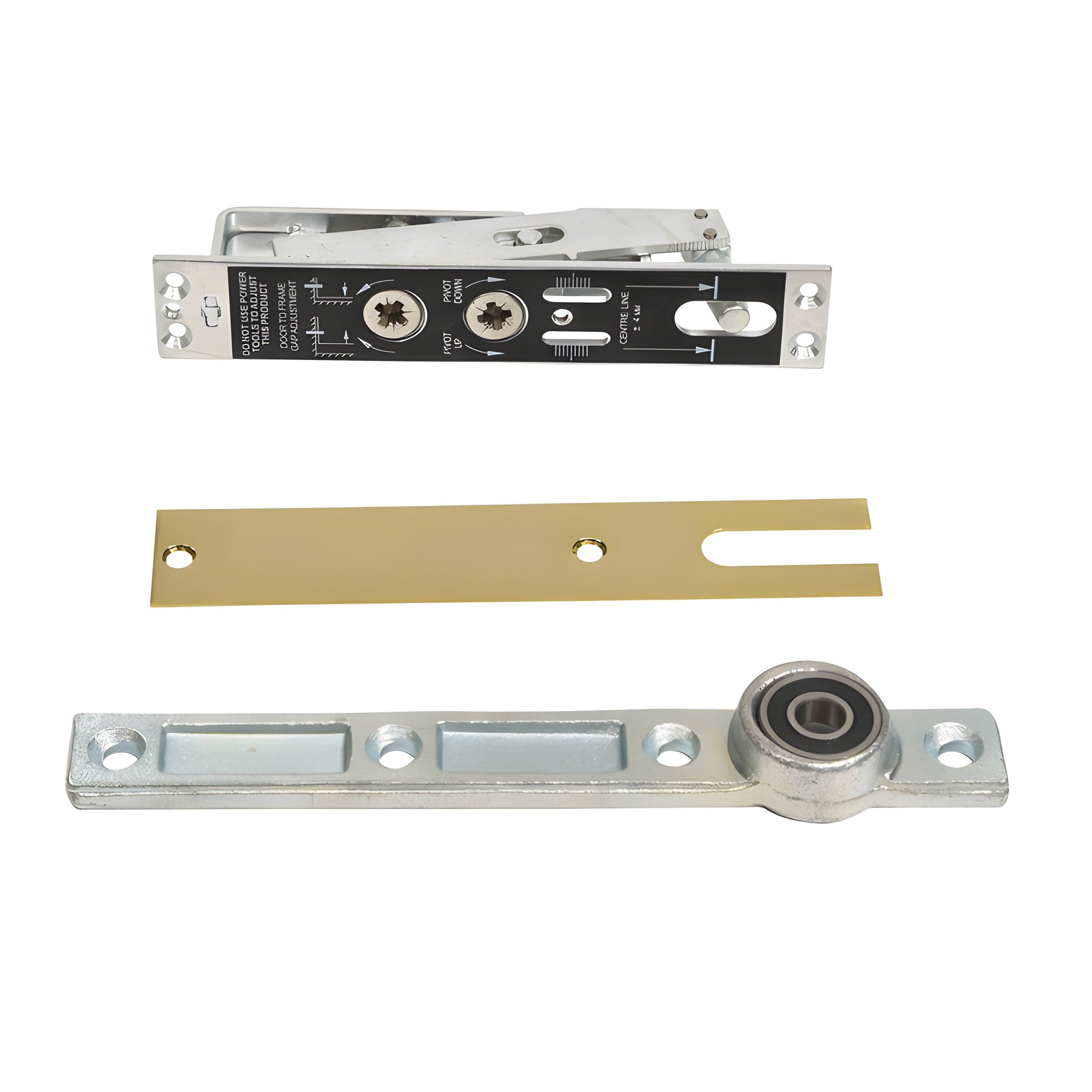

CRL Jackson® Heavy-Duty Adjustable Center-Hung Walking Beam Type Top Pivot With Polished Brass Cover Plate
Item # J580PB
$245.96
CAD
Finish (3)
-
Brushed Stainless Steel -
Dark Bronze -
Polished Brass
Overview
| SKU | J580PB |
|---|---|
| Sold As | 1 Each |
| Door Weight | 1000 |
| Finish/Color | Polished Brass |
| Includes | Cover Plate And Screws |
Description
- Walking Beam Type Pivot
- For Center-Hung Doors Weighing up to 1,000 Lbs.
- Allows for Easy Door Removal and Adjustment
- Lateral Pin Adjustment
This CRL Jackson® Heavy-Duty Adjustable Center-Hung Walking Beam Type Top Pivot can handle center-hung doors weighing up to 1000 lbs. (454 kg). Pivot features a vertical, as well as a lateral, pin adjustment to help align the door. The door portion consists of a needle bearing for maximum durability. Supplied with finished screws and cover plate.
Brass Finish Advisory:
Although durable, brass is prone to oxidation. It can give brass and brass finishes a tarnished look, regardless of how the hardware is initially packaged or stored. For more information, view the Brass Finish Disclaimer found in the Technical References section below.Specifications
CAD Drawings - pdf
Cleaning & Maintenance
