Product Details
- Impact Kit Included with This Device
- Use with Narrow, Medium and Wide Stile Aluminum Doors
- Durable, ANSI 156.3 Grade 1 Tested to Over 500,000 Cycles
- Easy Concealed Push-Button Dogging Standard. Cylinder Dogging, and Front Hex Key Dogging Available
- 301266313
- 301265313
- 302467
- 301084313
- 30763P
- 301552
- 30824313
- 308621J313
- DL2170SCKDDU
- 302989313

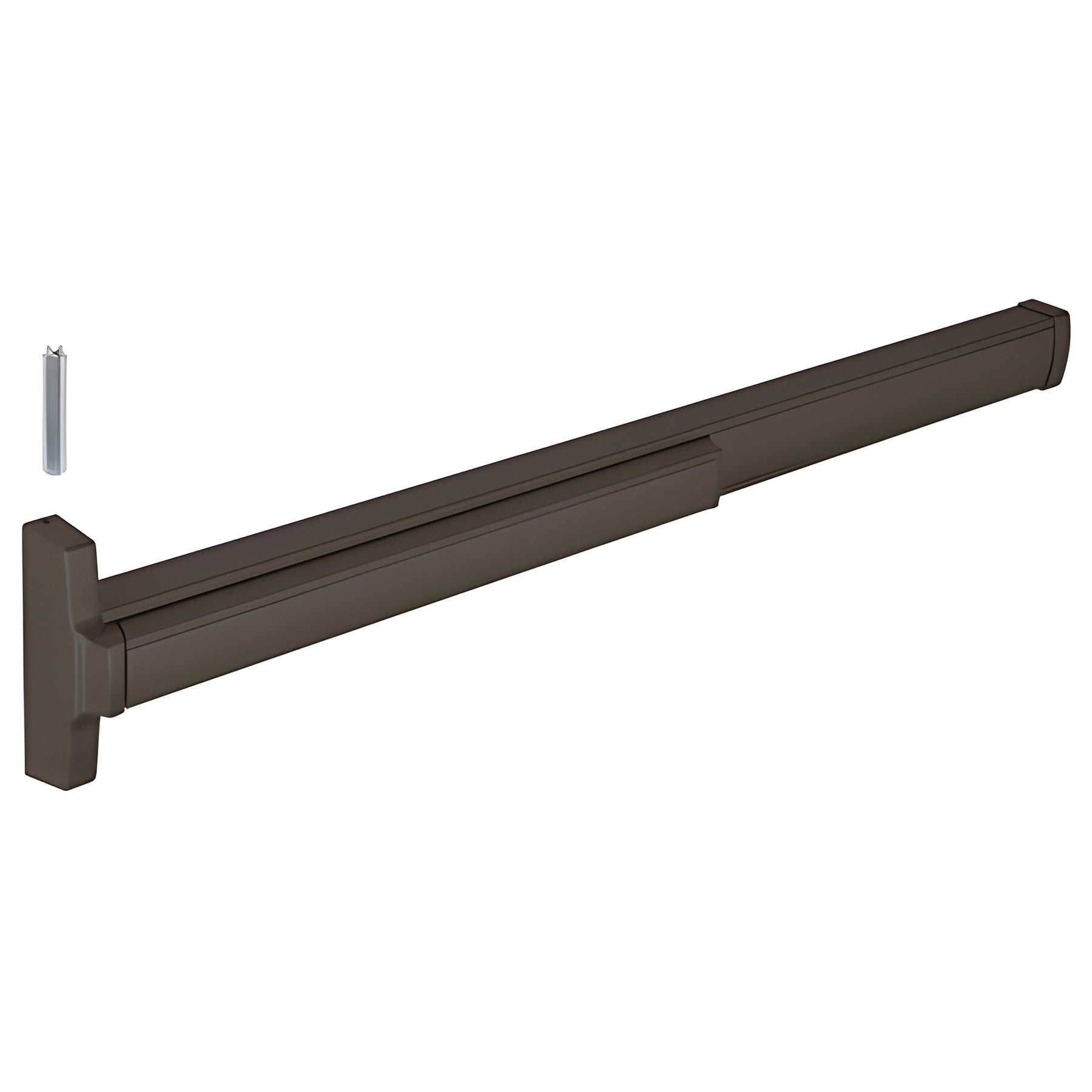

CRL Jackson® Model 20861 with Impact Kit Concealed Vertical Rod Panic Exit Devices are UL Listed - Certified ANSI 156.3 Grade 1, and manufactured in the Jackson® tradition of high quality and durability. This device with the Impact Kit has been used in a number of OEM Certified Impact Systems. Suitable for use with narrow, medium and wide stile aluminum doors, these devices are handed - not reversible, and feature dual point hex bolt latching, concealed easy-to-use push button dogging, "Soft Touch" smooth quiet action push pad, and quick and easy installation. They are available in Dark Bronze and Satin Aluminum anodized finishes. Standard devices come in two lengths for 36" and 48" wide doors, and can be cut down to custom fit an opening (consult CRL Jackson® Technical Sales). For doors over 84" order Top Rod Extender: 12" – 301347 or 24" – 301348. Devices may be ordered with optional Cylinder Dogging, which uses a 1-1/8" Mortise Cylinder such as DC7185SCKADU, ordered separately. Keyed entry may be provided by ordering and installing a standard 1" Mortise Cylinder such as DL2170SCKDDU with AR MS type cam, along with a Cylinder Mounting Pad such as 30821J313. Keyed access is also available with Jackson® Model 8500LV Outside Lever Trim such as 8500LV02313.
REPLACEMENT PARTS: 30126631330126531330246730108431330763P30155230824313308621J313DL2170SCKDDU302989313
