CRL Jackson® 90° Hold-Open Concealed Overhead Door Closer U Side-Load
CRL Jackson® 90° Hold-Open Concealed Overhead Door Closer U Side-Load
Regular price
$384.85 CAD
Regular price
Sale price
$384.85 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 21101U04
Shipping Weight: 11.16 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 11.16 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Arm Type
'U' Side-Load
Body Height
1-11/16
Body Length
11-5/8
Body Width
3-11/16
Bottom Door Rail Depth
1-1/2
Bottom Pivot Type
Threshold Mount Pivot
Brand
Jackson
Case Quantity
4
Closer Type
Overhead Concealed
Handing
Double Acting
Hold Open
90°
Includes
20101M04, 201380, 20400B, 20944
Material
Aluminum
Maximum Door Weight
250
Package Type
Side Load U
Recommended Door Type
Aluminum, Hollow Metal
Replacement Parts
20190628, 20190313, 20510, HMC035, DCHSAS, CRL8010SCP, SLB3, SLS1
Similar
21101GE04, 21101BE05, 21101U04
Spindle
1/2
Spring Size
Regular
Top Rail Depth
1/2
Type
Center Hung
UL Listed
Yes
Overview
- 'U' Center-Hung, Side-Load Hardware Package for doors with 1/2" deep top rails (Overhead Concealed Closer)
- Suitable for doors 30" to 48" (762 mm to 1.22 m) wide — commercial and residential applications
- Ten‑Year Limited Warranty; U.L. Listed for safety and performance

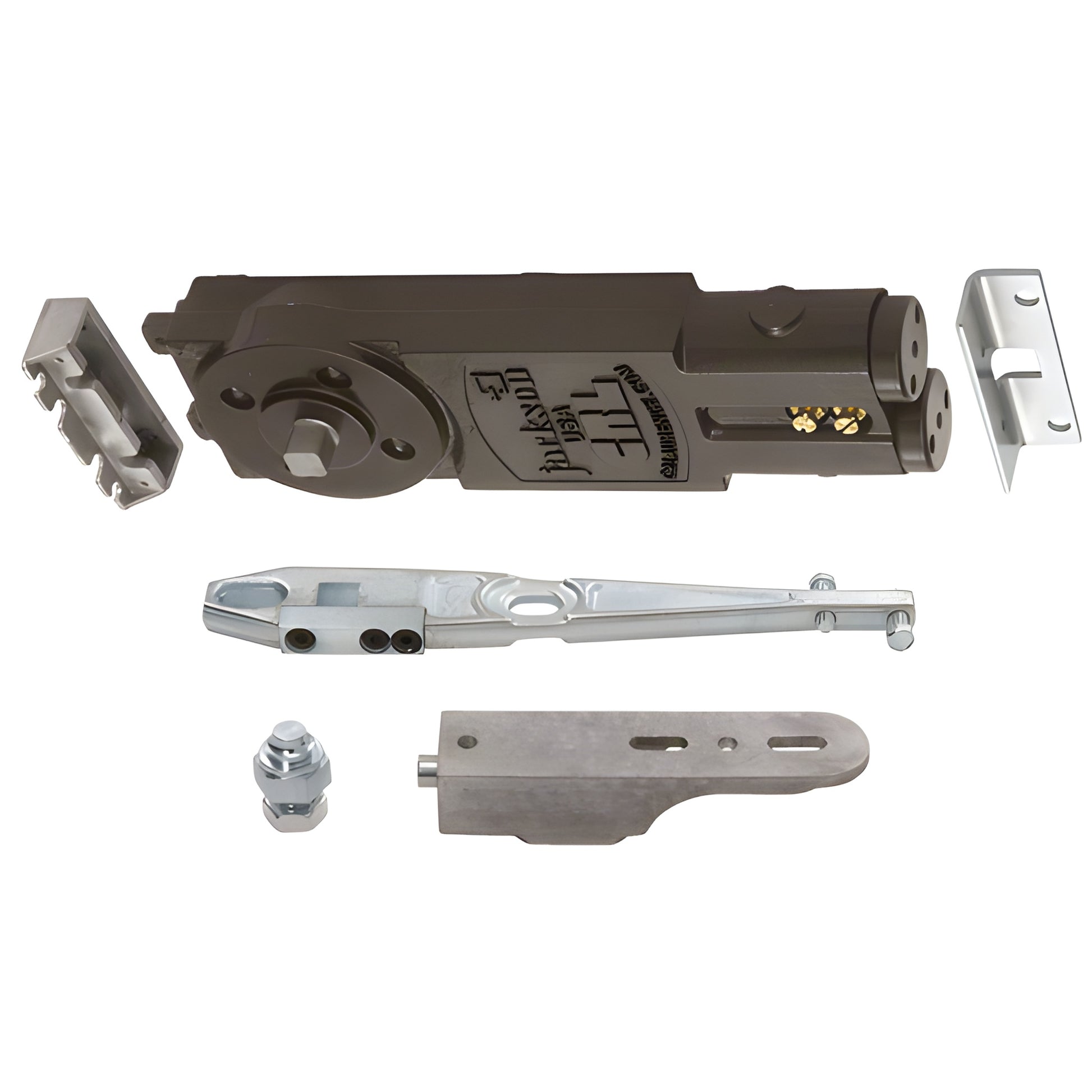

The CRL Jackson® 21101 Series Overhead Concealed Closer with 'U' Side‑Load Hardware Package (SKU: 21101U04) includes the closer mechanism plus complete hardware: Cat. No. 201380 mounting clips, 20400B side‑load arm, Type "GE" 20944 bottom pivot set for threshold mounting, and full installation instructions. Designed for doors with 1/2" deep top rails and standard 1‑3/4" x 4" (or larger) header extrusions, the closer features dual independent valves to precisely adjust closing and latching speeds and provides a 90° hold‑open with fixed regular‑duty spring size. Ideal as an overhead concealed door closer and U side‑load hardware package for commercial exterior and interior doors.
Order the CRL Jackson 21101U04 overhead concealed closer with U side‑load hardware today — contact CRL Customer Service to confirm fit and shipping details.
