CRL Jackson® 105° Concealed Adjustable Overhead Door Closer P-Offset
CRL Jackson® 105° Concealed Adjustable Overhead Door Closer P-Offset
Regular price
$470.05 CAD
Regular price
Sale price
$470.05 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 21201P62817
Shipping Weight: 11.51 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 11.51 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Americans with Disabilities Act
Yes
Body Height
1-11/16
Body Length
11-5/8
Body Width
3-11/16
Brand
Jackson
Case Quantity
4
Closer Type
Overhead Concealed
Finish/Color
Aluminum
Handing
Non Handed
Includes
20101M17, 201178, 201133628, 201129
Material
Aluminum
Maximum Door Weight
250
No Hold Open
105°
Package Type
Offset Arm P
Recommended Door Type
Aluminum, Hollow Metal
Replacement Parts
20106628, 20190628, DCH4SAS, 201134LC628
Similar
21201A62817
Spindle
1/2
Spring Size
Adjustable
Top Rail Depth
5/8
UL Listed
Yes
Overview
- P Offset Slide-Arm Hardware Package for Doors with 5/8" shallow top rails
- Spring-power adjustable concealed overhead closer for doors 30"–42" (762 mm–1.07 m) wide
- U.L. listed with five-year limited warranty (SKU: 21201P62817)

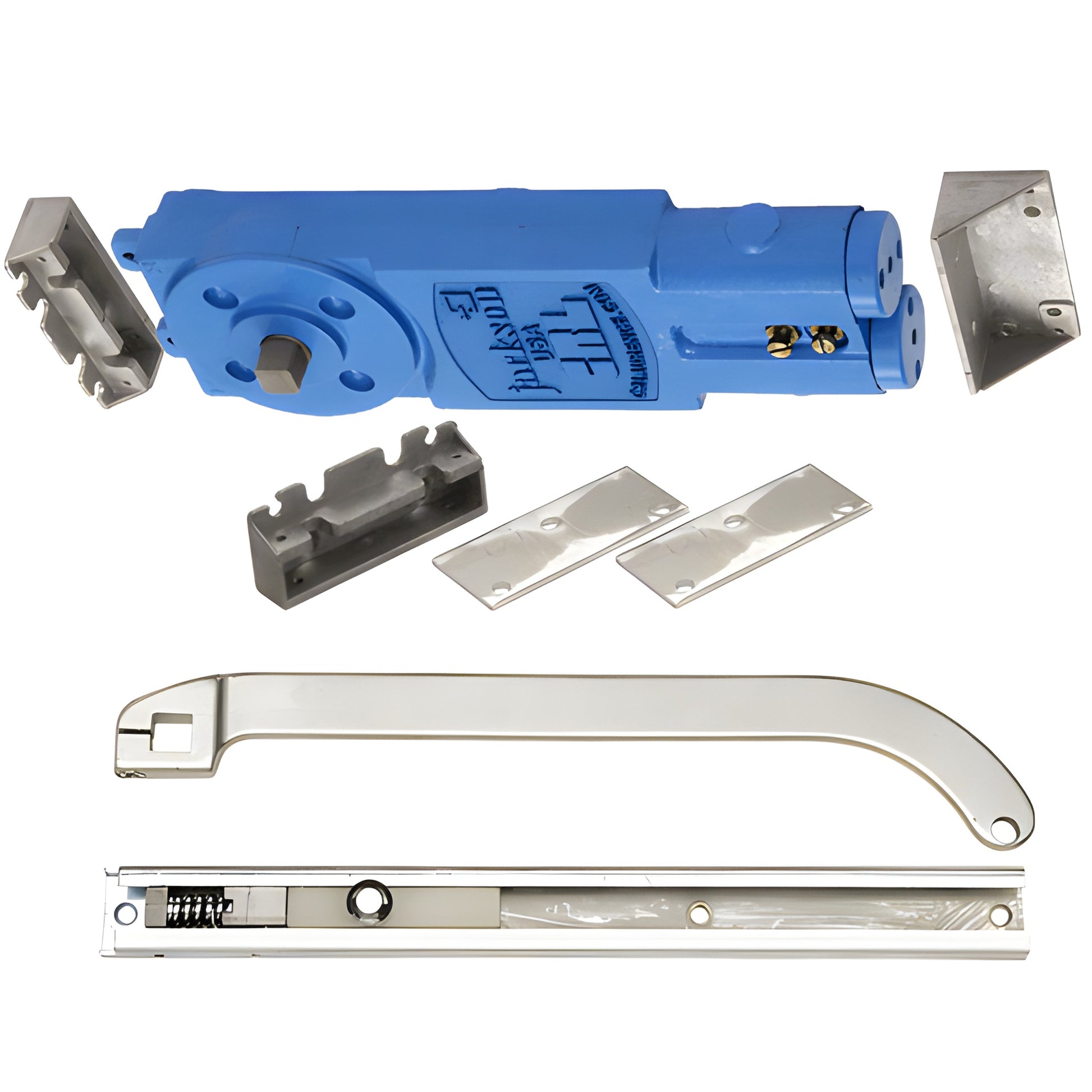

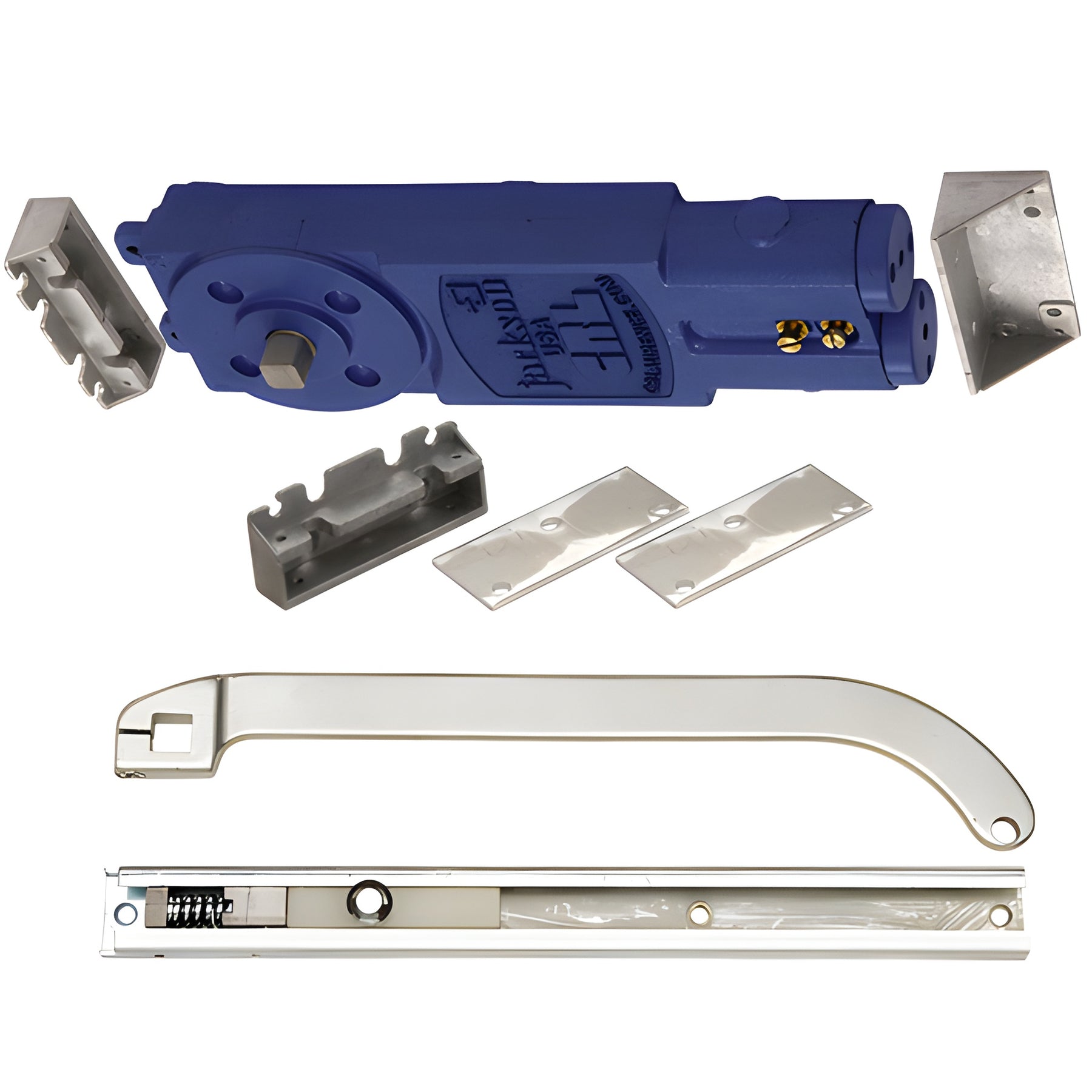

The CRL Jackson® 21201 Series Overhead Concealed Closer with "P" Offset Slide-Arm Hardware Package is a compact, concealed door closer engineered for shallow top rail applications. This complete package includes the spring-power adjustable closer mechanism, Cat. No. 20118 mounting clips, 201133 offset arm package, 201129 slide channel, and full installation instructions.
Key performance features: dual independent valves for separate closing and latching speed adjustment, fixed adjustable spring power across multiple sizes, and 105° no-hold-open operation. Designed to fit standard header extrusions 1-3/4" x 4" (or larger) and compatible with 5/8" shallow top rails—ideal for concealed hardware installations where a low-profile overhead closer is required.
Order the CRL Jackson 21201 concealed overhead closer (SKU: 21201P62817) for dependable, low-profile door control—contact sales to purchase or request installation assistance.
