CRL Jackson Concealed Overhead Closer 105° Adjustable Spring, S-Offset
CRL Jackson Concealed Overhead Closer 105° Adjustable Spring, S-Offset
Regular price
$468.63 CAD
Regular price
Sale price
$468.63 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 21201S62817
Shipping Weight: 11.51 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 11.51 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Americans with Disabilities Act
Yes
Body Height
1-11/16
Body Length
11-5/8
Body Width
3-11/16
Brand
Jackson
Case Quantity
4
Closer Package
Yes
Closer Type
Overhead Concealed
Finish/Color
Aluminum
Handing
Non Handed
Includes
20101M17, 201376, 201149628, 201129
Material
Aluminum
Maximum Door Weight
250
No Hold Open
105°
Package Type
Offset Arm S
Recommended Door Type
Aluminum, Hollow Metal
Replacement Parts
20106628, 20190628, DCH4SAS, 201134LC628
Similar
21201P62817, 21201U62817
Spindle
1/2
Spring Size
Adjustable
Top Rail Depth
7/8
UL Listed
Yes
Overview
- S Offset Slide-Arm Hardware Package for Doors with 7/8" Shallow Top Rails
- Spring Power Adjustable Closer Suitable for Doors from 30" to 42" (762 mm to 1.07 m) Wide
- Five Year Limited Warranty; U.L. Listed

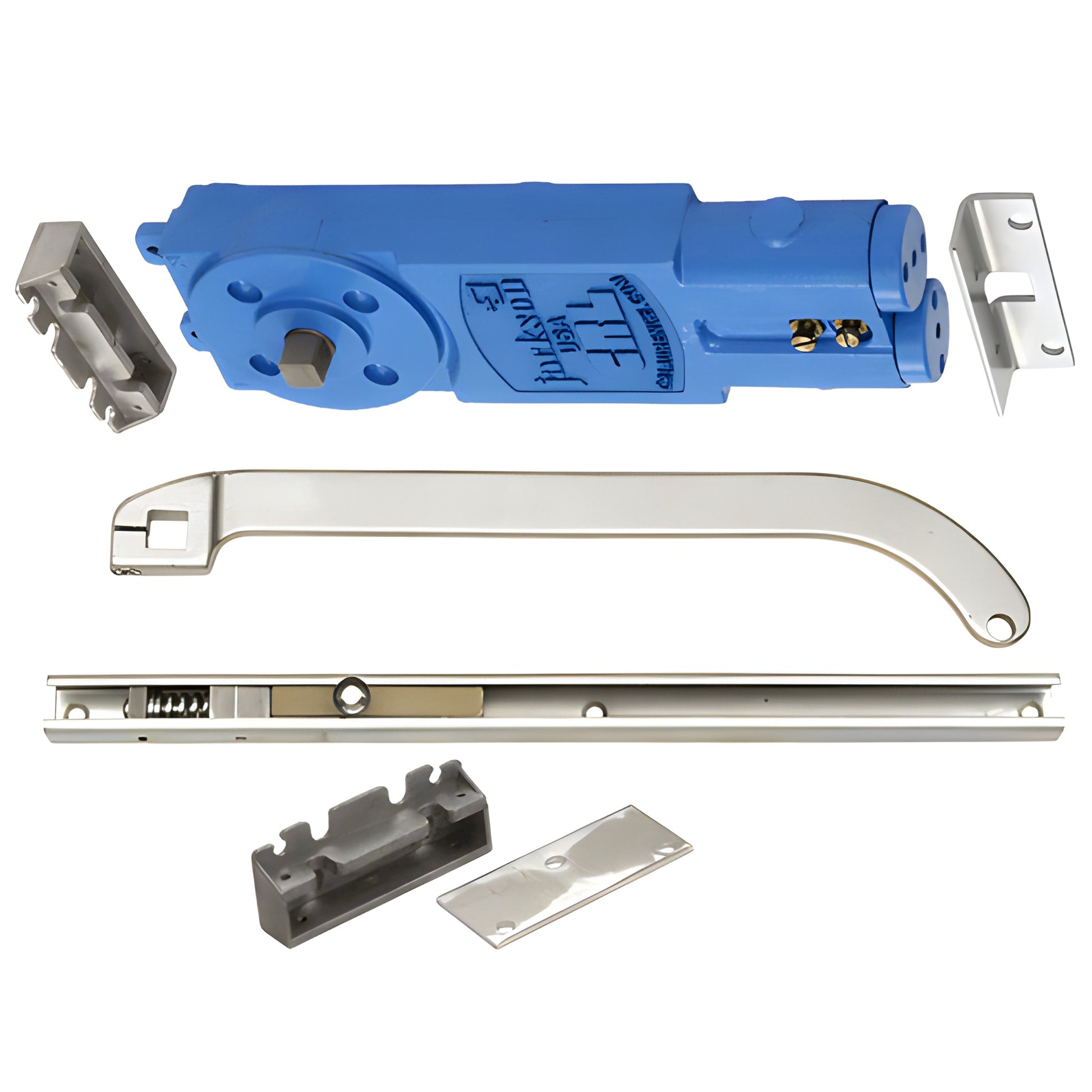

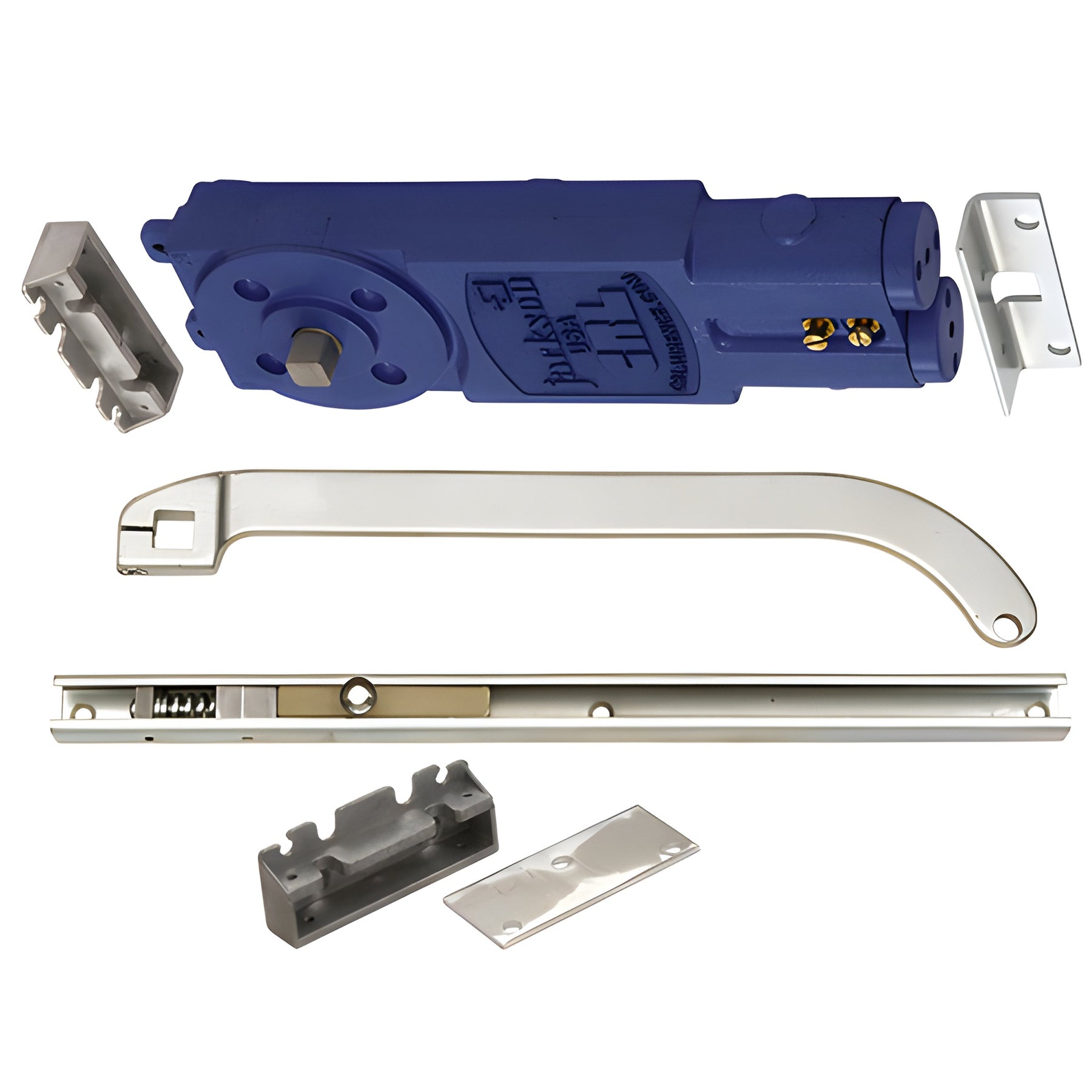

The CRL Jackson® 21201 Series Overhead Concealed Closer with "S" Offset Slide-Arm Hardware Package (SKU 21201S62817) is a concealed overhead door closer engineered for doors with 7/8" shallow top rails and standard header extrusions. This spring-power adjustable door closer—ideal for commercial and residential applications—fits doors 30" to 42" (762 mm to 1.07 m) wide and installs into 1-3/4" x 4" (or larger) headers.
Package includes Cat. No. 20951 mounting clips, 20942 offset arm package, 20368 slide channel, and complete installation instructions. Key features: dual independent valves for precise closing and latching speeds, fixed adjustable spring power multi-size, and 105º No Hold Open. U.L. listed with a five year limited warranty—an excellent choice for an overhead concealed door closer for narrow rails and retrofit applications.
Order SKU 21201S62817 or contact CRL Customer Service to confirm weight, availability, and installation guidance.
