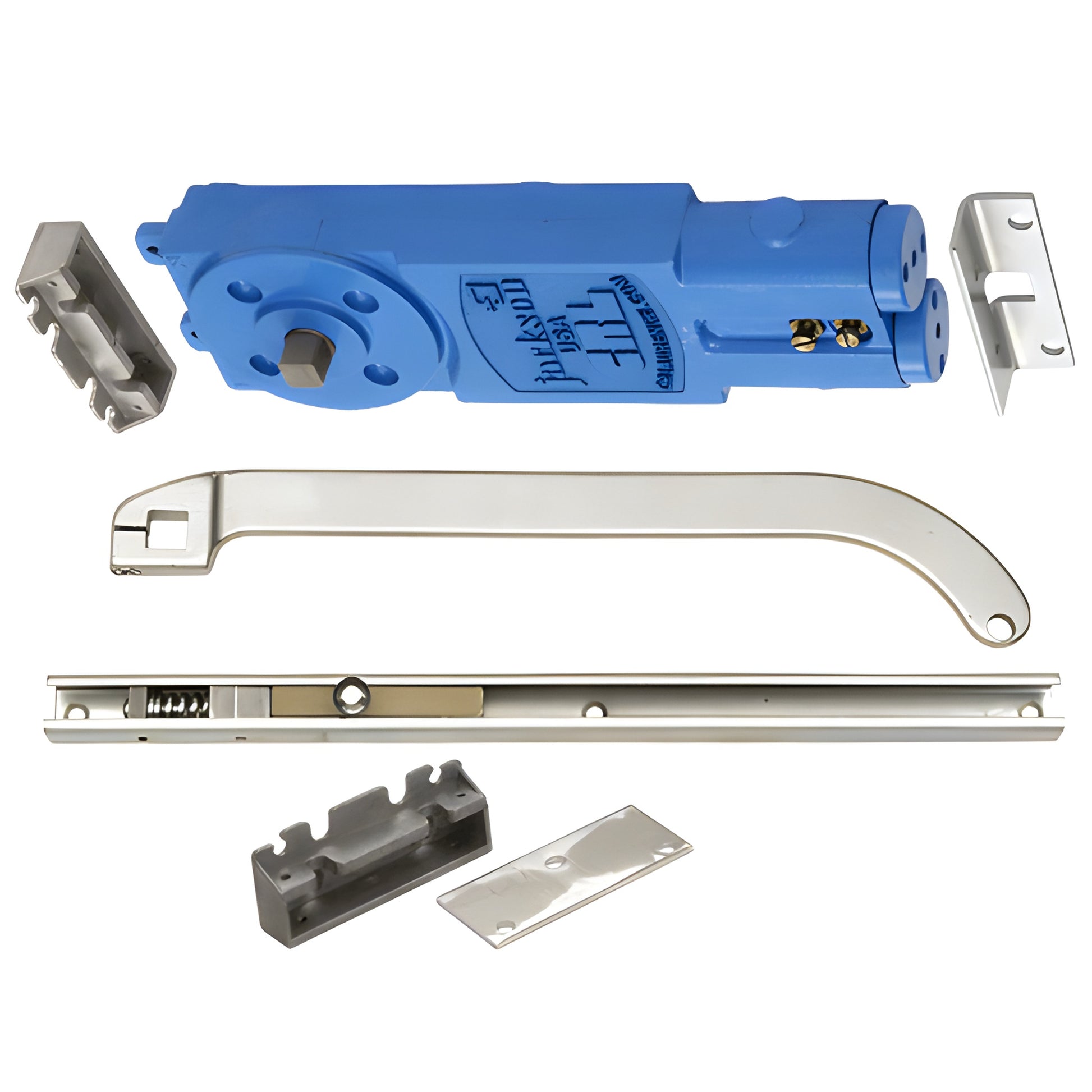

• CRL Jackson 21201S62819 overhead concealed door closer kit - blue closer body with aluminum slide arm, channel and brackets.
1 1

CRL

CRL Jackson® Satin Aluminum Concealed Door Closer S-Offset 90°

CRL Jackson® Satin Aluminum Concealed Door Closer S-Offset 90°

$468.63 CAD
$468.63 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# 21201S62819
Shipping Weight: 11.51 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Americans with Disabilities Act
Yes
Body Height
1-11/16
Body Length
11-5/8
Body Width
3-11/16
Brand
Jackson
Case Quantity
4
Closer Package
Yes
Closer Type
Overhead Concealed
Finish/Color
Aluminum
Handing
Non Handed
Includes
20101M19, 201376, 201149628, 201129
Material
Aluminum
Maximum Door Weight
250
No Hold Open
90°
Package Type
Offset Arm S
Recommended Door Type
Aluminum, Hollow Metal
Replacement Parts
20106628, 20190628, DCH4SAS, 201134LC628
Similar
21201P62817, 21201U31319
Spindle
1/2
Spring Size
Adjustable
Top Rail Depth
7/8
UL Listed
Yes

Overview

  • S Offset Slide-Arm Hardware Package for Doors with 7/8" Shallow Top Rails
  • Spring Power Adjustable Closer Suitable for Doors From 30" to 42" (762 mm to 1.07 m) Wide
  • Five Year Limited Warranty U.L. Listed
  • SKU: 21201S62819 — CRL Jackson® 21201 Series Overhead Concealed Closer

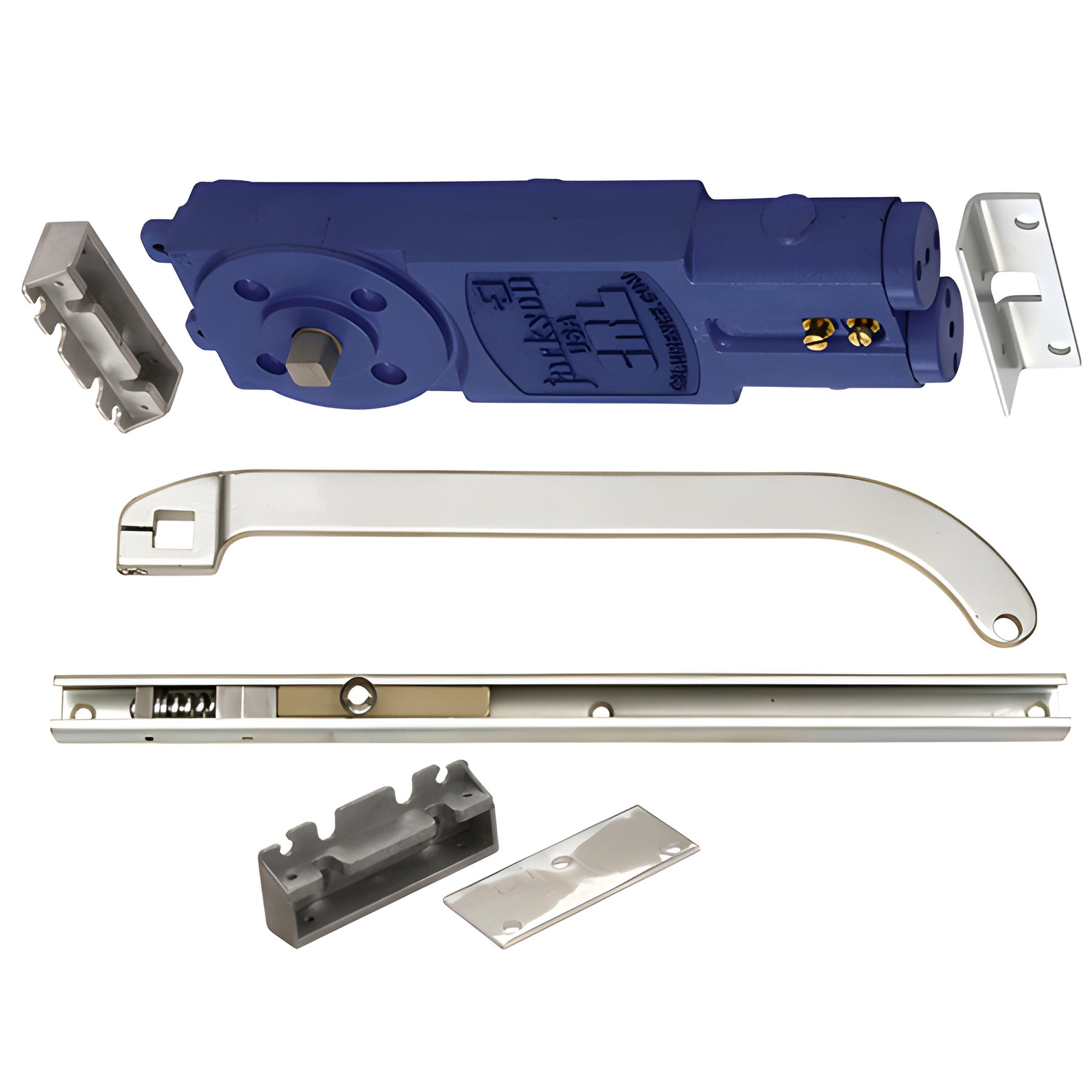

The CRL Jackson® 21201 Series Overhead Concealed Closer with "S" Offset Slide-Arm Hardware Package is a spring-power adjustable, overhead concealed door closer designed for commercial and residential glass and aluminum doors with 7/8" shallow top rails. Packaged complete with Cat. No. 20951 mounting clips, 20942 offset arm package, 20368 slide channel and installation instructions, this closer features dual independent valves for precise closing and latching speeds, 90° no-hold-open operation, and fixed adjustable multi-size spring power to cover 30"–42" (762 mm–1.07 m) door widths. Fits standard 1-3/4" x 4" (or larger) header extrusions.


Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please request this information prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation; colors can vary depending on your monitor and video card settings.


Order the SKU 21201S62819 overhead concealed closer today — contact CRL or your local distributor to confirm fit and availability.
