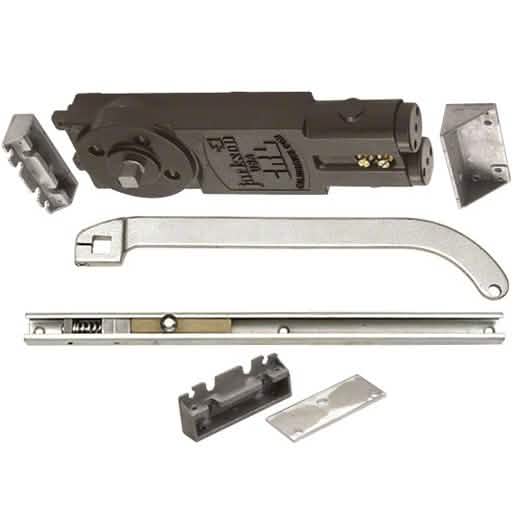

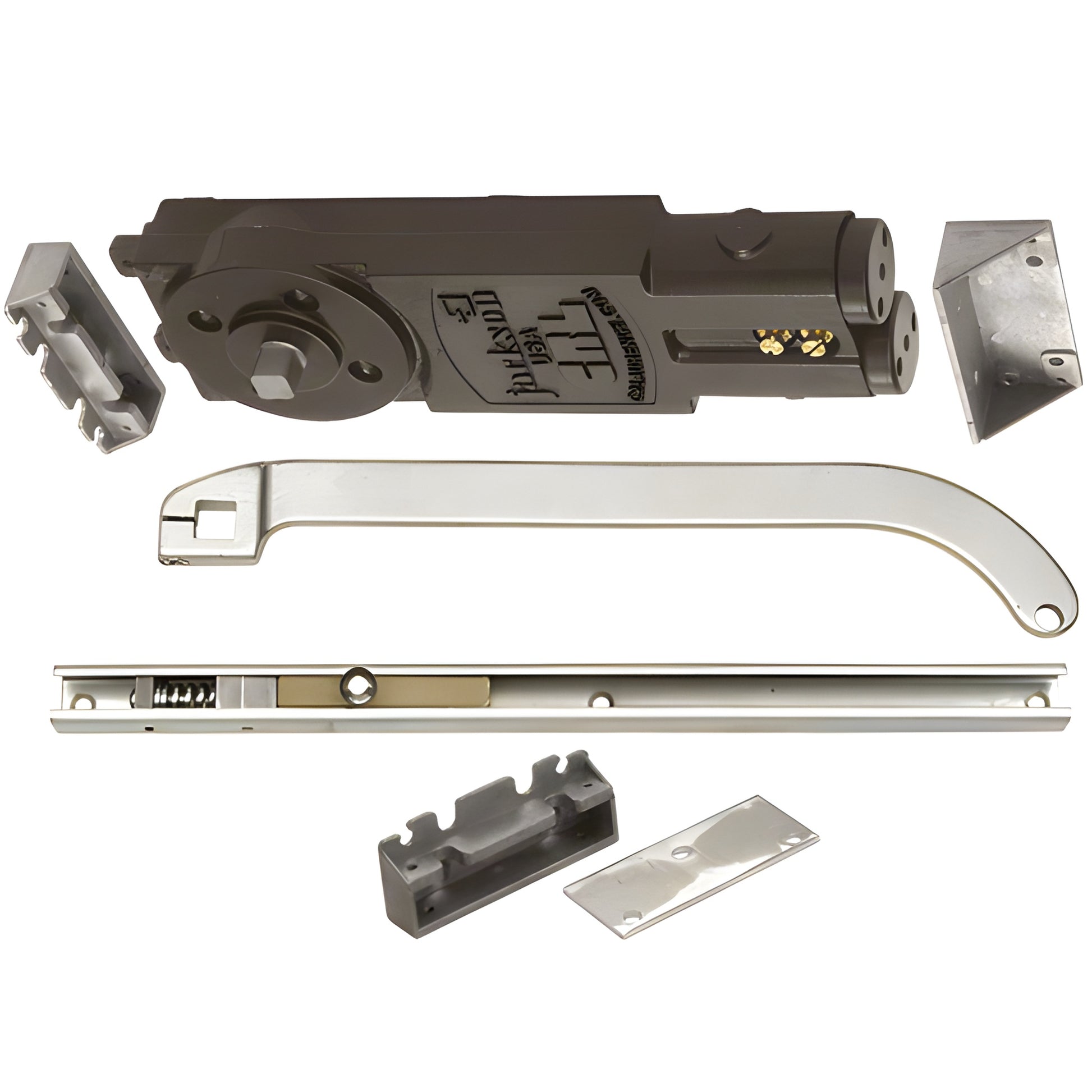

• CRL Jackson 21201U62802 overhead concealed door closer kit with U-offset arm and aluminum slide channel
1 1

CRL

CRL Jackson Concealed Overhead Door Closer 105° Hold-Open, Satin Alum.

CRL Jackson Concealed Overhead Door Closer 105° Hold-Open, Satin Alum.

$408.98 CAD
$408.98 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# 21201U62802
Shipping Weight: 11.47 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Arm Type
'U' Offset Slide-Arm
Body Height
1-11/16
Body Length
11-5/8
Body Width
3-11/16
Brand
Jackson
Case Quantity
4
Closer Type
Overhead Concealed
Finish/Color
Aluminum
Handing
Non Handed
Hold Open
105°
Includes
20101M02, 201381, 20942628, 20368
Material
Aluminum
Maximum Door Weight
250
Package Type
Offset Arm U
Recommended Door Type
Aluminum, Hollow Metal
Replacement Parts
20106628, 20190628, DCH4SAS, 20900LC628
Similar
21201S62801
Spindle
1/2
Spring Size
Regular
Top Rail Depth
7/8
UL Listed
Yes

Overview

  • 'U' Offset Slide-Arm Hardware Package for doors with 7/8" (22.2 mm) shallow top rails
  • Suitable for doors 30" to 48" (762 mm to 1.22 m) wide
  • Ten Year Limited Warranty — U.L. Listed

The CRL Jackson® 21201 Series Overhead Concealed Closer with 'U' Offset Slide-Arm Hardware Package (SKU: 21201U62802) is an overhead concealed door closer engineered for shallow top rails and narrow header applications. Packaged complete with Cat. No. 201387 mounting clips, 20942 offset arm package, 20368 slide channel, and installation instructions, this closer offers dual independent valves to adjust closing and latching speeds and a 105° hold-open using a fixed regular-duty spring size. Designed to fit standard 1-3/4" x 4" (or larger) header extrusions, it’s ideal for commercial and residential doors requiring a low-profile, fully concealed closer solution.


Most shipping weights are approximate and have not been verified. If exact weight (for shipping cost calculation) is required to complete your order, please request it prior to ordering by contacting CRL Customer Service. Product images are of the actual product or a close representation; colors may vary by monitor.


Find the CRL Jackson 21201 concealed closer for shallow top rails—order or request a quote today.
