CRL Jackson® 105° Satin Aluminum Concealed Door Closer No Hold Open
CRL Jackson® 105° Satin Aluminum Concealed Door Closer No Hold Open
Regular price
$408.98 CAD
Regular price
Sale price
$408.98 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 21201P62801
Shipping Weight: 11.42 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 11.42 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Arm Type
"P" Offset Slide
Body Height
1-11/16
Body Length
11-5/8
Body Width
3-11/16
Brand
Jackson
Case Quantity
4
Closer Type
Overhead Concealed
Finish/Color
Aluminum
Handing
Non Handed
Includes
20101M01, 201178, 201133, 201129
Material
Aluminum
Maximum Door Weight
250
No Hold Open
105°
Package Type
Offset Arm P
Recommended Door Type
Aluminum, Hollow Metal
Replacement Parts
20106628, 20190628, DCH4SAS, 201134LC628
Similar
21201A62801
Spindle
1/2
Spring Size
Regular
Top Rail Depth
5/8
UL Listed
Yes
Overview
- P Offset Slide-Arm hardware package for doors with 5/8" shallow top rails
- Suitable for doors 30" to 48" (762 mm to 1.22 m) wide
- Five-year limited warranty; U.L. listed

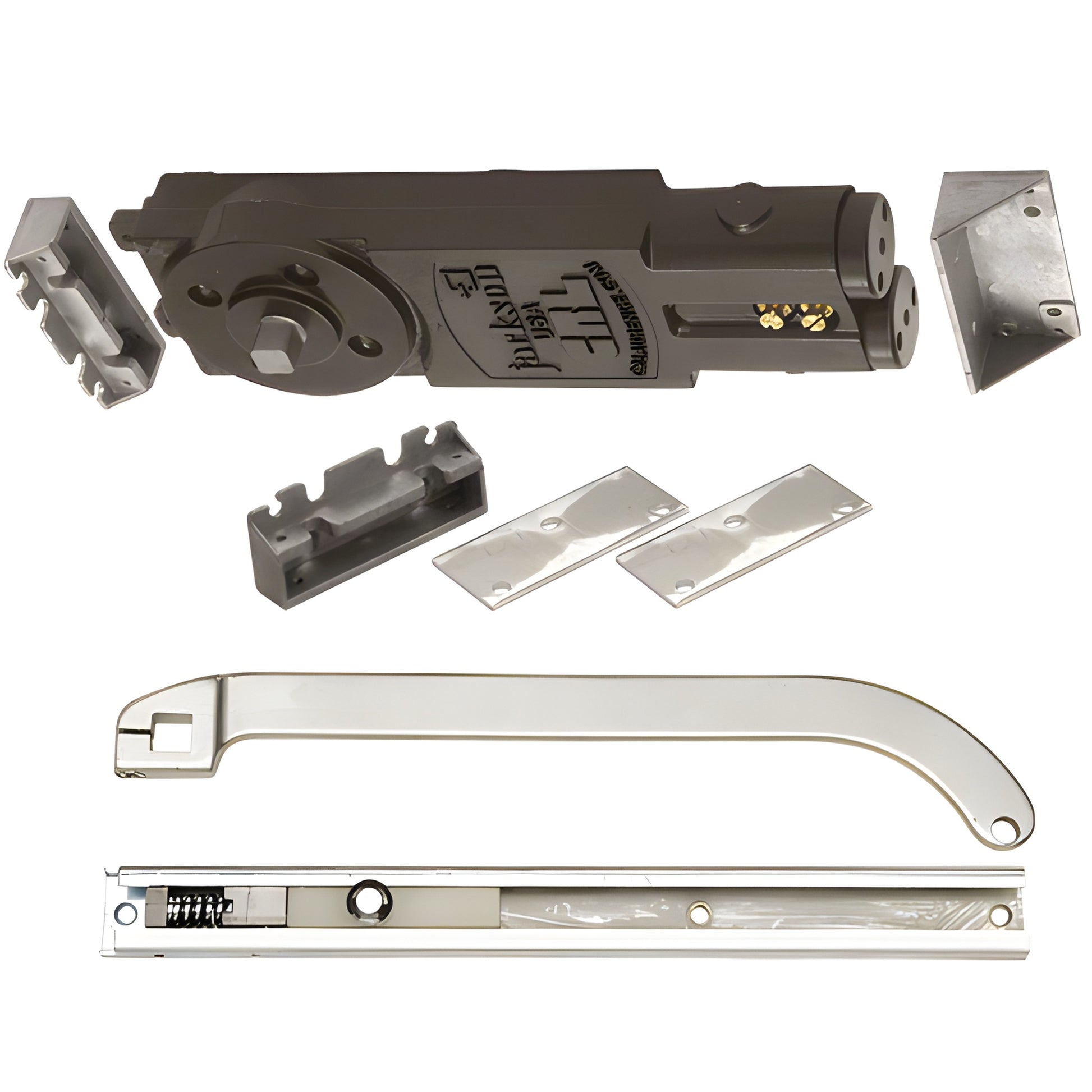

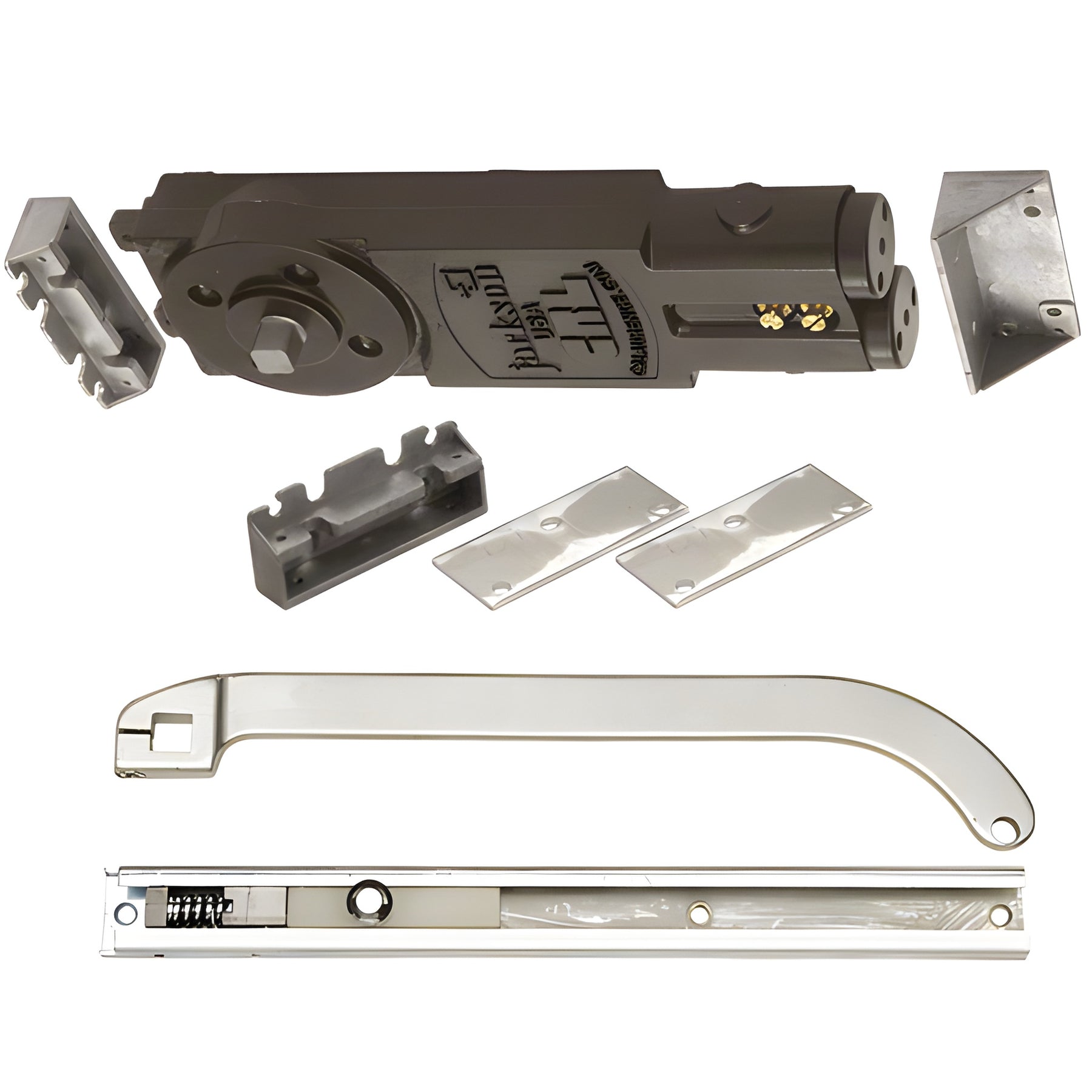

The CRL Jackson® 21201 Series overhead concealed closer with "P" offset slide-arm hardware package is an overhead concealed door closer engineered for commercial and architectural doors with shallow 5/8" top rails. Supplied complete with Cat. No. 201178 mounting clips, 201133 offset arm package, 201129 slide channel, and installation instructions, the closer fits standard 1-3/4" x 4" (or larger) header extrusions. Choose the appropriate spring size and function for doors 30"–48" (762 mm–1.22 m) wide. Key features include dual independent valves for adjustable closing and latching speeds and a 105° no-hold-open setting with a fixed regular-duty spring.
Differentiators: concealed overhead design for clean aesthetics, dual independent valves for precise speed control, UL listing, and a five-year limited warranty for long-term reliability. SKU: 21201P62801.
Order now to equip your shallow top-rail doors with a durable, concealed overhead closer.
