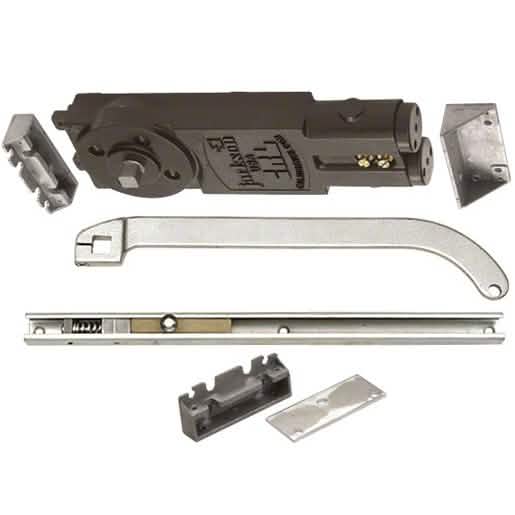

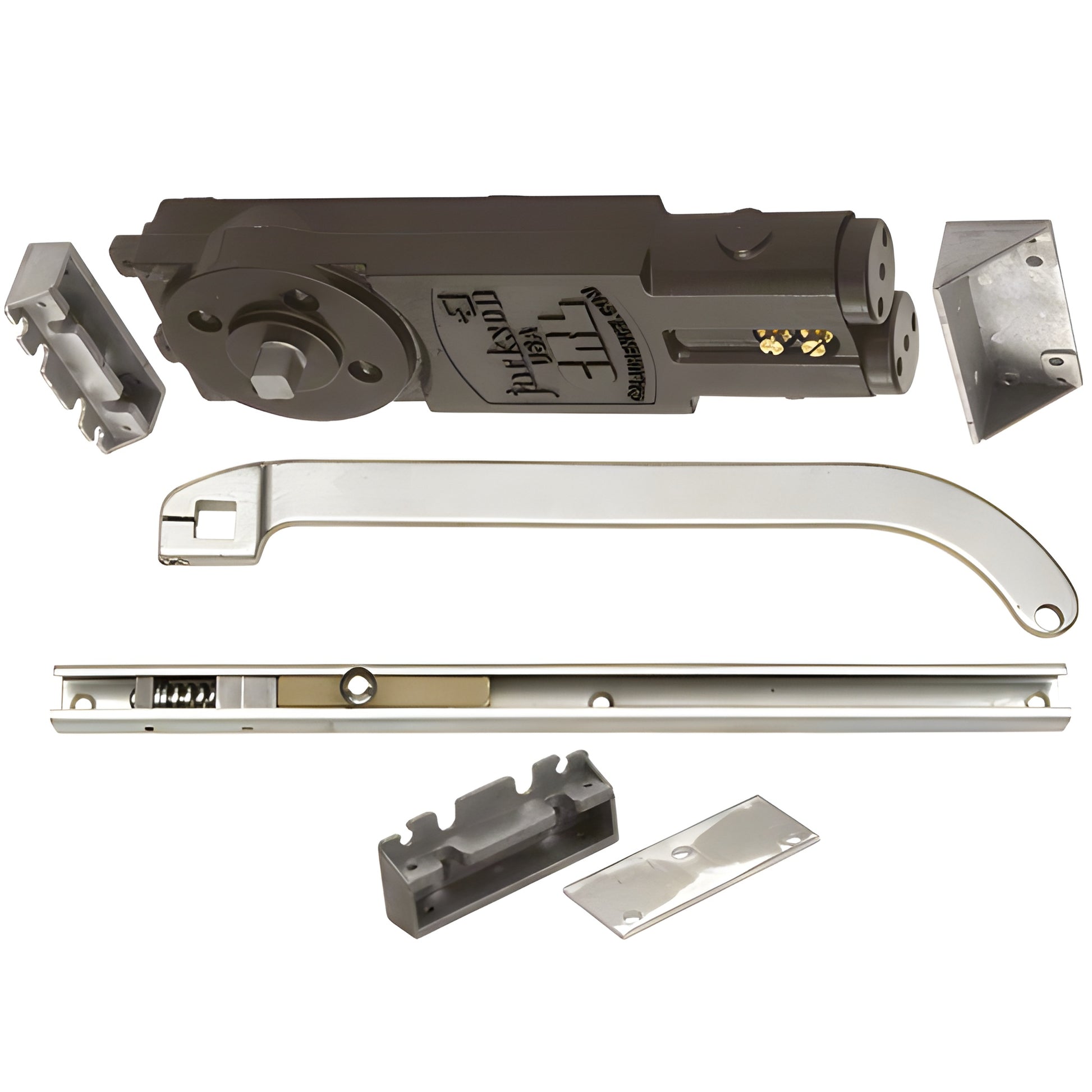

CRL Jackson® Satin Alum 90° Overhead Concealed Closer w/ U-Offset Arm
CRL Jackson® Satin Alum 90° Overhead Concealed Closer w/ U-Offset Arm
Regular price
$408.98 CAD
Regular price
Sale price
$408.98 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 21201U62803
Shipping Weight: 11.38 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 11.38 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Arm Type
'U' Offset Slide-Arm
Body Height
1-11/16
Body Length
11-5/8
Body Width
3-11/16
Brand
Jackson
Case Quantity
4
Closer Type
Overhead Concealed
Finish/Color
Aluminum
Handing
Non Handed
Includes
20101M03, 201381, 20942628, 20368
Material
Aluminum
Maximum Door Weight
250
No Hold Open
90°
Package Type
Offset Arm U
Recommended Door Type
Aluminum, Hollow Metal
Replacement Parts
20106628, 20190628, DCH4SAS, 20900LC628
Similar
21201S62819
Spindle
1/2
Spring Size
Regular
Top Rail Depth
7/8
UL Listed
Yes
Overview
- 'U' Offset Slide-Arm Hardware Package for doors with 7/8" (22.2 mm) shallow top rails
- Fits interior doors 30" to 48" (762 mm to 1.22 m) wide
- U.L. Listed with Ten-Year Limited Warranty
The CRL Jackson® 21201 Series Overhead Concealed Closer (SKU 21201U62803) is an overhead concealed closer and 'U' offset slide-arm hardware package engineered for doors with shallow 7/8" top rails. Packaged complete with Cat. No. 201387 mounting clips, 20942 offset arm package, 20368 slide channel, and full installation instructions, this closer supports door widths from 30"–48" depending on selected spring size and function.
This closer features dual independent valves for precise closing and latching speed control, 90° no hold-open with fixed regular spring size, and fits standard 1-3/4" x 4" (or larger) header extrusions—making it a reliable choice for commercial and institutional shallow-top-rail glass doors and storefronts. Long-tail benefits: overhead concealed closer for shallow rail doors, U offset slide-arm hardware for glass door headers, and UL-listed closer with extended warranty.
Order the CRL Jackson 21201 Series (SKU 21201U62803) today for a concealed overhead closer solution for shallow top rail doors.
