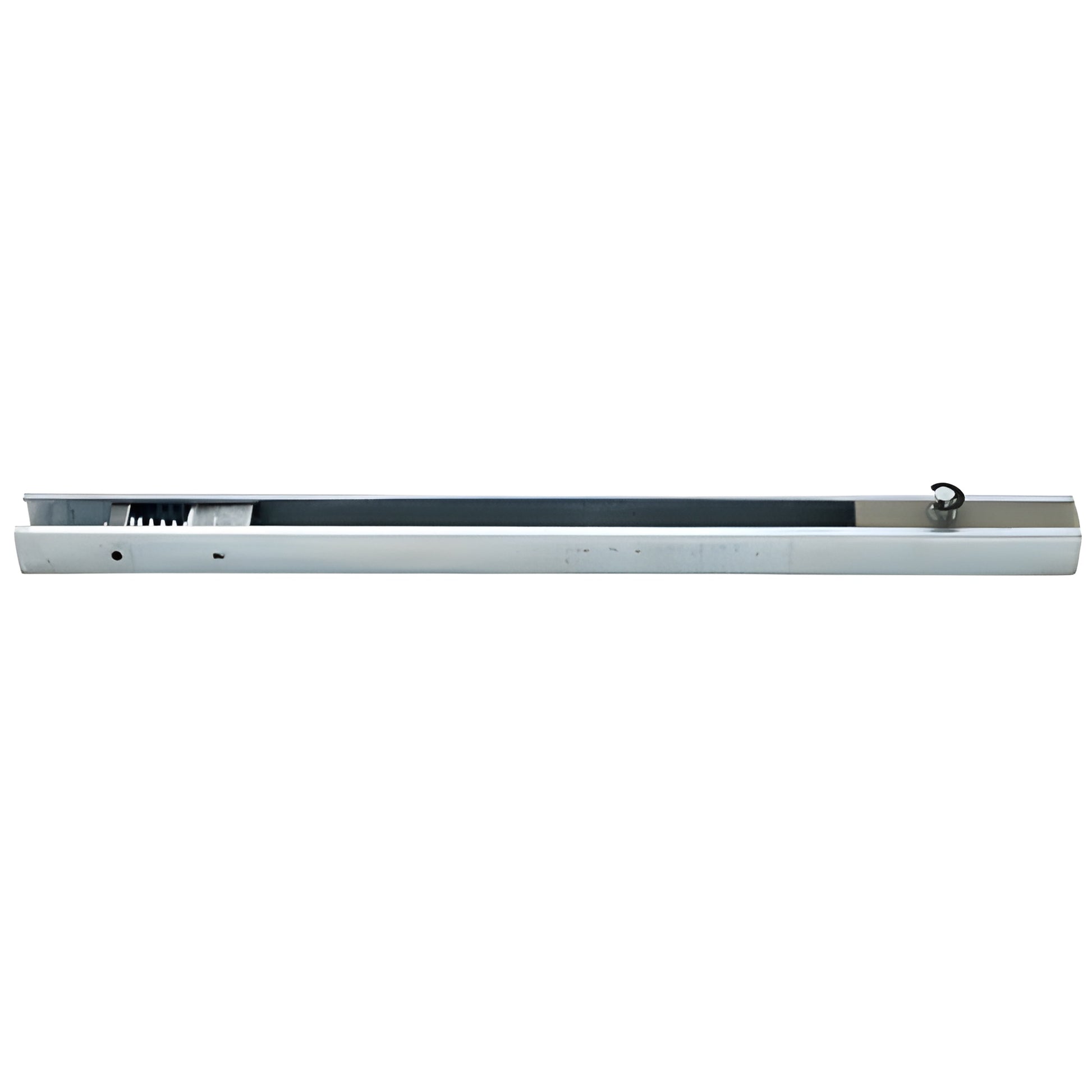

CRL Jackson® Slide Channel Assembly for Use in Offset Installation of Overhead Concealed Door Closers, Use with 20942 Offset Arm
Item # 20368
$26.95
CAD
Overview
| SKU | 20368 |
|---|---|
| Sold As | 1 Each |
| Function | Replacement Channel |
| Handing | Non Handed |
| Height | 25/32 in. (19.8 mm) |
| Includes | Slide Track,Nylon Block,Bushing,E-Clip |
| Length | 14 in. (355.6 mm) |
| Minimum Top Rail Depth | 7/8 in. (22.2 mm) |
| Mortise Type | Deep |
| Radius Corners | No |
| Recommended Door Type | Aluminum,Hollow Metal |
| Square Corners | No |
| Type | Offset Slide Channel |
| Width | 29/32 in. (23 mm) |
Description
- Application: Mortise Type - Aluminum Door
- For 7/8" (22 mm) Deep Top Rail
- Steel Construction
The 20368 Slide Channel is used in offset installation of overhead concealed door closers. For use with aluminum door and frames, the application is Mortise Type for 7/8" (22 mm) deep top rail. This slide channel is steel construction. Dimensions are: Width 29/32" (23 mm), Height 25/32" (20 mm), and Length 14" (356.5 mm). Mounting screws are included with this slide channel. Intended for use with Offset Arm 20942. Arm is not included with the 20368 slide channel. For complete slide channel and arm package see 20900LC628 and 20900LC313.
