CRL Jackson® Adjustable Spring 105º Hold Open Overhead Concealed Closer with "P" Offset Slide-Arm Hardware Package Aluminum
Item # 21201P62818
Overview
| SKU | 21201P62818 |
|---|---|
| Sold As | 1 Each |
| Americans with Disabilities Act | Yes |
| Body Height | 1-11/16 |
| Body Length | 11-5/8 |
| Body Width | 3-11/16 |
| Brand | Jackson |
| Closer Type | Overhead Concealed |
| Finish/Color | Aluminum |
| Handing | Non Handed |
| Hold Open | 105° |
| Includes | 20101M18, 201178, 201133628, 201129 |
| Material | Aluminum |
| Maximum Door Weight | 250 |
| Package Type | Offset Arm P |
| Recommended Door Type | Aluminum, Hollow Metal |
| Replacement Parts | 20106628, 20190628, DCH4SAS, 201134LC628 |
| Similar | 21201A62818 |
| Spindle | 1/2 |
| Spring Size | Adjustable |
| Top Rail Depth | 5/8 |
| UL Listed | Yes |
Description
- P Offset Slide-Arm Hardware Package for Doors with 5/8" Shallow Top Rails
- Suitable for Doors From 30" to 48" (762 mm to 1.22 m) Wide
- 5 Year Limited Warranty

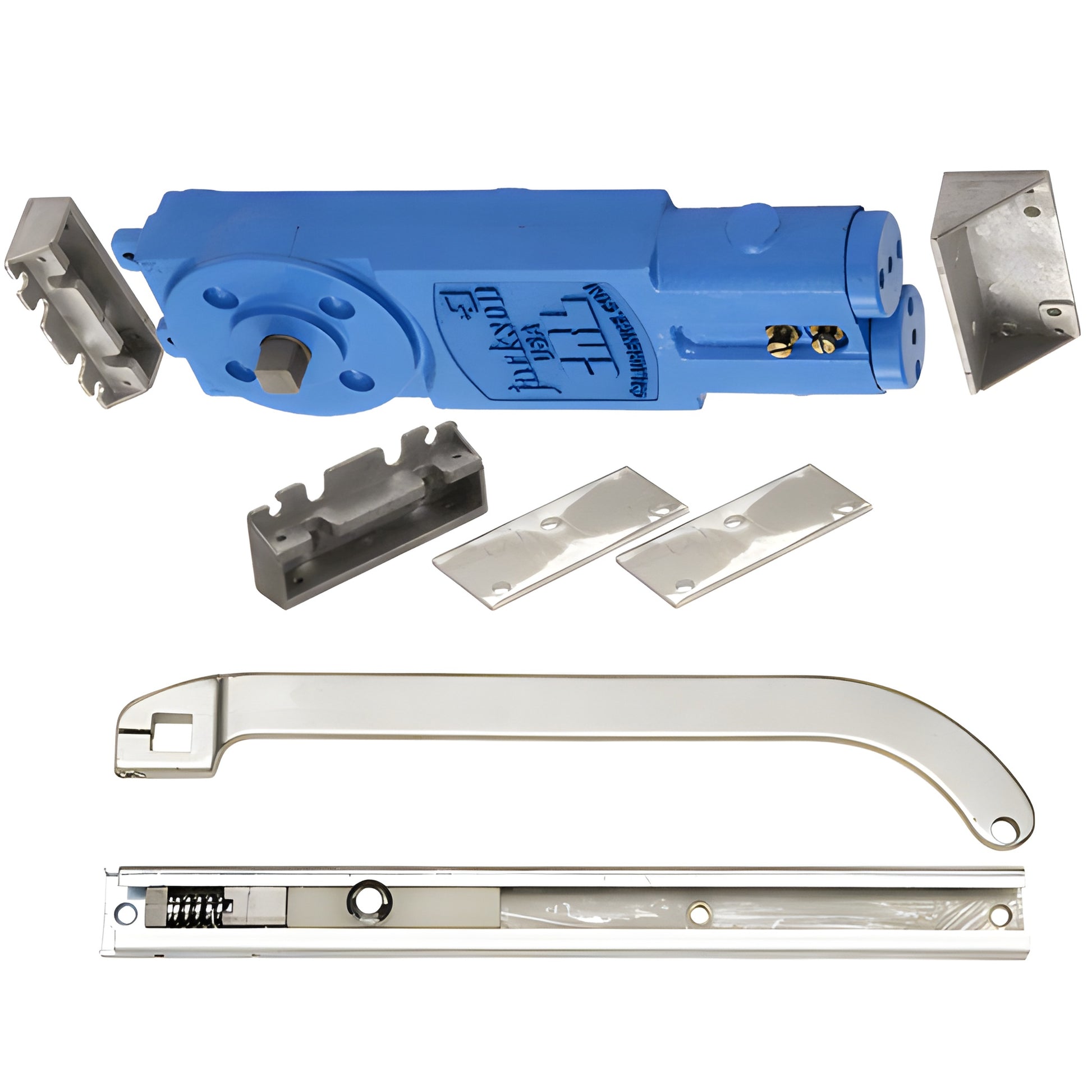

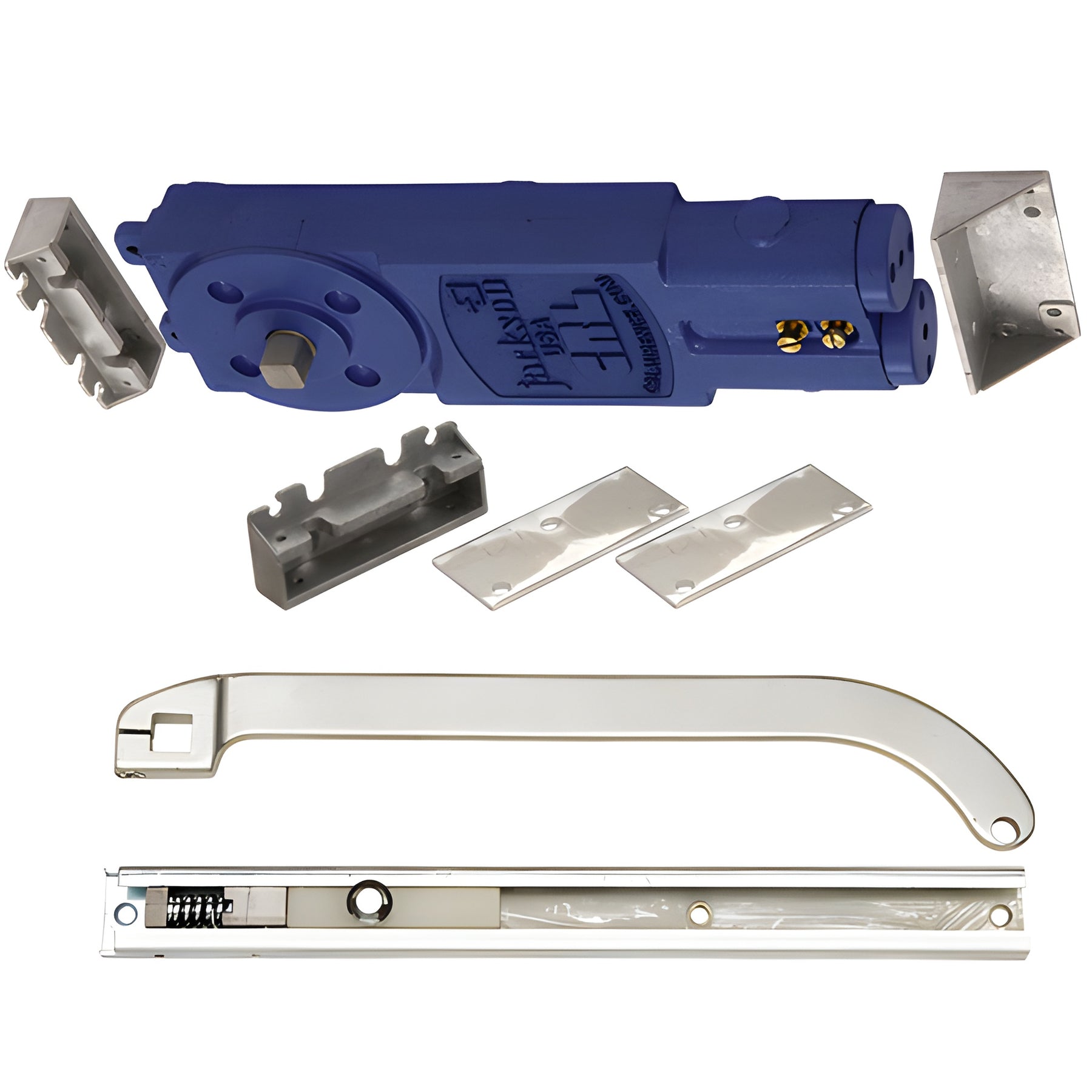

The CRL Jackson® 21201 Series Overhead Concealed Closer with "P" Offset Slide-Arm Hardware Package consists of a Closer mechanism, which depending on the selected spring size and function, is suitable for a range of doors from 30" to 48" (762 mm to 1.22 m) wide. The Closer is packaged complete with Cat. No. 201178 Mounting Clips, 201133 Offset Arm Package, 201129 Slide Channel, and complete installation instructions. The Closer has dual independent valves for closing and latching speeds. 105º Hold Open with fixed adjustable power multi size. Door Closers fit into standard 1-3/4" x 4" (or larger) header extrusions.
Specifications
Installation Instructions
CRL Jackson® Adjustable Spring 105º Hold Open Overhead Concealed Closer with "P" Offset Slide-Arm Hardware Package Aluminum
21201P62818
